Setting up the Configuration
Environment
222
A.1
Setting up a DHCP/BOOTP Ser-
ver
Basic Config
uration
Release
6.0
07/2010

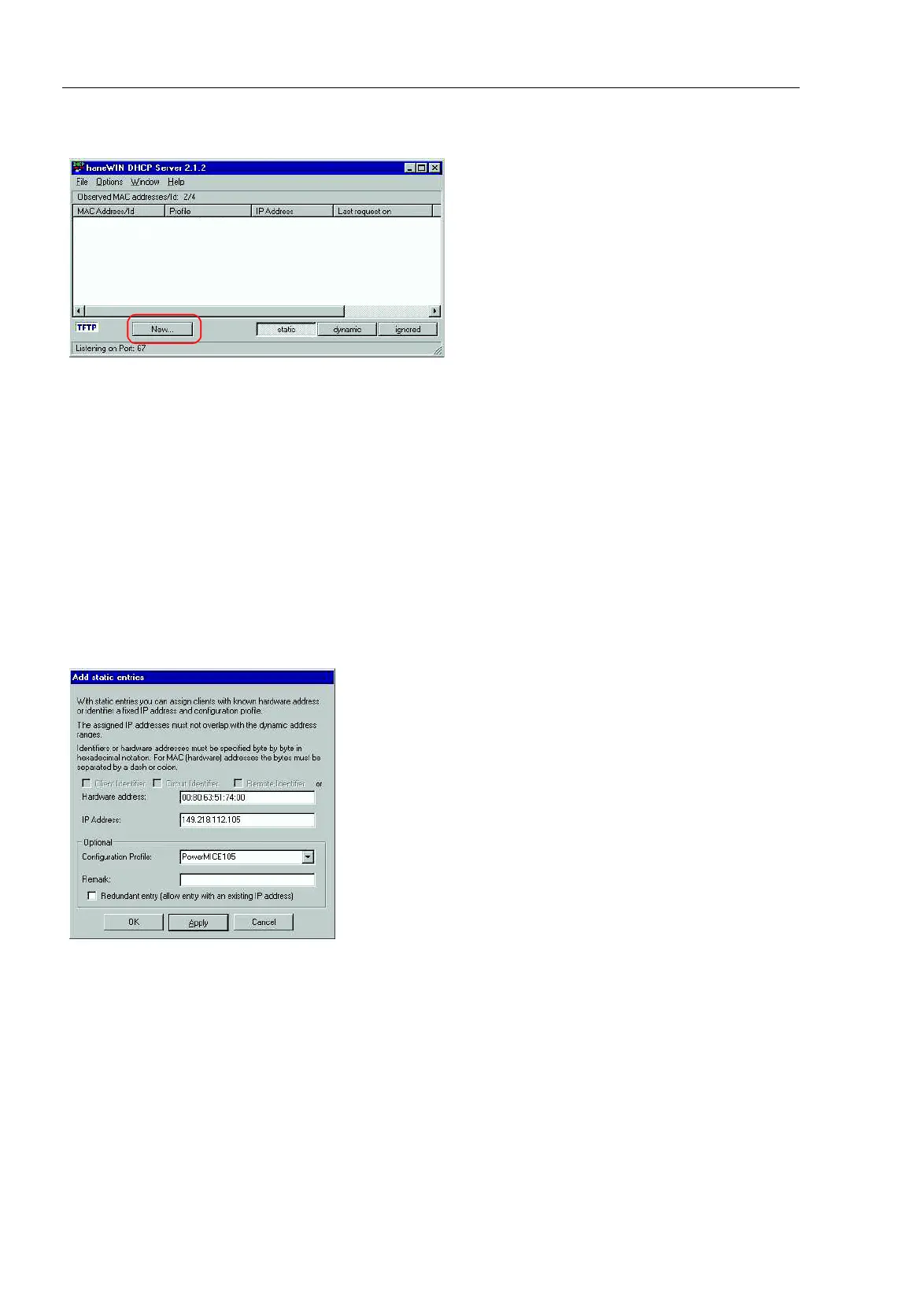

Figure 67:
Adding static addresses
Enter the MAC address of the device.
Enter the IP addre
ss of the device.
Select the configurati
on profile of the device.
Cl
ick
Apply
and then
OK
.
Figure 68:
Entries for st
atic addresses
Add an entry for each device that wi
ll get its parameters from the DHCP
server.
221
223
Table of Contents
Table of Contents
3
About this Manual
9
About this Manual
10
Key
11
Introduction
13
Access to the User Interfaces
15
System Monitor
16
Command Line Interface
18
Web-Based Interface
21
Entering the IP Parameters
25
IP Parameter Basics
27
IP Address (Version 4)
27
Netmask
28
Classless Inter-Domain Routing
31
Entering IP Parameters Via CLI
33
Entering the IP Parameters Via Hidiscovery
36
Loading the System Configuration from the ACA
39
System Configuration Via BOOTP
41
System Configuration Via DHCP
46
System Configuration Via DHCP Option
49
Web-Based IP Configuration
50
Faulty Device Replacement
52
Loading/Saving Settings
53
Loading Settings
54
Loading from the Local Non-Volatile Memory
55
Loading from the Autoconfiguration Adapter
55
Loading from a File
56
Resetting the Configuration to the State on Delivery
58
Saving Settings
59
Saving Locally (and on the ACA)
59
Saving to a File on URL
60
Saving to a Binary File on the PC
61
Saving as a Script on the PC
62
Loading Software Updates
63
Loading the Software
64
Loading the Software Manually from the ACA
65
Selecting the Software to be Loaded
66
Starting the Software
67
Performing a Cold Start
67
Automatic Software Update by ACA
68
Loading the Software from the Tftp Server
70
Loading the Software Via File Selection
72
Configuring the Ports
73
Configuring Power over Ethernet
74
Protection from Unauthorized Access
77
Protecting the Device
78
Password for SNMP Access
79
Description of Password for SNMP Access
79
Entering the Password for SNMP Access
80
Telnet/Web/Ssh Access
84
Description of Telnet Access
84
Description of Web Access
84
Description of SSH Access
85
Enabling/Disabling Telnet/Web/Ssh Access
85
Restricted Management Access
87
Hidiscovery Access
89
Description of the Hidiscovery Protocol
89
Enabling/Disabling the Hidiscovery Function
89
Port Authentication IEEE 802.1X
94
Description of Port Authentication According to
94
Authentication Process According to IEEE 802.1X
95
Preparing the Device for the IEEE 802.1X Port Authentication
95
IEEE 802.1X Settings
96
Synchronizing the System Time in the Network
97
Entering the Time
98
Sntp
100
Description of SNTP
100
Preparing the SNTP Configuration
101
Configuring SNTP
102
Precision Time Protocol
106
Description of PTP Functions
106
Preparing the PTP Configuration
110
Application Example
112
Interaction of PTP and SNTP
117
Network Load Control
119
Direct Packet Distribution
120
Store-And-Forward
120
Multi-Address Capability
120
Aging of Learned Addresses
121
Entering Static Addresses
122
Disabling the Direct Packet Distribution
123
Multicast Application
125
Description of the Multicast Application
125
Example of a Multicast Application
126
Description of IGMP Snooping
127
Setting IGMP Snooping
128
Parameter Values
130
Description of GMRP
133
Setting GMRP
135
Rate Limiter
137
Description of the Rate Limiter
137
Rate Limiter Settings (Powermice and MACH 4000)
138
Rate Limiter Settings for RS20/RS30/40, MS20/MS30, RSR20/RSR30
139
MACH 100, MACH 1000 and OCTOPUS
139
RS20/RS30/40, MS20/MS30, RSR20/RSR30 MACH 100, MACH 1000 and OCTOPUS
139
Qos/Priority
141
Description of Prioritization
141
VLAN Tagging
142
IP Tos / Diffserv
144
Differentiated Services
145
Management Prioritization
148
Handling of Received Priority Information
148
Handling of Traffic Classes
149
Setting Prioritization
149
Flow Control
154
Description of Flow Control
154
Setting the Flow Control
156
Vlans
157
VLAN Description
157
Examples of Vlans
158
Operation Diagnosis
175
Sending Traps
176
List of SNMP Traps
177
SNMP Traps During Boot
178
Configuring Traps
179
Monitoring the Device Status
181
Configuring the Device Status
182
Displaying the Device Status
183
Out-Of-Band Signaling
184
Controlling the Signal Contact
185
Monitoring the Device Status Via the Signal Contact
185
Monitoring the Device Functions Via the Signal Contact
186
Monitoring the Fan
187
Port Status Indication
190
Event Counter at Port Level
191
Detecting Non-Matching Duplex Modes
192
Displaying the SFP Status
196
TP Cable Diagnosis
197
Topology Discovery
198
Description of Topology Discovery
198
Displaying the Topology Discovery Results
200
Detecting IP Address Conflicts
203
Description of IP Address Conflicts
203
Configuring ACD
204
Displaying ACD
205
Detecting Loops
206
Reports
207
Monitoring Data Traffic at Ports (Port Mirroring)
209
Syslog
212
Event Log
215
A Setting up the Configuration Environment
217
B General Information
239
Index
247
D Further Support
251
Table of Contents
255
Safety Instructions
257
General Safety Instructions
259
Legend
262
1 Device Description
263
Description of the Device Variants
264
MACH 100 Basic Device
264
MACH 100 Media Modules
268
SFP Modules
270
2 Assembly and Start-Up
272
Installing the Device
272
Unpacking and Checking
272
Installing the Media Modules
272
Installing the SFP Modules
273
Signal Contact „FAULT
274
Dimension Drawings
275
Installing the Device and Grounding
276
Supply Voltage
279
Startup Procedure
280
Installing the Data Lines
280
Display Elements
282
Making Basic Settings
284
Port State
284
Default Settings
284
Usb Interface
285
Disassembly
286
Disassembling the Device
286
3 Technical Data
287
Scope of Delivery
290
Weitere Unterstützung
293
