Setting up the Configuration
Environment
Basic Configuration
Release
6.0
07/2010
A.2
Setting up a DHCP Server with
Option 82
225

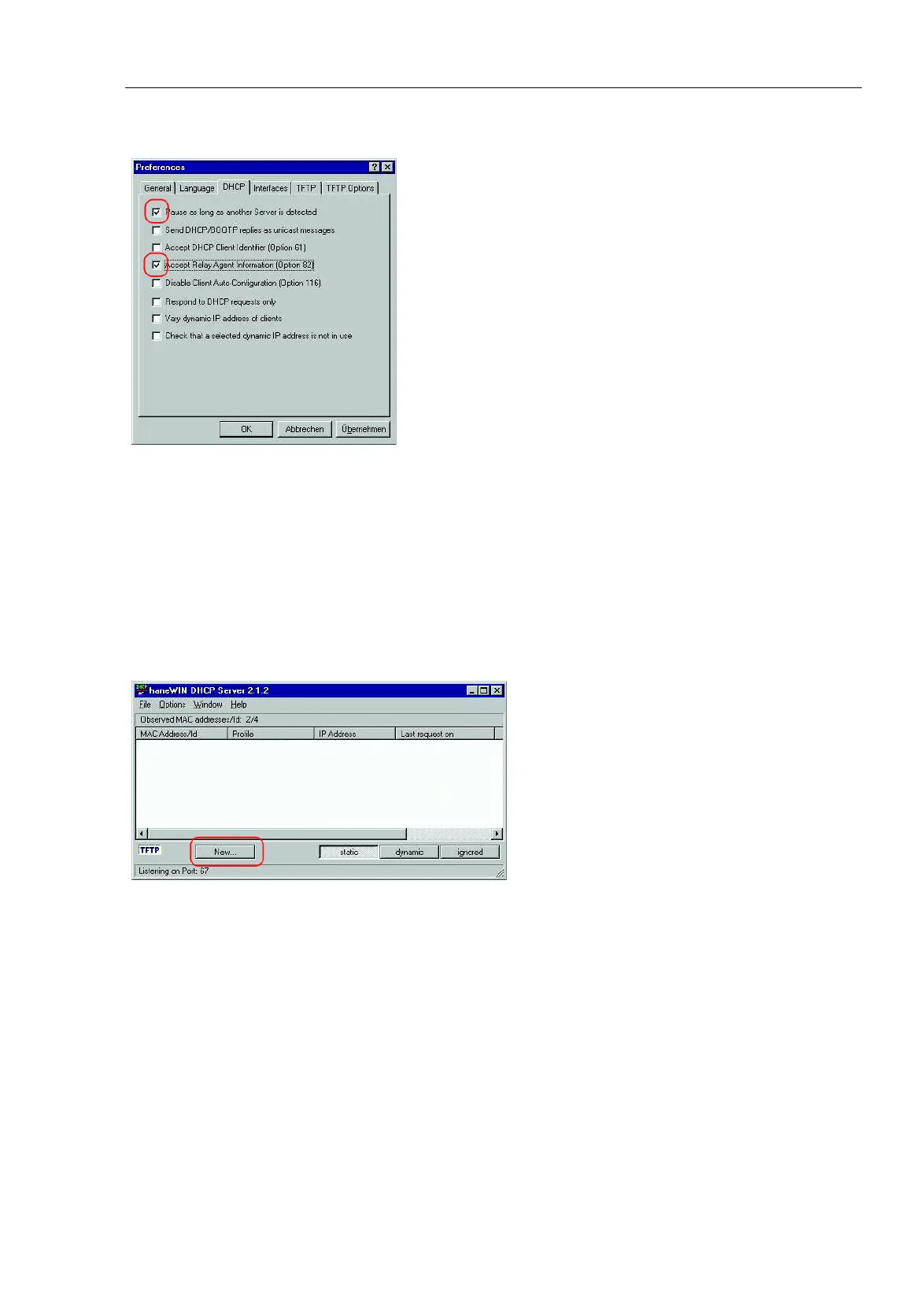

Figure 71:
DHCP setting
To enter the static addresses, click
New
.
Figure 72:
Adding static addresses
Select
Circuit Identifier
and
Remote Identifier
.
224
