MACH 100
Release
07/09
25
Warning
If the device is installed in a 19" switch cabinet without sliding/
mounting rails, increased vibration can cause damage to the de-
vice and/or its modules.
For more information on sliding/mounting rails and how to install them,
please contact your switch cabinet manufacturer.
Install the sliding/mounting rails in the 19" switch cabinet as instructed
by the manufacturer, and make sure the device is resting on both rails.

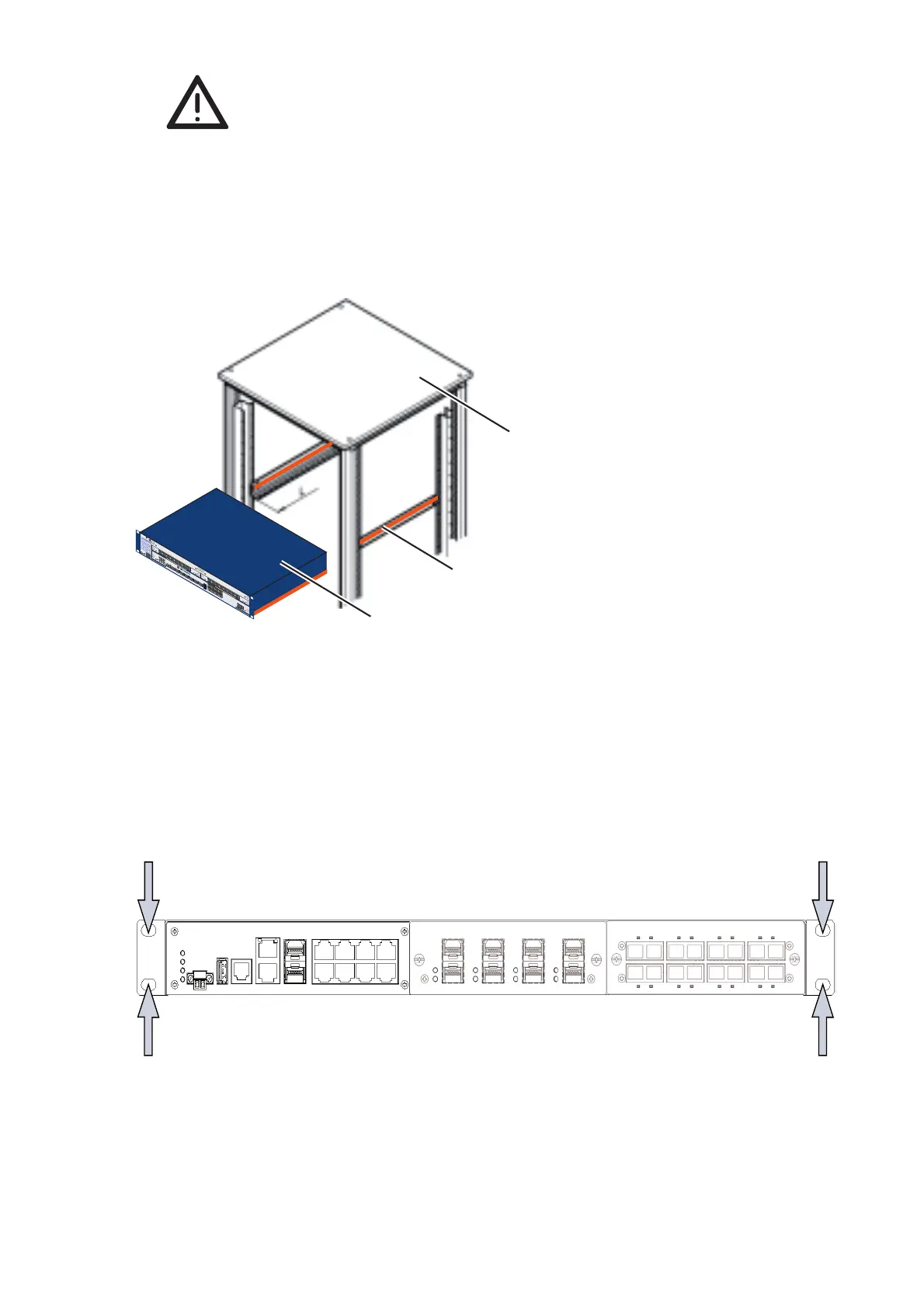

Figure 14: Installation in the switch cabinet with sliding/mounting rails
1 - MACH 100 device
2 - Chassis runner
3 - 19“ rack
On delivery, two brackets are attached to the sides of the device (see
figure below).
Figure 15: Mounting the MACH 100 in the 19" cabinet
Fasten the device by screwing the brackets to the switch cabinet.
