Loading Software Updates
Basic Configuration
Release
6.0
07/2010
4.3
Loading the software from the tftp
server
71
Enter the path of the device software.
Click on "Update" to load the software from the tftp server to the
device.

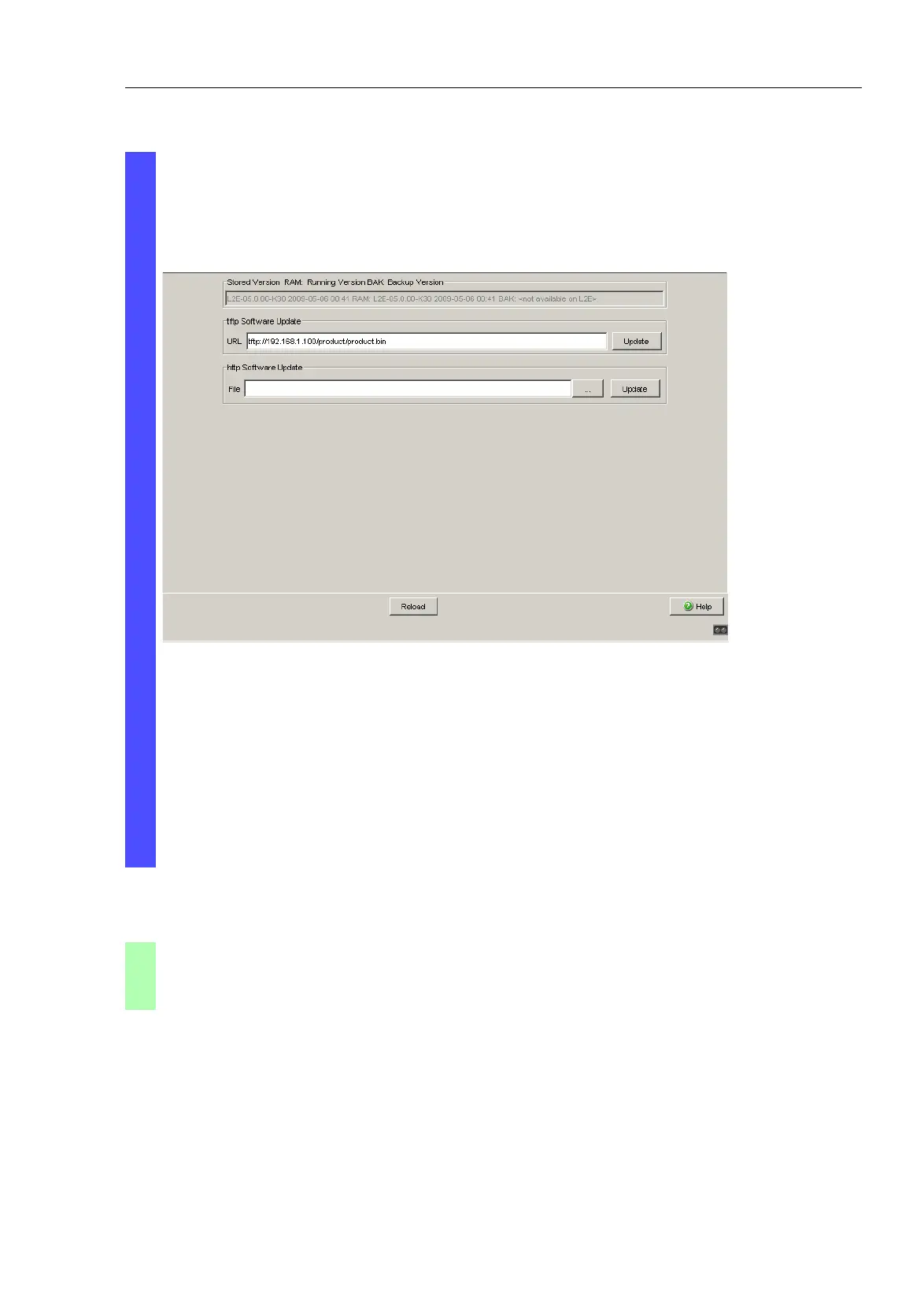

Figure 19: Software update dialog
After successfully loading it, you activate the new software: Select
the dialog Basic Settings:Restart and perform a cold start.
In a cold start, the device reloads the software from the non-volatile
memory, restarts, and performs a self-test.
After booting the device, click "Reload" in your browser to access the
device again.
enable Switch to the Privileged EXEC mode.
copy tftp://10.0.1.159/
rsL2E.bin system:image
Transfer the "rsL2E.bin" software file to the device
from the tftp server with the IP address 10.0.1.159.
