⑤Remove vision hole cover of left front cover .See figure 2-29

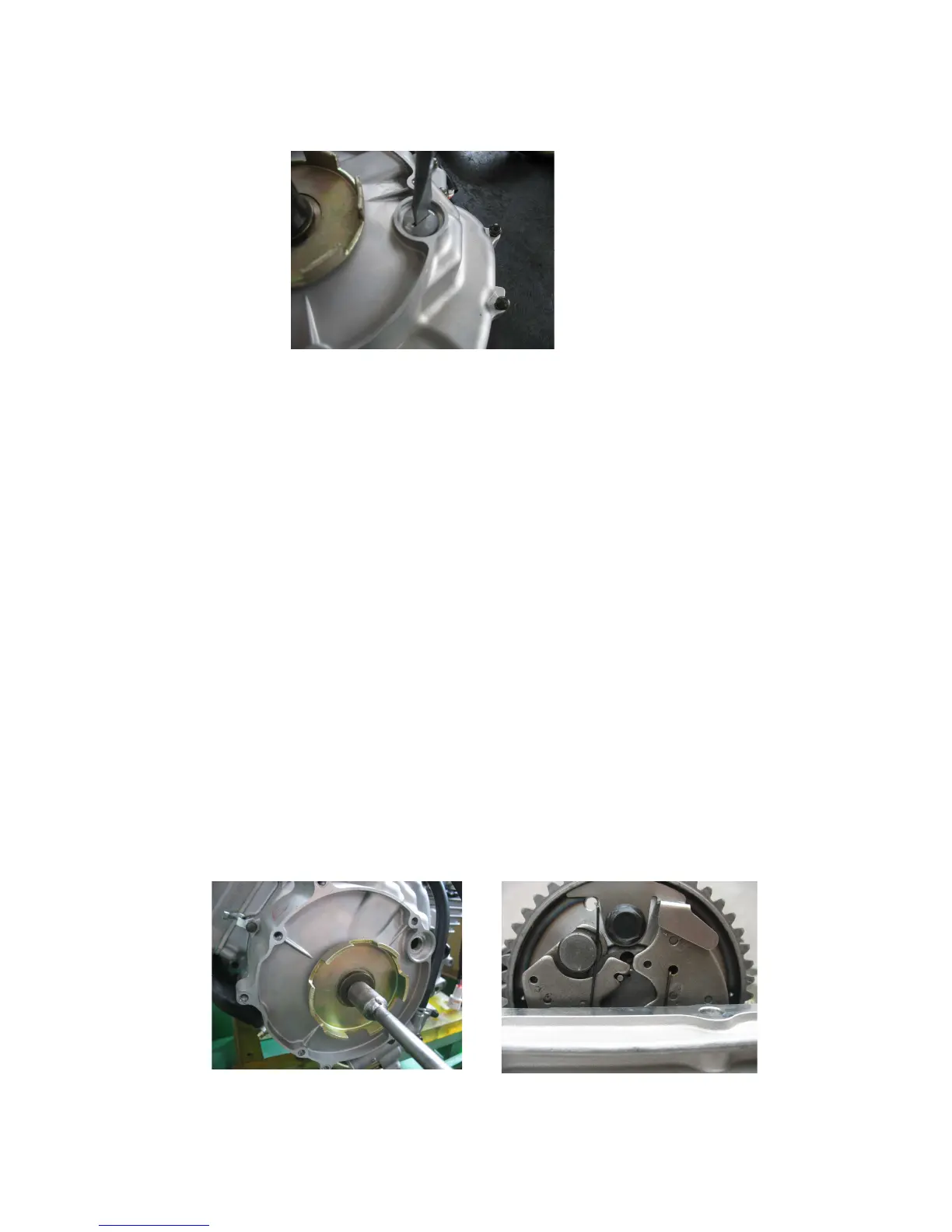

Figure 2-29
Alignment: asjust these two ＂●＂symbols of the cam chain
wheel to be at the same level with cylinder cover.
alignmentment of top dead center:
Rorate the crankshaft with “T” sleeve anti-clockwise
until these two ＂●＂symbols of the cam chain wheel to be
at the same level with cylinder cover .That is to say the
piston of cylinder is at the top dead center.
Inspection of compression top dead center:
See figure 2-30-1 and figure 2-30-2.
figure 2-30-1 figure 2-30-2.
