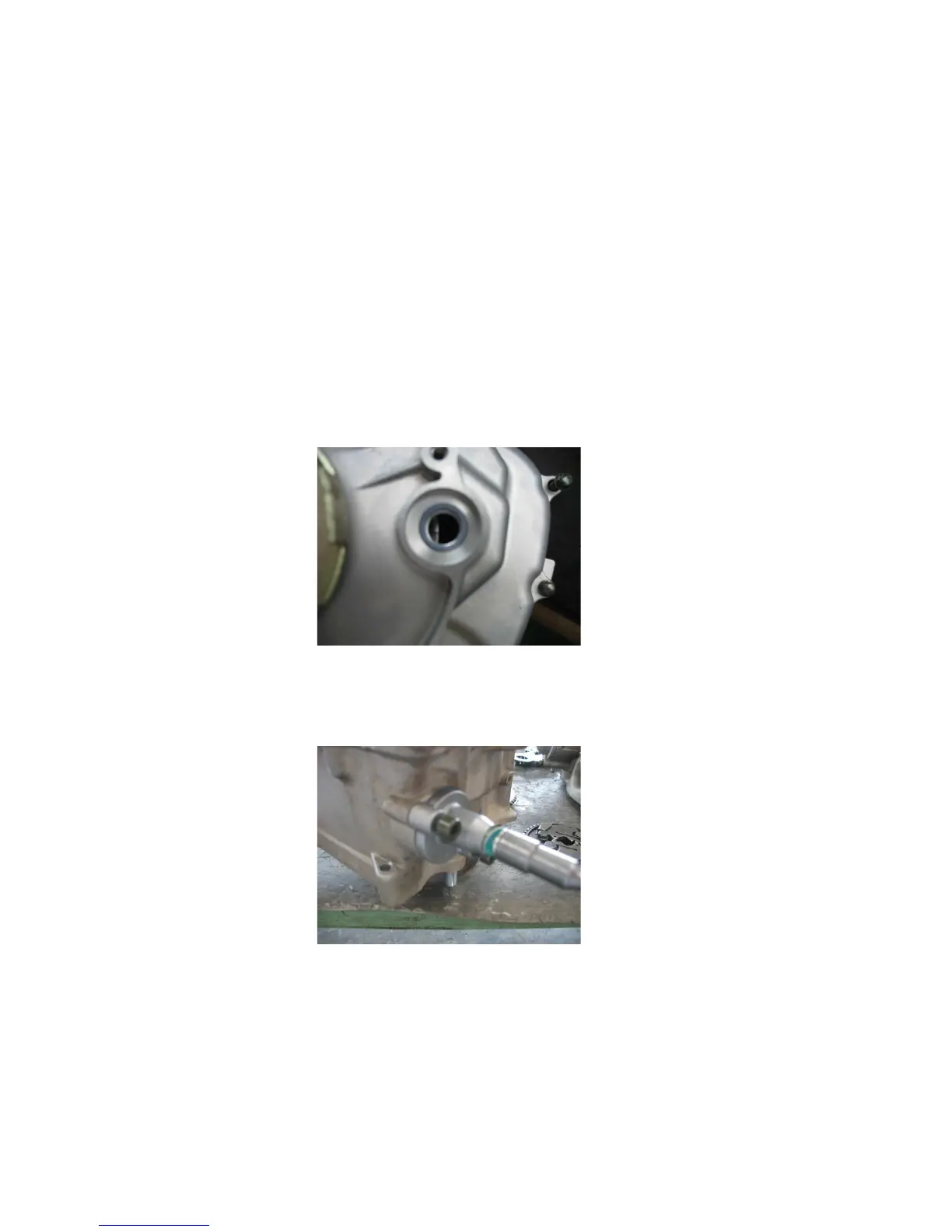

When inlet valve spring rise,rotate the crankshaft until
the “T” indicator on the magneto rotor to be at the same
level with the center of vision hole cover of left front
cover.That is to say the piston is at the compression top
dead center and there are valve clearance in these four
rocker arms of cylinder head. See figure 2-31
Figure 2-31
Remove chain tensioner adjuster.See figure 2-32.
Figure 2-32
remove the cylinder head
Loosen the bolt by intersection manner before remove the
