Attached figure 4-1-4
1. Front panel
2. Connecting cover parts
3. steering wheel center covers
4. panel
5. steering wheel
2、 Take down the steering wheel(Attached figure4-1-4)
3、Loose the M bolt which is on the steering drive axle,
the top of splinet, draws out the cross gimbal.
4 、 Loose the fastening four piece M8 × 16bolt on the
steering column,take down the steering column from the
frame.((Attached figure4-1-5)

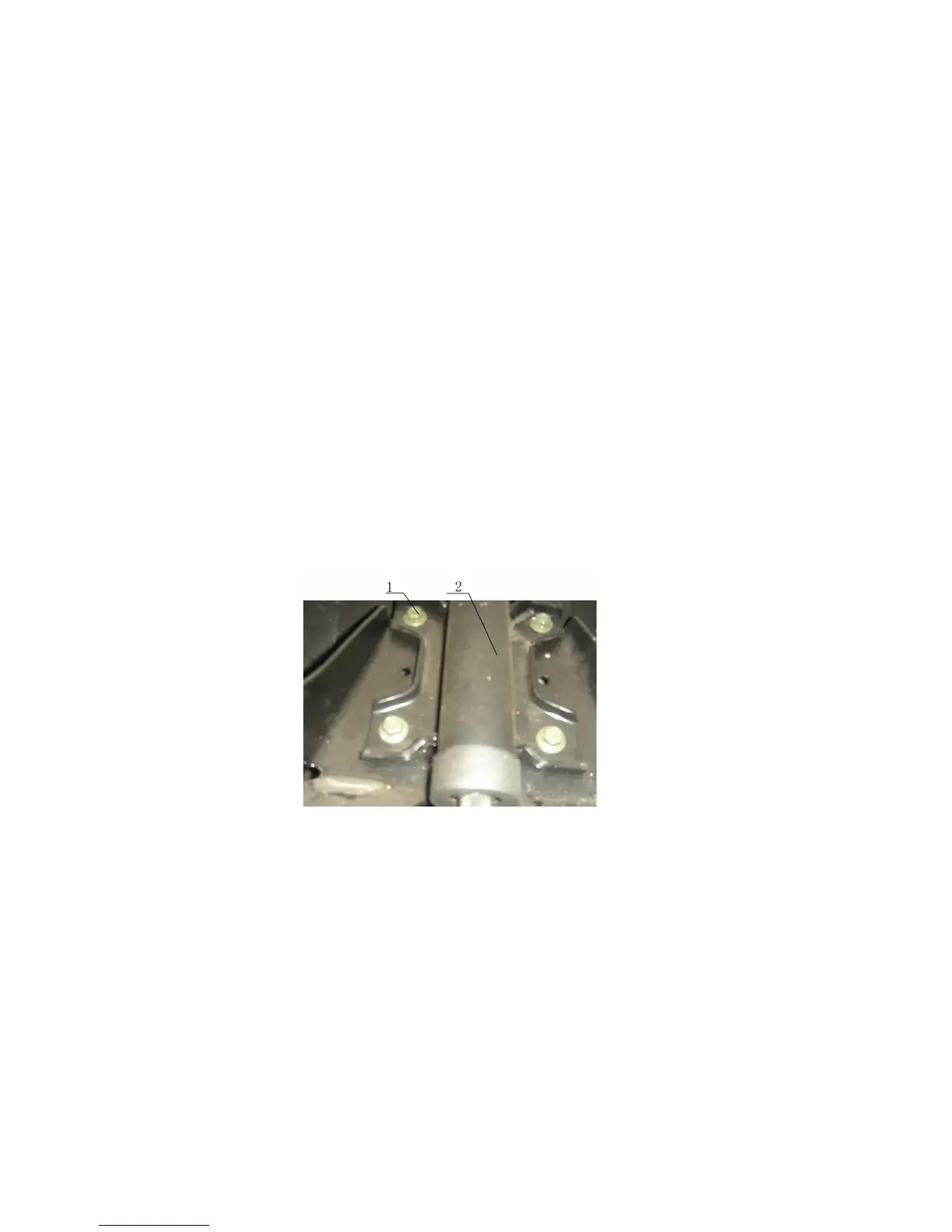

(Attached figure4-1-5)
1. Flange nut M8×16
2. Steering column parts
3、Frame
4.1.1.4 Inspection and maintain the steering column
parts(Attached figure4-2-6)
