four pieces of flange nut M8×16 fix the steering column
tube on the frame.(Attached figure4-1-14-1
figure4-1-14-2)

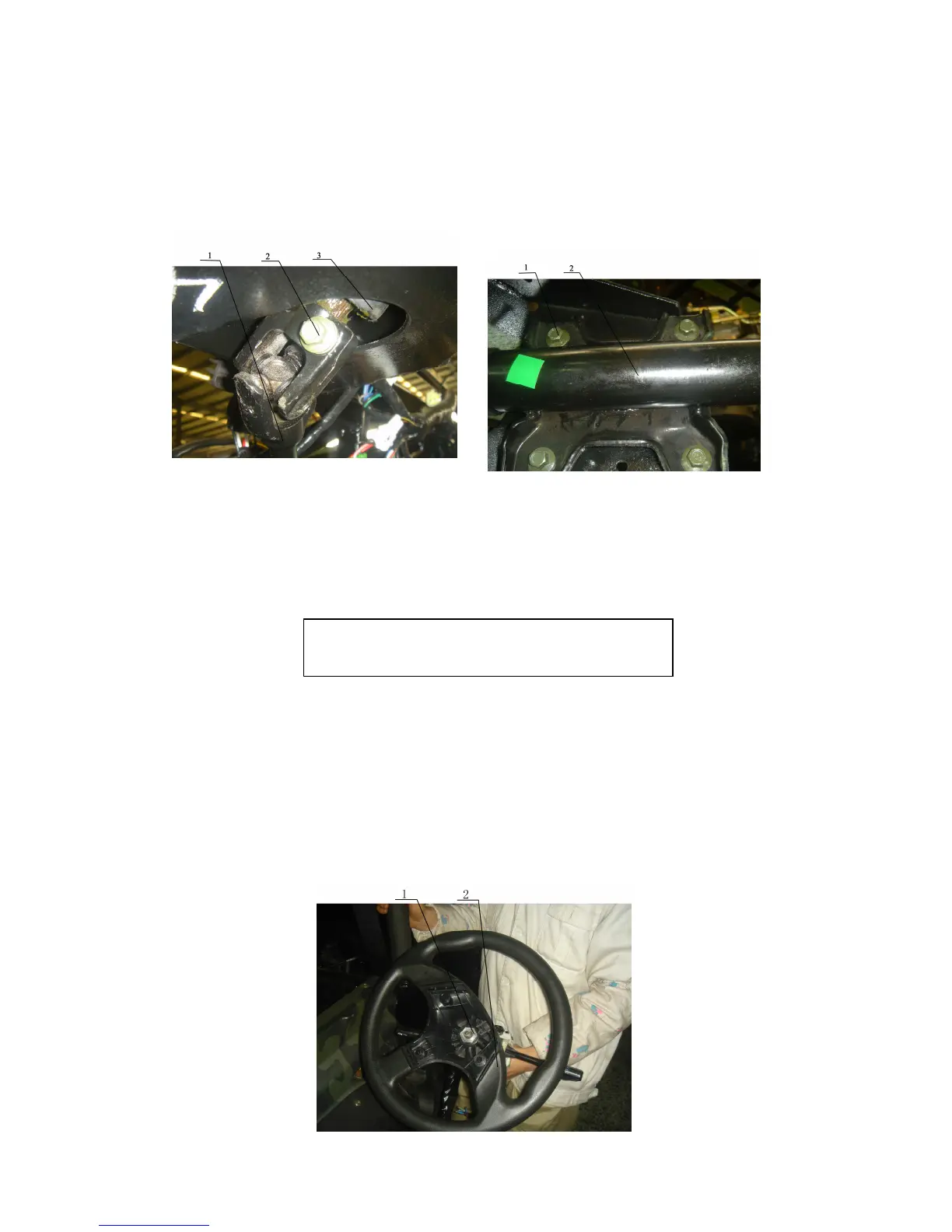

Attached figure4-1-14-1 figure4-1-14-2
1. steering transmission shaft 1. Hexagon flange nutM8×12
2. Hexagon flange nutM8×20 2. steering column tube
3. steering column
M8 Bolt tight of force,32N.m
4. Use one piece of flange self-lock nutM12×1.25 fix the
steering wheel on the steering column tube,then cover the
direction column plastic center lid.(Attached
figure4-1-15)
