61
plate clip parts.

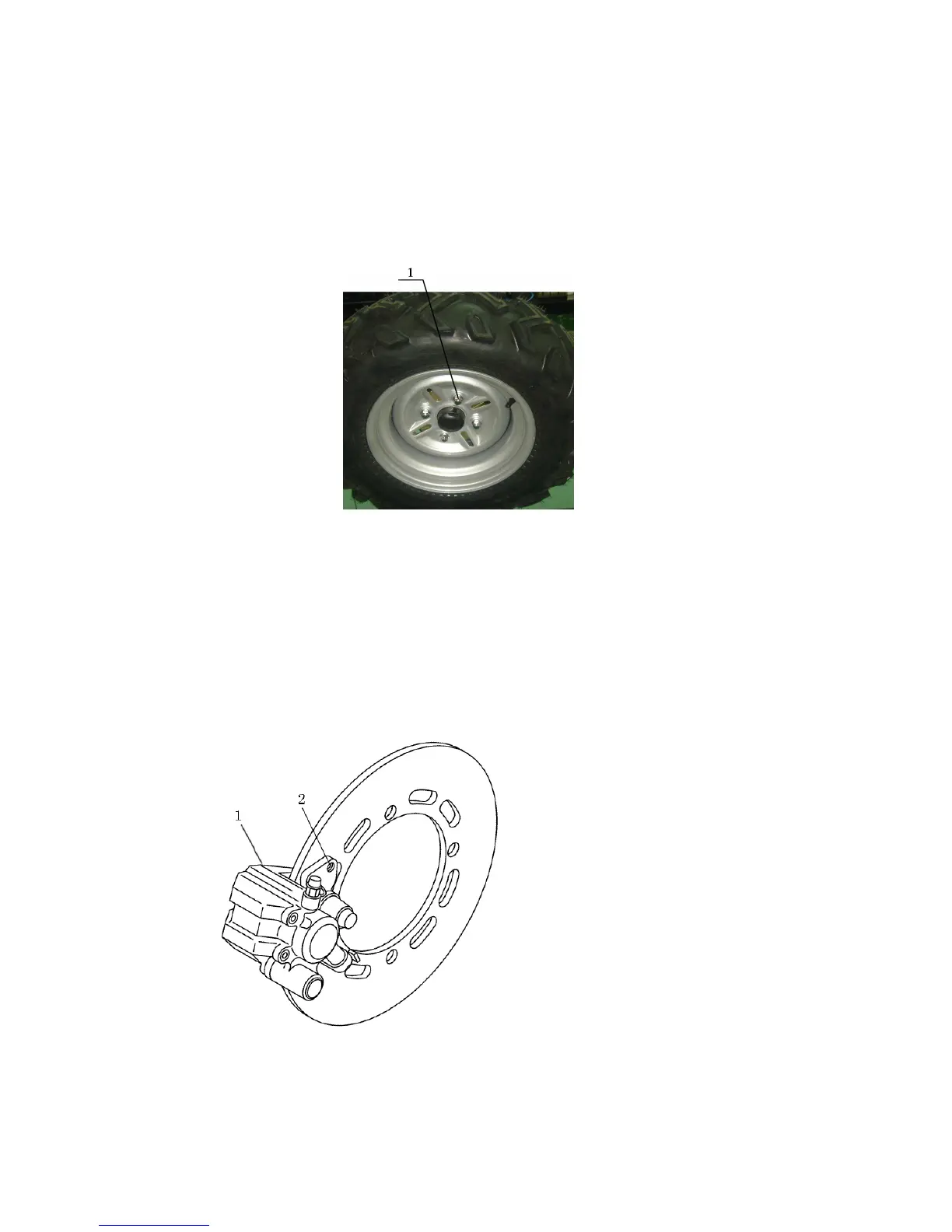

1. Take down the front wheel parts(Attached figure4-2-4)
Attached figure4-2-4
1. Conical Nuts M10
2、Loose the tow pieces of bolts fixed the brake plate
clip and take down it. (Attached figure4-2-5)
Attached figure4-2-5
1. brake plate clip
