Attached Figure4-5-2
1. Cooling System
2. Water tank bracket combination
3. Water tankslanting support combination

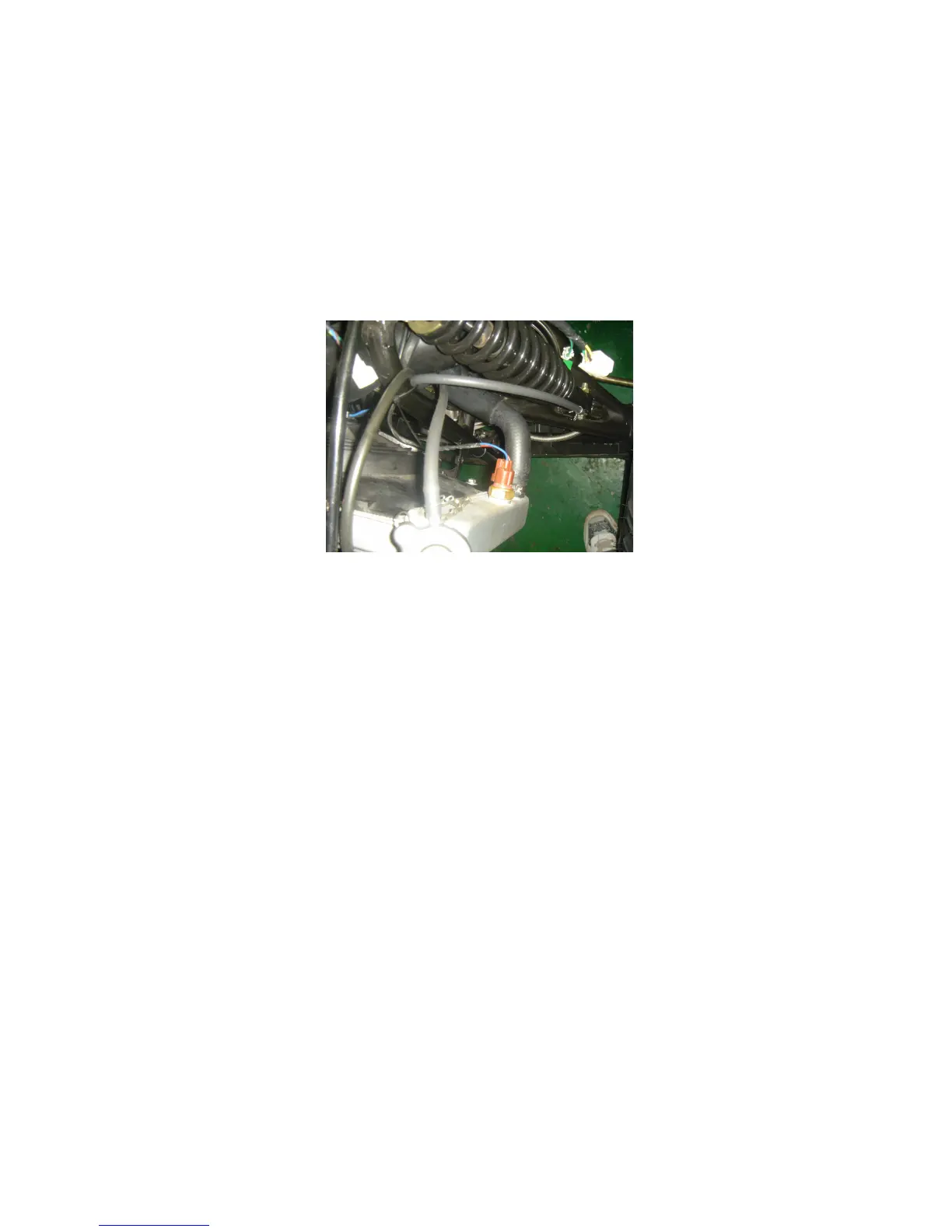

3. ake down the rubber water pipe and water tank
inductor.(Attached Figure4-5-3)
Attached Figure4-5-3
4. Take off Cooling System.(Attached Figure4-5-2)
4.7.2 Inspection of Water Cooling System
1..Check if the rubber pipe of Water Cooling System is torn
or worn out.If so, please replace with new pipe.
2. Check the tightness of the hoop on the rubber pipe
connected with Water Cooling System.If loosen, please have the
hoop tightened immediately.
3. Inspect if ventilator is damaged.If so, please replace
with new ventilator.
4.7.2.1 Assembly of Water Cooling System
1. Mount Water system onto the Frame with buffer cushion
