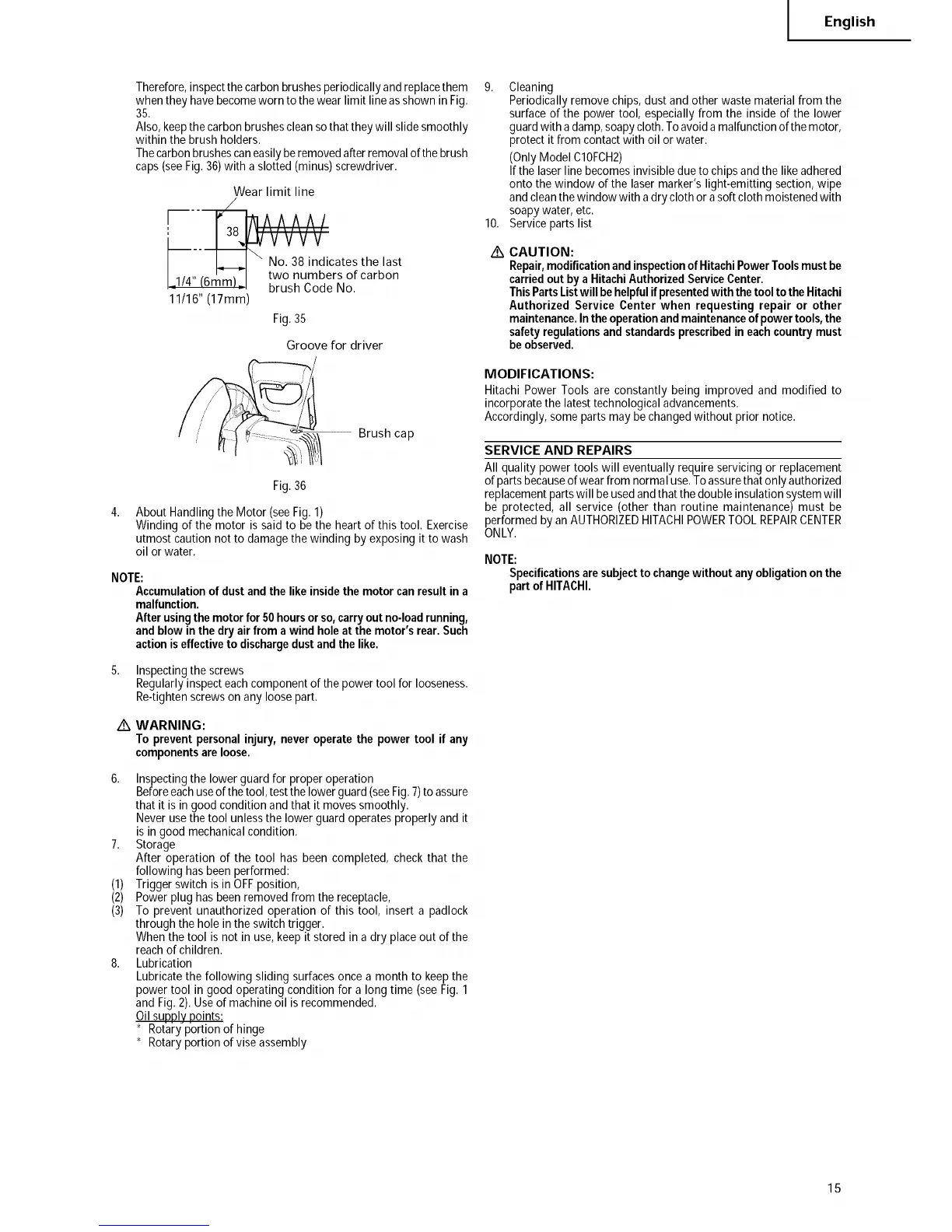

Therefore,inspectthecarbon brushesperiodicallyandreplacethem
whenthey havebecomeworn to thewear limit line asshown in Fig.
35.
Also,keepthe carbonbrushescleanso that theywill slide smoothly
within the brush holders.
Thecarbonbrushescaneasilyberemovedafterremovalof the brush
caps(seeFig.36)with a slotted (minus)screwdriver.
Wear limit line
r AvAvAvAv!
r . No. 38 indicates the last
.__1/4.... ' , I two numbers of carbon
/bmmj_! brush Code No.
11/16" (17ram)
Fig.35
Groove for driver
-- Brush cap
Fig. 36
About Handlingthe Motor (seeFig. 1)
Winding of the motor issaid to bethe heart of this tool. Exercise
utmost caution not to damagethe winding by exposing it to wash
oil or water.
NOTE:
Accumulationof dustandthe like insidethe motorcanresultin a
malfunction.
Afterusingthemotorfor 50hoursorso,carryoutno-loadrunning,
andblowin thedryair from awind holeat themotor'srear.Such
actionis effectiveto dischargedustandthe like.
5. Inspecting the screws
Regularly inspect each component of the power tool for looseness.
Re-tighten screws on any loose part.
./K WARNING:
To preventpersonalinjury,neveroperatethe powertool if any
componentsareloose.
6. Inspectingthe lower guard for properoperation
Beforeeachuseof the tool,testthe lowerguard(seeFig.7)to assure
that it is ingood condition and that it movessmoothly.
Never usethe tool unlessthe lower guard operatesproperlyand it
is in good mechanicalcondition.
7. Storage
After operation of the tool has been completed, check that the
following hasbeen performed:
(1) Trigger switch is in OFFposition,
(2) Power plug hasbeenremovedfrom the receptacle,
(3) To prevent unauthorized operation of this tool, insert a padlock
through the hole in the switch trigger.
Whenthe tool is not in use, keepit stored in a dry placeout of the
reachof children.
8. Lubrication
Lubricatethe following sliding surfacesonce a month to keepthe
power tool in good operating condition for a long time (seeFig. 1
and Fig.2). Useof machineoil is recommended.
Oil supply points:
* Rotaryportion of hinge
* Rotaryportion of vise assembly
10.
/k
Cleaning
Periodicallyremovechips,dust and other wastematerial from the
surface of the power tool, especiallyfrom the inside of the lower
guardwith a damp,soapycloth.Toavoida malfunctionofthemotor,
protect it from contactwith oil or water.
(Only Model C10FCH2)
If the laser line becomesinvisible dueto chips andthe likeadhered
onto the window of the laser marker's light-emitting section,wipe
andcleanthewindow with a drycloth ora softcloth moistenedwith
soapywater, etc.
Serviceparts list
CAUTION:
Repair,modificationandinspectionofHitachiPowerToolsmustbe
carriedoutby a HitachiAuthorizedServiceCenter.
ThisPartsListwill behelpfulifpresentedwith thetooltotheHitachi
Authorized Service Center when requesting repair or other
maintenance.Intheoperationandmaintenanceof powertools,the
safetyregulationsandstandardsprescribedineachcountrymust
beobserved.
MODIFICATIONS:
Hitachi Power Tools are constantly being improved and modified to
incorporatethe latesttechnological advancements.
Accordingly, some partsmay bechangedwithout prior notice.
SERVICE AND REPAIRS
All quality power tools will eventually require servicingor replacement
of partsbecauseofwearfrom normal use.To assurethatonly authorized
replacementpartswill beusedandthat the doubleinsulation systemwill
be protected, all service (other than routine maintenance) must be
performed by anAUTHORIZEDHITACHIPOWERTOOLREPAIRCENTER
ONLY.
NOTE:
Specificationsaresubjectto changewithout anyobligationonthe
partof HITACHI.
