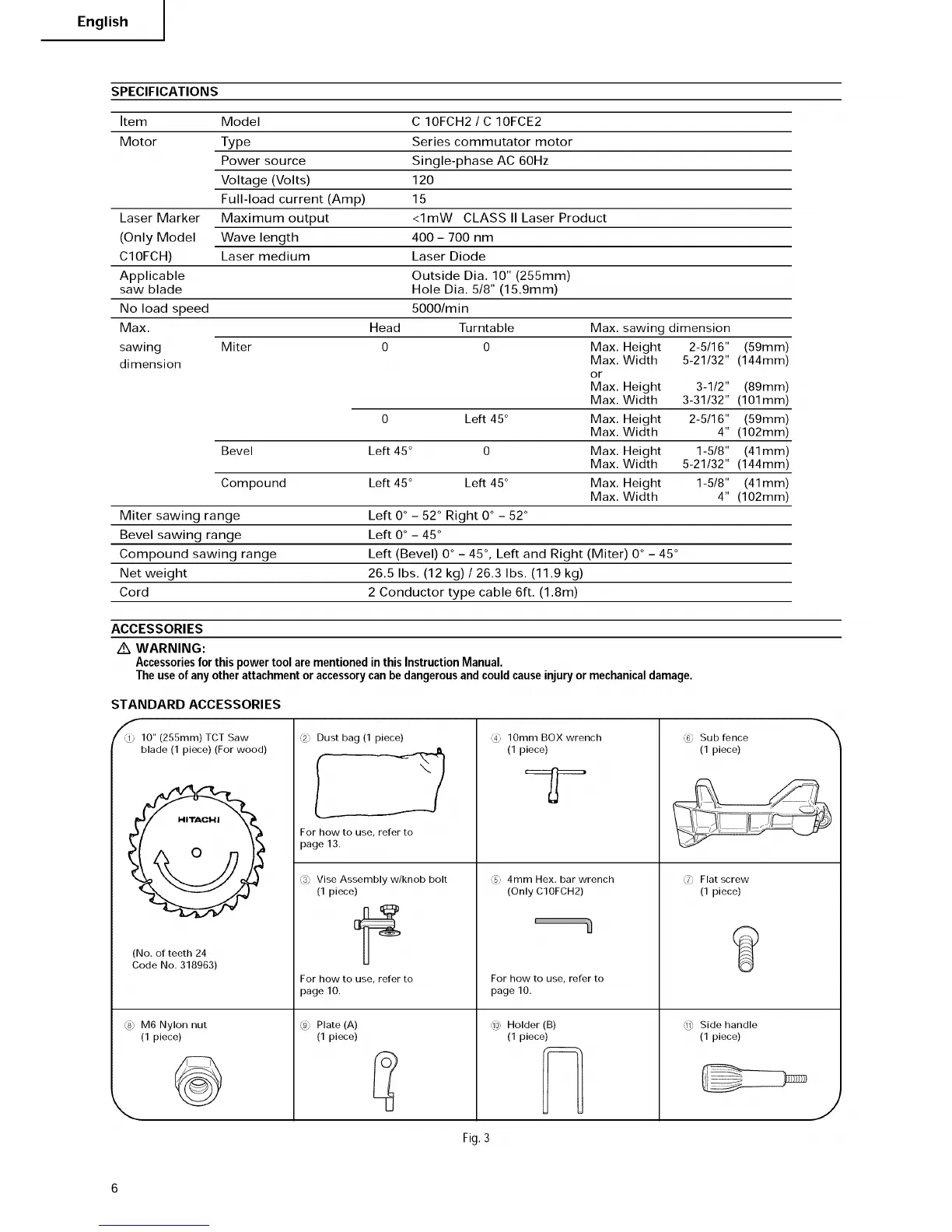

SPECIFICATIONS
Item Model C 10FCH2 / C 10FCE2
Motor Type Series commutator motor
Power source Single-phase AC 60Hz
Voltage (Volts) 120
Full-load current (Amp) 15
Laser Marker Maximum output <1row CLASS II Laser Product
(Only Model Wave length 400 - 700 nm
ClOFCH) Laser medium Laser Diode
Applicable Outside Dia. 10" (255mm)
saw blade Hole Dia. 5/8" (15.9mm)
No load speed 5000/rain
Max. Head Turntable sawing dimension
sawing Miter 0 0 Height 2-5/16"
dimension Width 5-21/32"
Max,
Max.
Max.
or
Max. Height 3-1/2"
Max. Width 3-31/32"
0 Left 45° Max. Height 2-5/16"
Max. Width 4"
Bevel Left 45° 0 Max. Height 1-5/8"
Max. Width 5-21/32"
Compound Left 45° Left 45° Max. Height 1-5/8"
Max. Width 4"
Miter sawing range Left 0° - 52 ° Right 0 ° - 52°
Bevel sawing range Left 0° - 45 °
Compound sawing range Left (Bevel) 0 ° - 45 °, Left and Right (Miter) 0° - 45°
Net weight 26.5 Ibs. (12 kg) / 26.3 Ibs. (11.9 kg)
Cord 2 Conductor type cable 6ft. (1.8m)
ACCESSORIES
A WARNING:
Accessoriesforthis powertool arementionedin this InstructionManual.
Theuseofany otherattachmentoraccessorycanbedangerousandcouldcauseinjuryor mechanicaldamage.
STANDARD ACCESSORIES
10" (255mm) TCT Saw
blade (1 piece) (For wood)
,::5:,Dust bag (1 piece)
I
I
For how to use, refer to
page 13.
,::3:, Vise Assembly w/knob bolt
(1 piece)
.::4, 10mm BOX wrench
(1 piece)
,:_5,4mm Hex. bar wrench
(Only Cl0FCH2)
(No. of teeth 24
Code No. 318963)
,::8:,M6 Nylon nut
(1 piece)
For how to use, refer to
page 10.
.::_, Plate (A)
(1 piece)
For how to use, refer to
page 10.
:IQ_Holder (B)
(1 piece)
Fig. 3
.::6:,Sub fence
(1 piece)
.:_7_,Flat screw
(1 piece)
(59mm)
(144mm)
(89mm)
(101 mm)
(59mm)
(102mm)
(41 mm)
(144mm)
(41 mm)
(102mm)
':_!VSide handle
(1 piece)
-X
J
To Next Page
