Hitachi Koki C10FCH2 - Listedespieces; Listadepiezas

4_
On

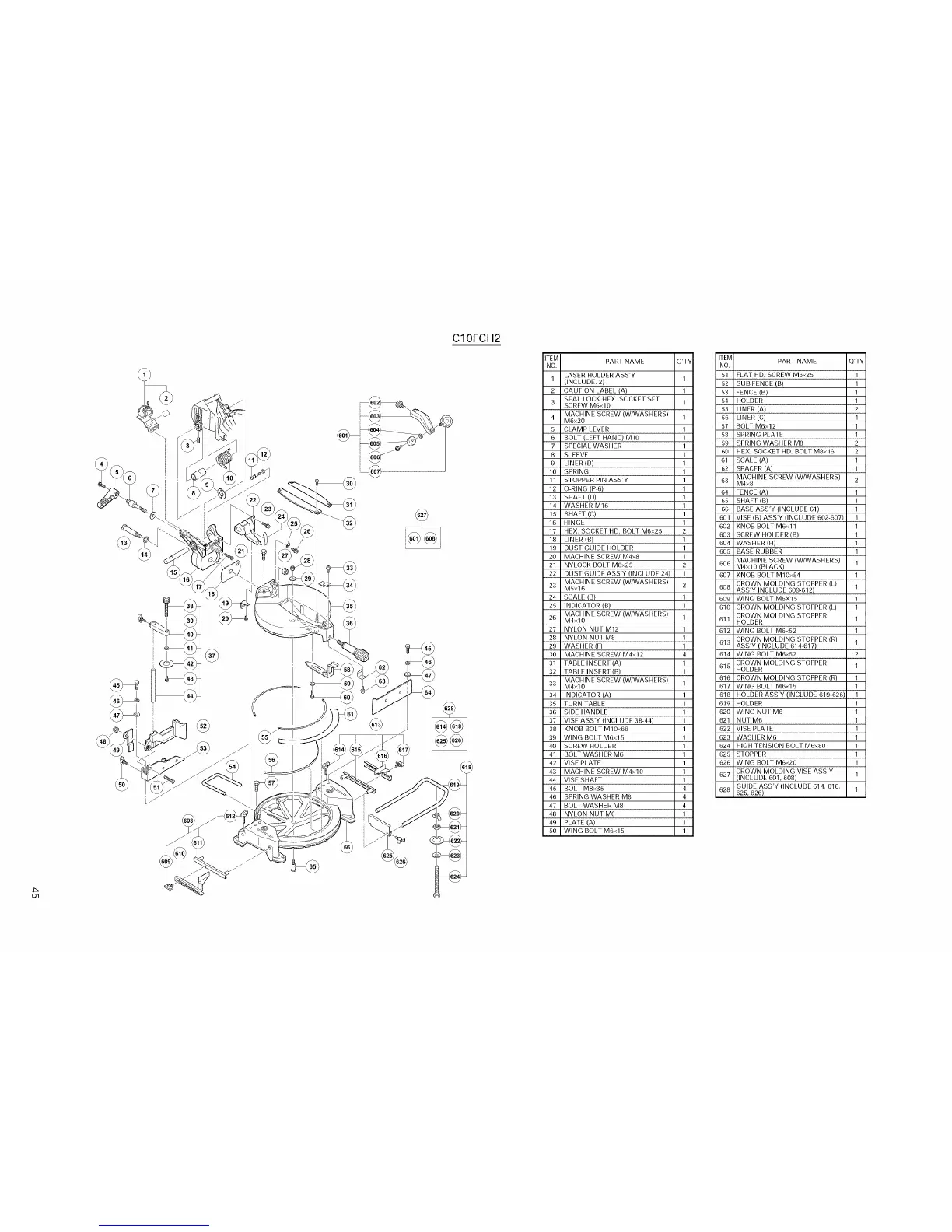

CIOFCH2
ITEM PART NAME Q'TY
NO.
LASER HOLDER ASS'Y
1 (INCLUDE. 2) 1
2 CAUTION LABEL (A) 1
SEAL LOCK HEX. SOCKET SET
3 SCREW M6×10 1
MACHINE SCREW (W/WASHERS) 1
4 M6×20
5 CLAMP LEVER 1
6 BOLT (LEFT HAND) MIO 1
7 SPECIAL WASHER 1
8 SLEEVE 1
9 LINER (D) 1
10 SPRING 1
11 STOPPER PIN ASS'Y 1
12 O-RING (P-6) 1
13 SHAFT (D) 1
14 WASHER M16 1
15 SHAFT (C) 1
16 HINGE 1
17 HEX. SOCKET HD. BOLT M6x25 2
18 LINER (B) 1
19 DUST GUIDE HOLDER 1
20 MACHINE SCREW M4x8 1
21 NYLOCK BOLT M8x25 2
22 DUST GUIDE ASS'Y (INCLUDE 24) 1
MACHINE SCREW (W/WASHERS) 2
23 M5x16
24 SCALE (B) 1
25 INDICATOR (B) 1
MACHINE SCREW (W/WASHERS) 1
26 M4x10
27 NYLON NUT M12 1
28 NYLON NUT M8 1
29 WASHER (E) 1
30 MACHINE SCREW M4x12 4
31 TABLE INSERT(A) 1
32 TABLE INSERT(B) 1
MACHINE SCREW (W/WASHERS) 1
33 M4xlO
34 INDICATOR (A) 1
35 TURN TABLE 1
36 SIDE HANDLE 1
37 VISE ASS'Y (INCLUDE 38-44) 1
38 KNOB BOLT M10x66 1
39 WING BOLT M6x15 1
40 SCREW HOLDER 1
41 BOLT WASHER M6 1
42 VISE PLATE 1
43 MACHINE SCREW M4×10 1
44 VISE SHAFT 1
45 BOLT M8×35 4
46 SPRING WASHER M8 4
47 BOLT WASHER M8 4
48 NYLON NUT M6 1
49 PLATE (A) 1
50 WING BOLT M6x15 1
ITEM
PART NAME Q'TY
NO.
51 FLAT HD. SCREW M6x25 1
52 SUB FENCE (B) 1
53 FENCE (B) 1
54 HOLDER 1
55 LINER (A) 2
56 LINER (C) 1
57 BOLT M6×12 1
58 SPRING PLATE 1
59 SPRING WASHER M8 2
60 HEX. SOCKET HD. BOLT M8×16 2
61 SCALE (A) 1
62 SPACER (A) 1
MACHINE SCREW (W/WASHERS) 2
63 M4x8
64 FENCE (A) 1
65 SHAFT (B) 1
66 BASE ASS'Y (INCLUDE 61) 1
601 VISE (B) ASS'Y (INCLUDE 602-607) 1
602 KNOB BOLT M6×11 1
603 SCREW HOLDER (B) 1
604 WASHER (H) 1
605 BASE RUBBER 1
MACHINE SCREW (W/WASHERS) 1
606 M4×10 (BLACK)
607 KNOB BOLT M10×54 1
CROWN MOLDING STOPPER (L) 1
608 ASS'Y INCLUDE 609-612)
609 WING BOLT M6X15 1
610 CROWN MOLDING STOPPER (L) 1
CROWN MOLDING STOPPER
611 HOLDER 1
612 WING BOLT M6×52 1
CROWN MOLDING STOPPER (R) 1
613 ASS'Y (INCLUDE 614-617)
614 WING BOLT M6×52 2
CROWN MOLDING STOPPER 1
615 HOLDER
616 CROWN MOLDING STOPPER (R) 1
617 WING BOLT M6×15 1
618 HOLDERASS'Y (INCLUDE 619-626 1
619 HOLDER 1
620 WING NUT M6 1
621 NUT M6 1
622 VISE PLATE 1
623 WASHER M6 1
624 HIGH TENSION BOLT M6×80 1
625 STOPPER 1
626 WING BOLT M6×20 1
CROWN MOLDING VISE ASS'Y 1
627 (INCLUDE 601,608)
GUIDE ASS'Y (INCLUDE 614, 618, 1
628 625, 626)
