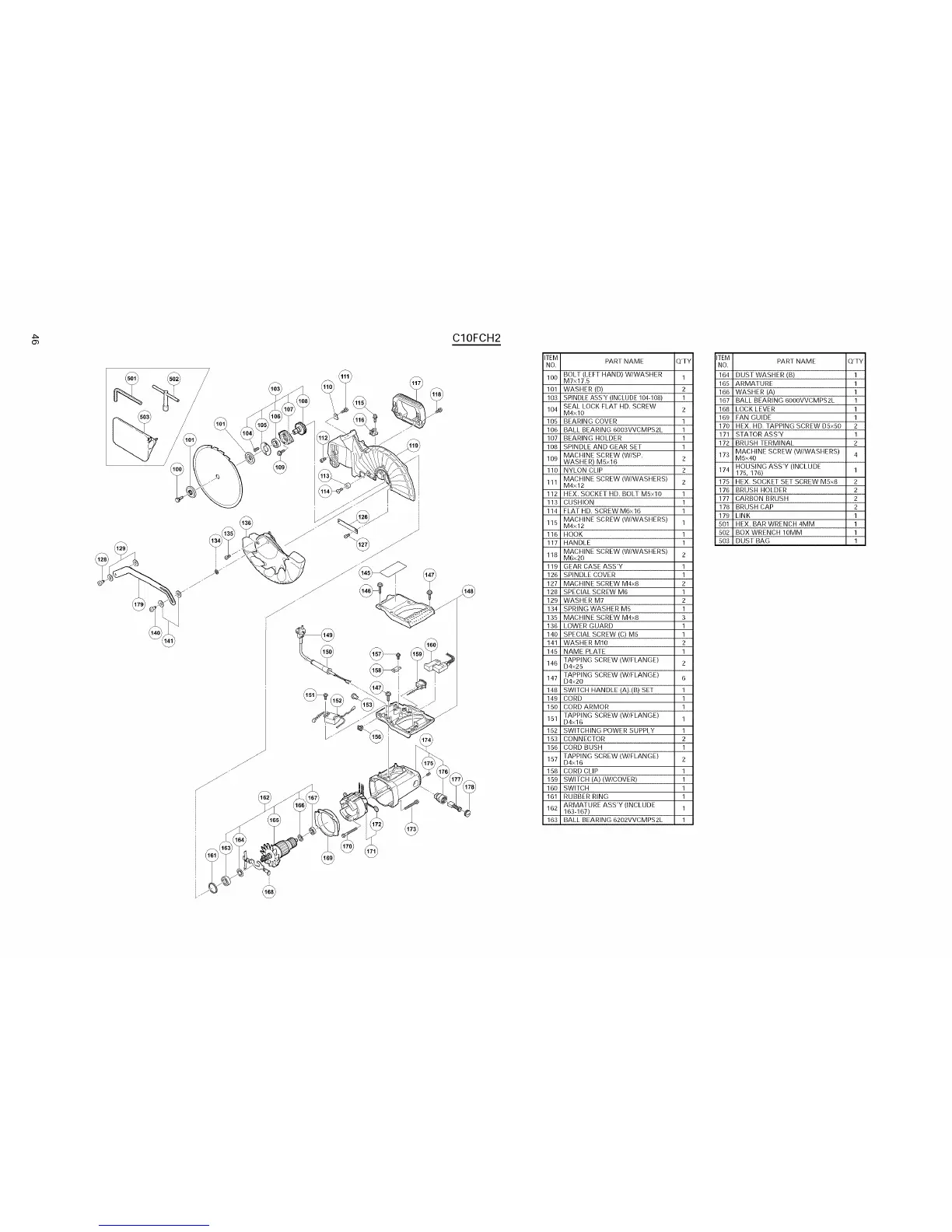

Hitachi Koki C10FCH2 - Page 46

4_
CIOFCH2
ITEM
PART NAME Q'TY
NO.
BOLT (LEFT HAND) W/WASHER
100 M7×l 7.5 1
101 WASHER (D) 2
103 SPINDLE ASS'Y (INCLUDE 104-108) 1
104 SEAL LOCK FLAT HD. SCREW
M4xl0 2
I05 BEARING COVER 1
106 BALL BEARING 6003VVCMPS2L I
107 BEARING HOLDER I
108 SPINDLE AND GEAR SET 1
MACHINE SCREW (W/SP.
109 WASHER) MSx16 2
110 NYLON CLIP 2
MACHINE SCREW (W/WASHERS) 2
111 M4×12
112 HEX. SOCKET HD. BOLT M5xlO I
113 CUSHION I
114 FLAT HD. SCREW M6×16 I
MACHINE SCREW (W/WASHERS) I
118 M4×12
116 HOOK I
117 HANDLE I
MACHINE SCREW (W/WASHERS) 2
118 M6x20
119 GEAR CASE ASS'Y 1
126 SPINDLE COVER 1
127 MACHINE SCREW M4x8 2
128 SPECIAL SCREW M6 1
129 WASHER M7 2
134 SPRING WASHER M5 1
135 MACHINE SCREW M4x8 3
136 LOWER GUARD 1
140 SPECIAL SCREW (C) M5 1
141 WASHER M10 2
145 NAME PLATE 1
TAPPING SCREW (W/FLANGE) 2
146 D4x25
TAPPING SCREW (W/FLANGE) 6
147 D4x20
148 SWITCH HANDLE (A).(B) SET 1
149 CORD 1
150 CORD ARMOR 1
TAPPING SCREW (W/FLANGE) 1
151 D4×16
152 SWITCHING POWER SUPPLY 1
153 CONNECTOR 2
156 CORD BUSH 1
157 TAPPING SCREW (W/FLANGE) 2
D4×16
158 CORD CLIP 1
159 SWITCH (A) (W/COVER) 1
160 SWITCH 1
161 RUBBER RING 1
ARMATURE ASS'Y (INCLUDE 1
162 163-167)
163 BALL BEARING 6202VVCMPS2L 1
TEM
PART NAME Q'TY
NO.
164 DUSTWASHER (B) 1
165 ARMATURE 1
166 WASHER (A) 1
167 BALL BEARING 6000VVCMPS2L 1
168 LOCK LEVER 1
169 FAN GUIDE 1
170 HEX. HD. TAPPING SCREW D5x50 2
171 STATOR ASS'Y 1
172 BRUSH TERMINAL 2
MACHINE SCREW (W/WASHERS) 4
173 M5×40
HOUSING ASS'Y (INCLUDE 1
174 175, 176)
175 HEX. SOCKET SET SCREW M5×8 2
176 BRUSH HOLDER 2
177 CARBON BRUSH 2
178 BRUSH CAP 2
179 LINK 1
501 HEX. BAR WRENCH 4MM 1
502 BOX WRENCH I OMM 1
503 DUST BAG 1
