To keepthe doubleinsulation systemeffective,follow these precautions:
* Only HITACHIAUTHORIZEDSERVICECENTERshould disassembleor assemblethis powertool, and only genuine HITACHIreplacementparts
should be installed.
* Cleanthe exteriorof the powertool only with a soft cloth moistenedwith soapywater and dry thoroughly.
* Neverusesolvents, gasolineor thinners on plastic components;otherwisethe plastic maydissolve.
SAVETHESEINSTRUCTIONS
AND
MAKETHEMAVAILABLETOOTHERUSERS
AND
OWNERSOFTHISTOOL!
NOTE:
TheinformationcontainedinthisInstructionManualisdesignedto assistyou in thesafeoperationandmaintenanceof thepowertool.Some
illustrationsinthisInstructionManualmayshowdetailsorattachmentsthat differfromthoseon your own powertool.

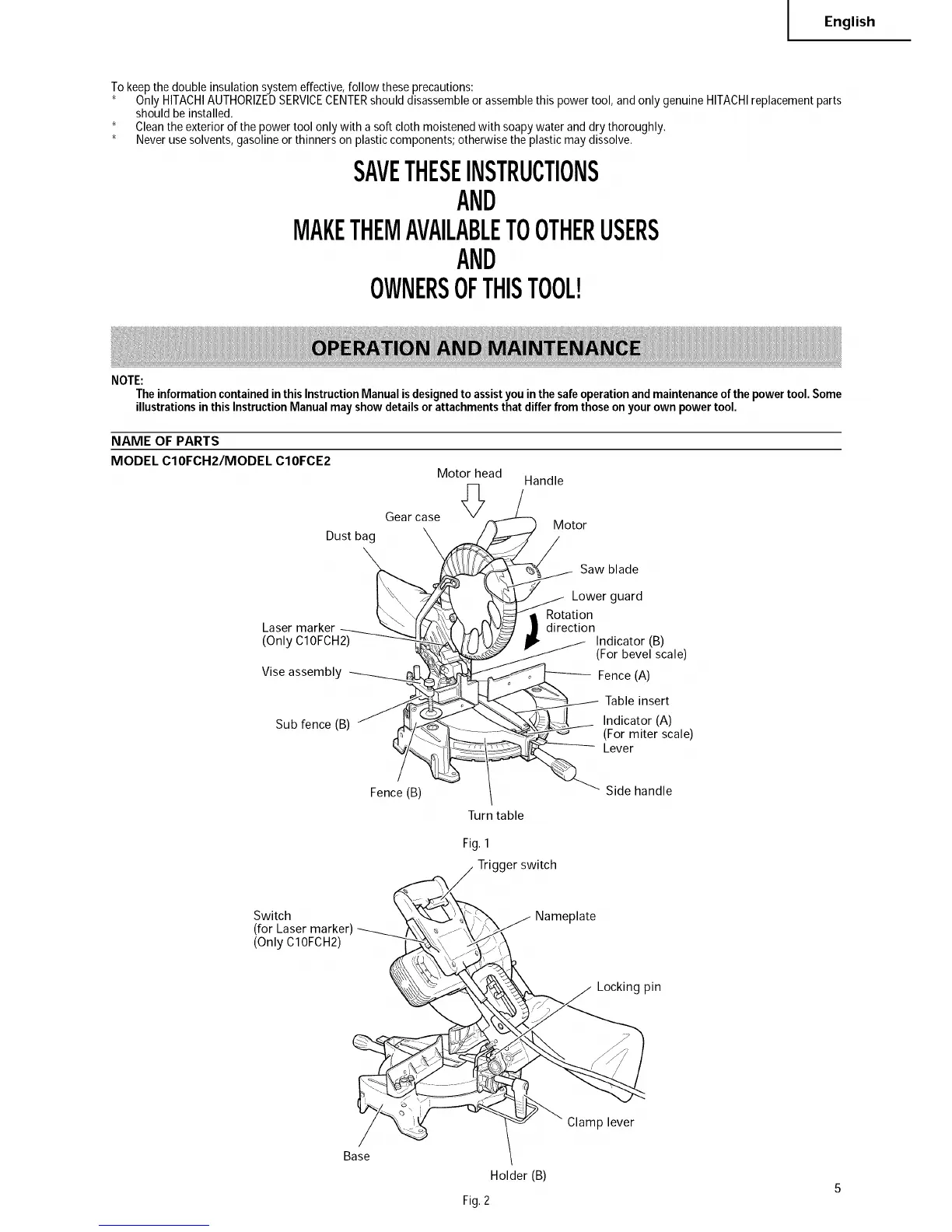

NAME OF PARTS
MODEL CIOFCH2/MODEL CIOFCE2
Gear case
Dust bag X
Laser marker -____
(Only CIOFCH2)
Vise assembly __
Sub fence (B) _i_'_
Fence (B)
Motor head
Handle
Motor
Saw blade
Lower guard
Rotation
direction
Indicator (B)
(For bevel scale)
Fence (A)
Table insert
_ Indicator (A)
________'_ (For miter scale)
Lever
Side handle
Turn table
Fig. 1
Trigger switch
Switch
(for Laser marker)
(Only Cl0FCH2)
Nameplate
Locking pin
Base
Holder (B)
Fig. 2
Clamp lever
