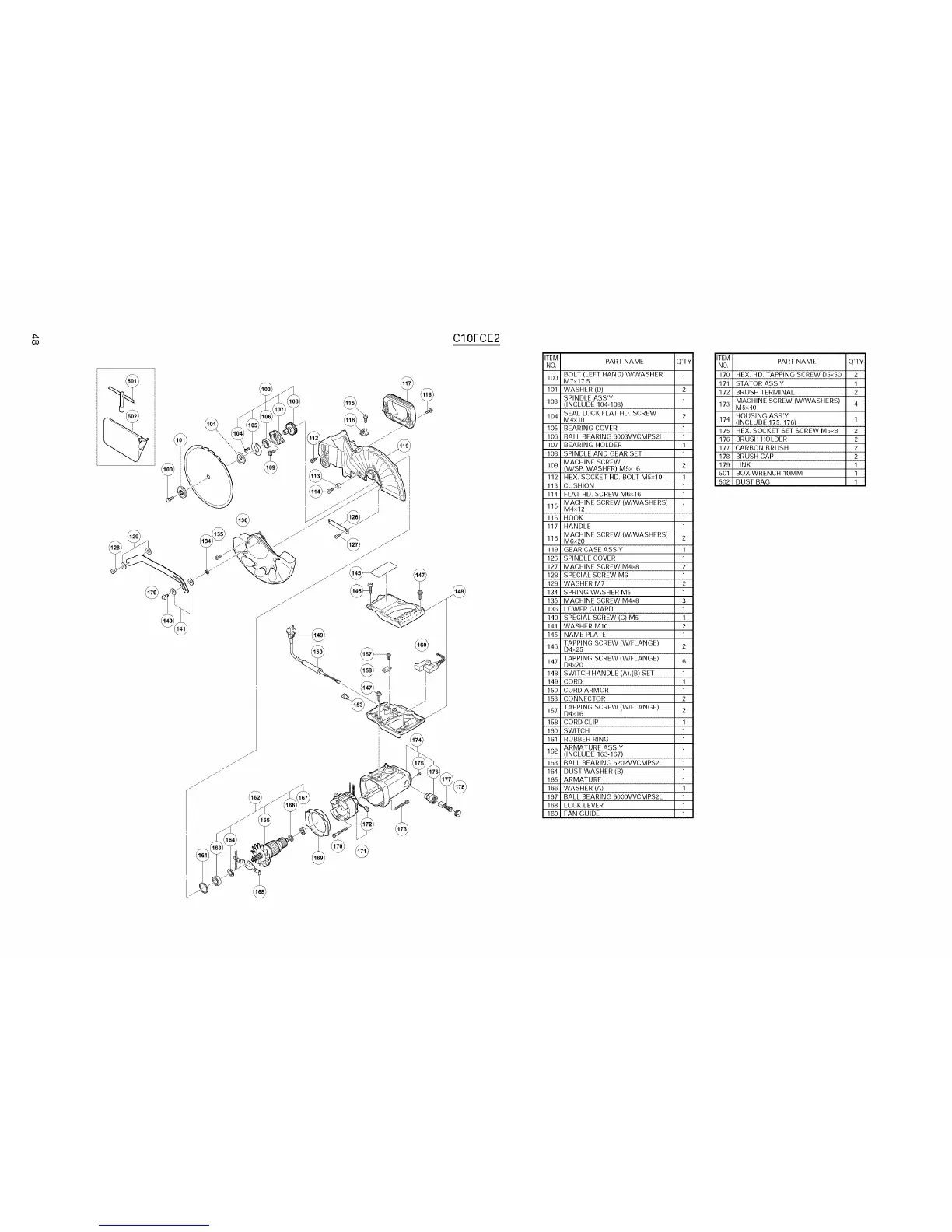

Hitachi Koki C10FCH2 - Page 48

¢o
CIOFCE2
ITEM
PART NAME Q'TY
NO.
BOLT (LEFT HAND) W/WASHER 1
100 M7×17.5
101 WASHER (D) 2
SPINDLE ASS'Y
103 (INCLUDE 104-108) 1
SEAL LOCK FLAT HD. SCREW 2
104 M4×10
105 BEARING COVER 1
106 BALL BEARING 6003VVCMPS2L 1
107 BEARING HOLDER 1
108 SPINDLE AND GEAR SET 1
MACHINE SCREW
109 (W/SP. WASHER) MSx16 2
112 HEX. SOCKET HD. BOLT M5×10 1
113 CUSHION 1
114 FLAT HD. SCREW M6×16 1
MACHINE SCREW (W/WASHERS) 1
115 M4×12
116 HOOK 1
117 HANDLE 1
MACHINE SCREW (W/WASHERS) 2
118 M6×20
119 GEAR CASE ASS'Y 1
126 SPINDLE COVER 1
127 MACHINE SCREW M4×8 2
128 SPECIAL SCREW M6 1
129 WASHER M7 2
134 SPRING WASHER M5 1
135 MACHINE SCREW M4×8 3
136 LOWER GUARD 1
140 SPECIAL SCREW (C) M5 1
141 WASHER M10 2
145 NAME PLATE 1
TAPPING SCREW (W/FLANGE) 2
146 D4x25
TAPPING SCREW (W/FLANGE) 6
147 D4×20
148 SWITCH HANDLE (A).(B) SET 1
149 CORD 1
150 CORD ARMOR 1
153 CONNECTOR 2
TAPPING SCREW (W/FLANGE) 2
157 D4x16
158 CORD CLIP 1
160 SWITCH 1
161 RUBBER RING 1
ARMATURE ASS'Y
162 (INCLUDE 163-167) 1
163 BALL BEARING 6202VVCMPS2L 1
164 DUSTWASHER (B) 1
165 ARMATURE 1
166 WASHER (A) 1
167 BALL BEARING 6000VVCMPS2L 1
168 LOCK LEVER 1
169 FAN GUIDE 1
ITEM
PART NAME Q'TY
NO.
170 HEX. HD. TAPPING SCREW D5×50 2
171 STATOR ASS'Y 1
172 BRUSH TERMINAL 2
MACHINE SCREW (W/WASHERS) 4
173 M5×40
HOUSING ASS'Y
174 (INCLUDE 175, 176) 1
175 HEX. SOCKET SET SCREW M5×8 2
176 BRUSH HOLDER 2
177 CARBON BRUSH 2
178 BRUSH CAP 2
179 LINK 1
501 BOX WRENCH 10MM 1
502 DUST BAG 1
