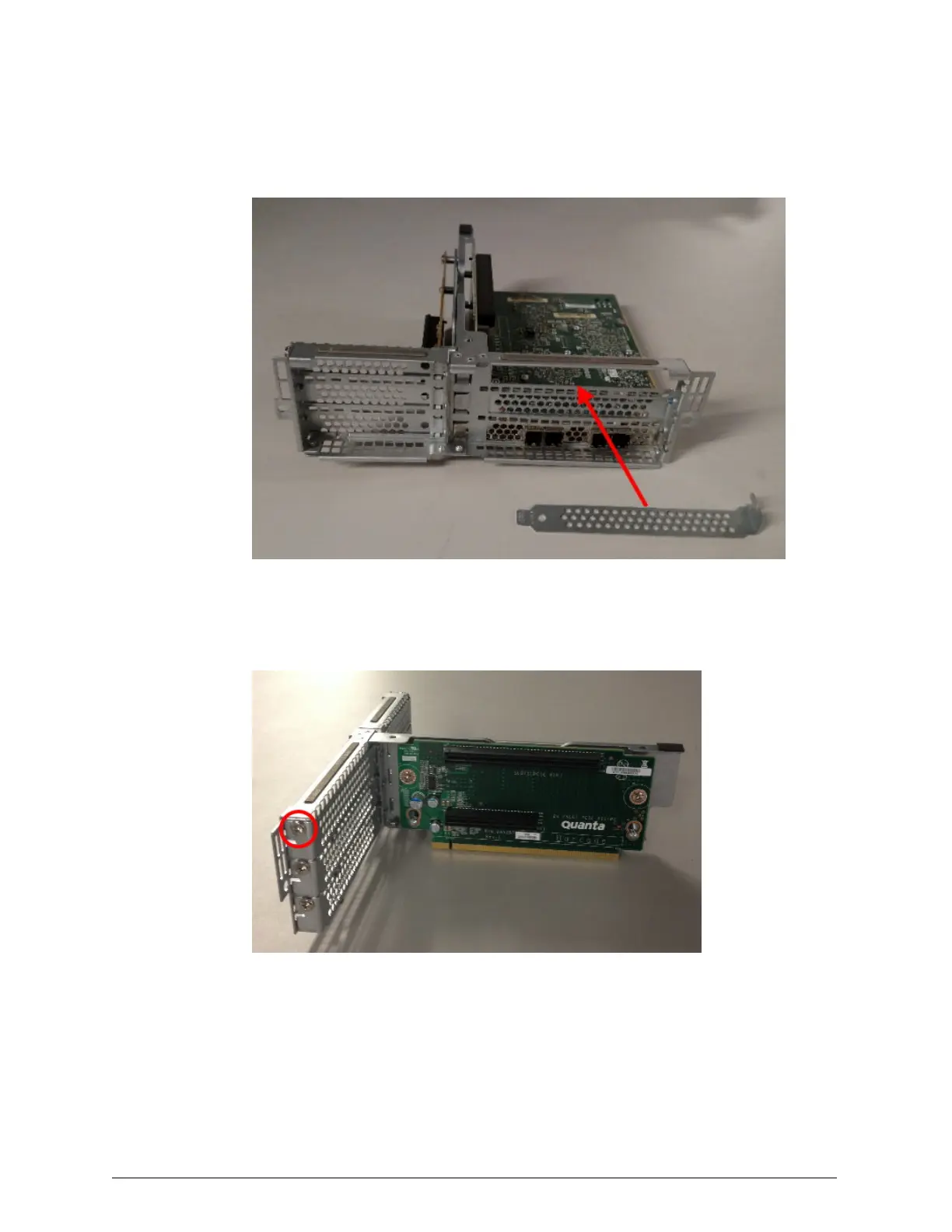

3. Position a long blank plate in the slot from which you removed the SAS
PCIcard, aligning the screw hole in the plate with the screw hole in the
edge of the bracket.
4. Using the #2 Phillips screwdriver, screw the silver screw you removed
from the bracket back into the applicable screw hole in the lip at the
edge of the bracket.
5. Pack the SAS PCIcard in the applicable packaging.
Chapter 4: Refurbishing an HCP S30 Node
97
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
