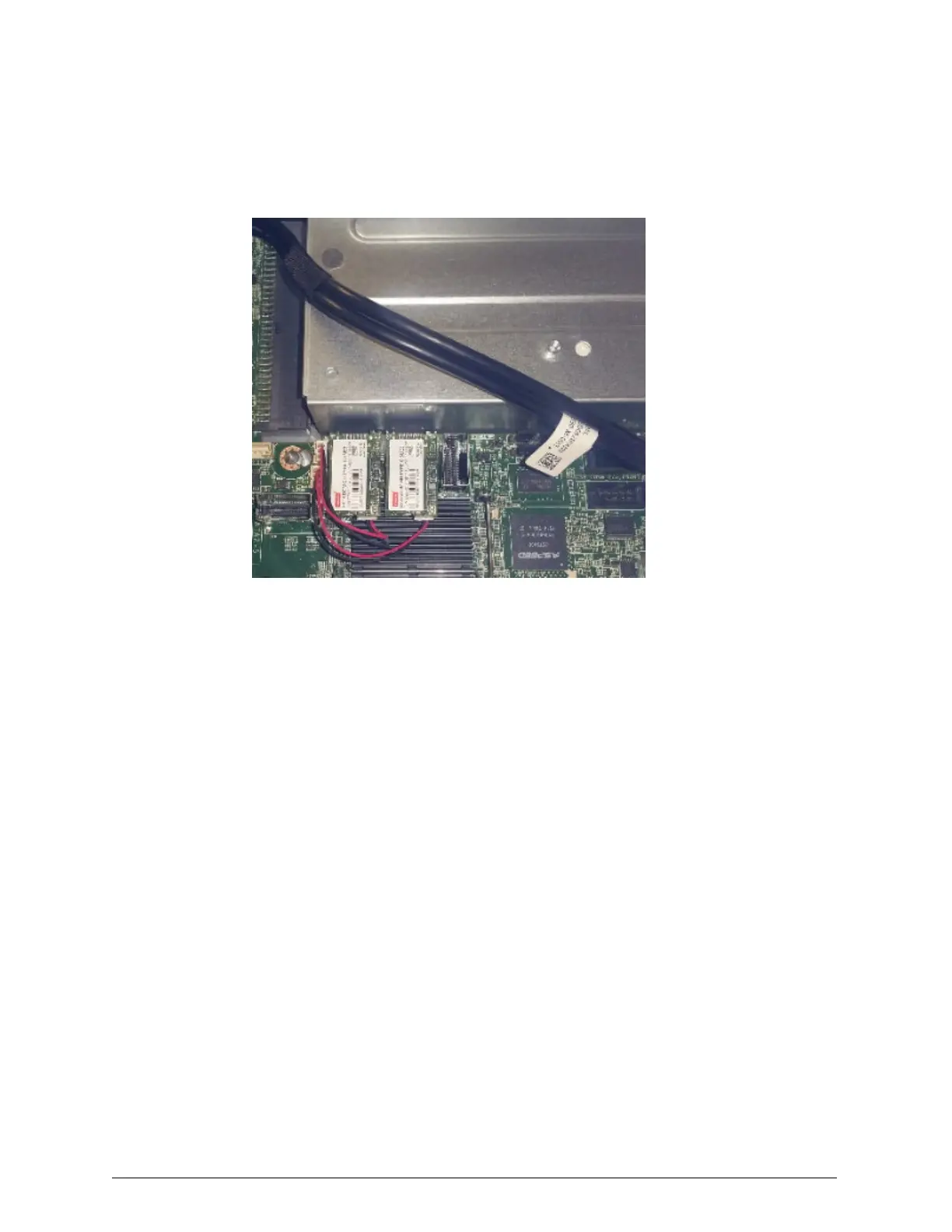

To remove the SSDs from the server module:
1. Lift the black cable inside the server module out of the way to expose the
SSDs.
2. Remove the first SSDîfrom the server module. To do this:
a. Disconnect the power cable for the SSD from the small white power
connector on the motherboard. To disconnect the cable, grasp the
cable just above the connector and pull up firmly but gently.
100
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
