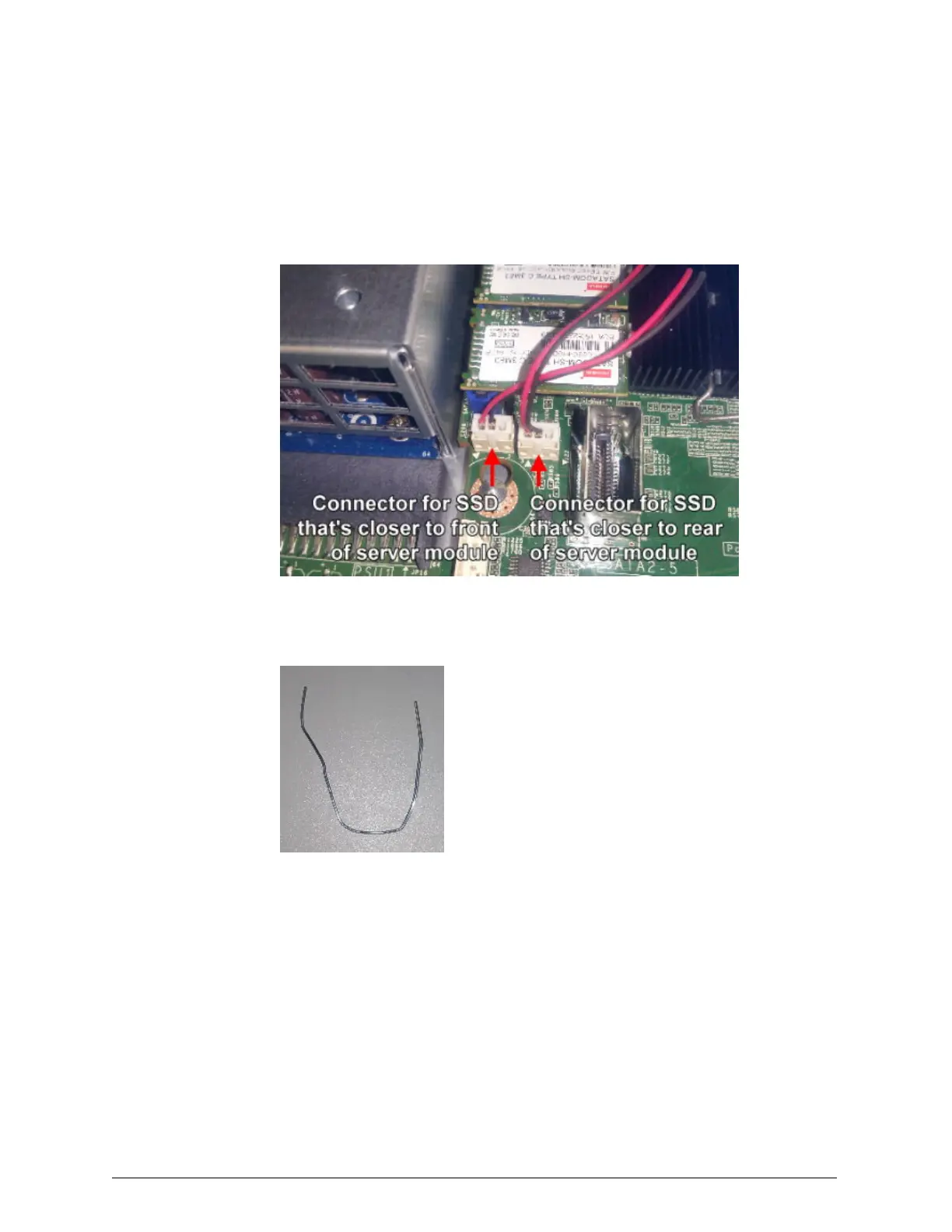

The power cable for the SSD that's closer to the front of the server
module is connected to the white power connector that's closer to the
left side of the server module (when viewed from the front). The
power cable for the SSDthat's closer to the rear of the server module
is connected to the white power connector that's closer to the right
side of the server module.
b. Bend a paper clip into a squared-off U, where the bottom section of
the U is the width of one of the SSDs.
Chapter 4: Refurbishing an HCP S30 Node
101
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
