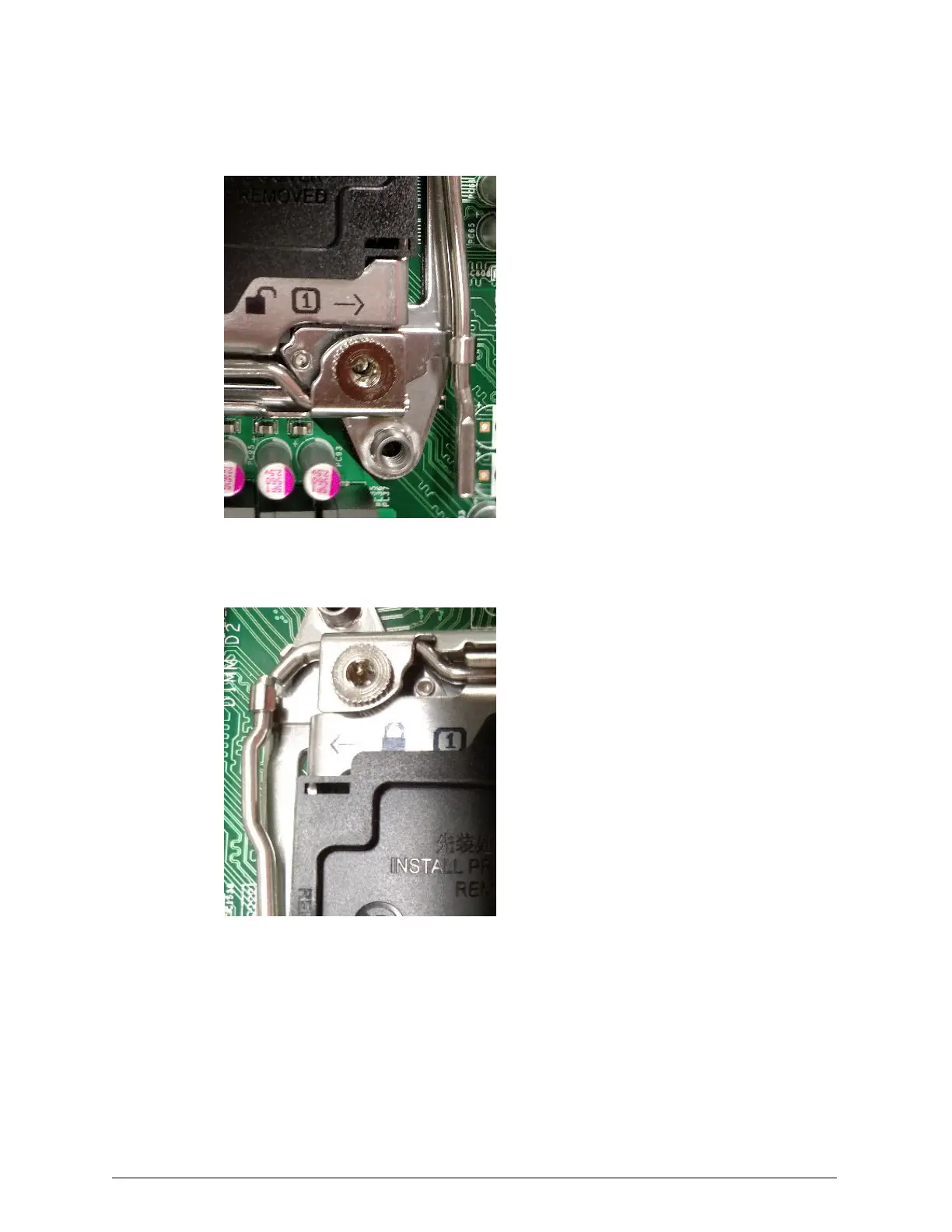

The CPUîsockets have covers. Each cover is held down by two levers. One
lever is straight and is indicated with an open lock symbol.
The other lever has a double bend in it and is indicated by a locked lock
symbol.
106
Chapter 4: Refurbishing an HCP S30 Node
HCP S Series Node Refurbishment
Step 17: Unrack, disassemble, and pack the server modules
