4. Push down on the two release latches for the left side of the enclosure
cover. Then pull up that side to open it.
5. Remove the four empty drive placeholders from slots 27, 28, 33, and
34. To remove a placeholder, with your finger hooked under the rim of
the hole in the top of the placeholder, pull the placeholder straight up
out of the slot.
6. Insert the 28 drives from the upgrade kit into slots 13 through 24, 27,
28, 33, 34, and 37 through 48. To insert a drive:

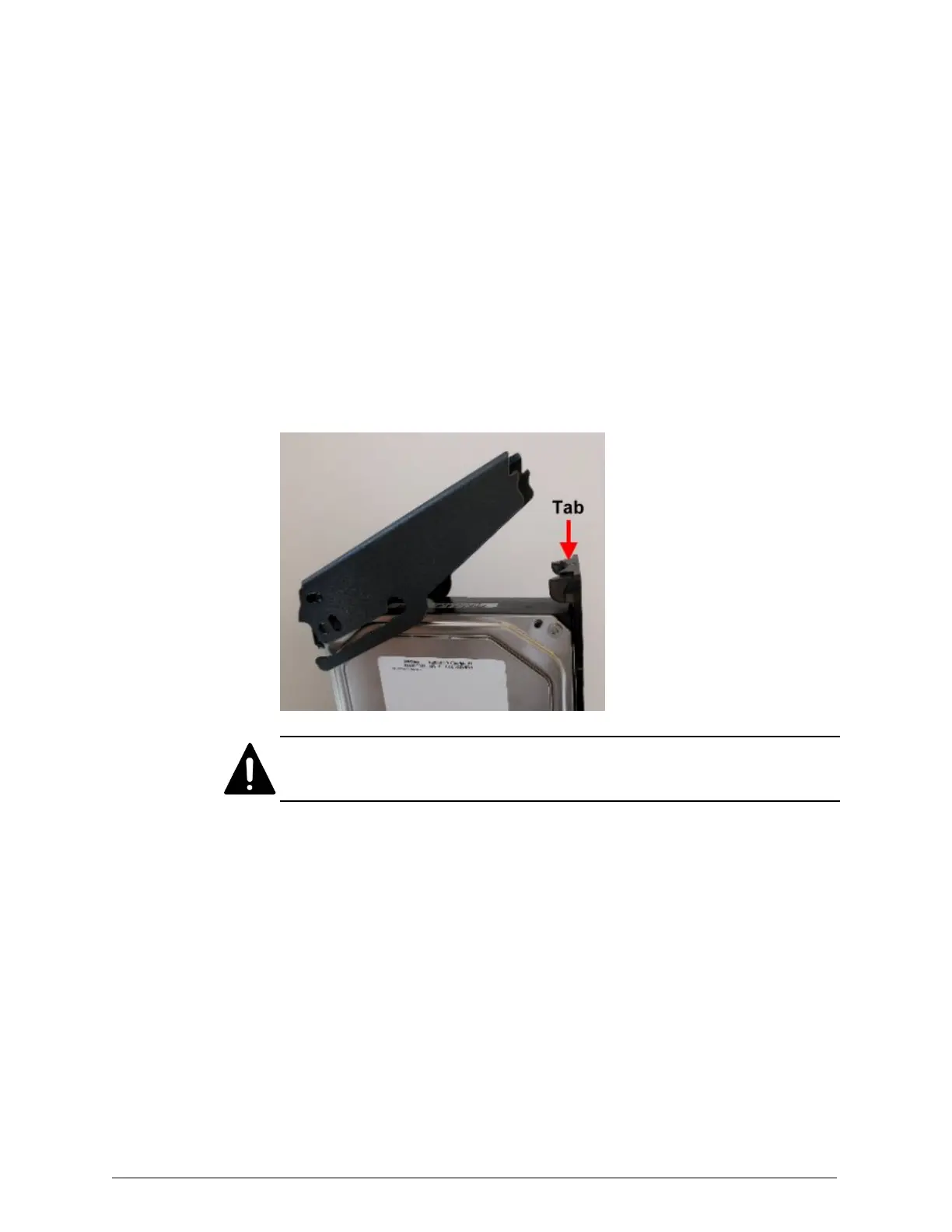

a. Push back on the tab on the top of the drive.
The latch on the top of the drive pops open.
Caution: Do not pull the latch open past a 45-degree angle. Doing
so will damage the latch.
b. Slide the drive all the way down into the slot.
c. Close the latch, pushing down until it clicks into place.
7. Close the left side of the enclosure cover.
8. Close the right side of the enclosure cover, pushing down until it clicks
into place.
