Japanese DBS systems require a transport stream multiplex frame (TSMF) layer to
carry digital signals over cable systems. When the recovered transport stream is a
multiplex frame, the STV0297E post-processes it to extract a single transport stream.
Automatic detection of the TSMF layer is provided. The chip integrates an analog-to-
digital converter that delivers the required performance to handle up to 256-QAM signals
in a direct IF sampling architecture, thus eliminating the need for external
downconversion.
7.2. Features
x Decodes ITU-T J.83-Annexes A/C and DVB-C bit streams
x Processes Japanese transport stream multiplex frame (TSMF)
x High-performance integrated A/D converter suitable for direct IF architecture in all
QAM (quadrature amplitude modulation) modes
x Supports 16, 32, 64, 128 and 256 point constellations
x Small footprint package: (10 x 10 mm²)
x Very low power consumption
x Full digital demodulation
x Variable symbol rates
x Front derotator for better low symbol rate performance and relaxed tuner
constraints
x Integrated matched filtering
x Robust integrated adaptive pre and post equalizer
x On-chip FEC A/C with ability to bypass individual blocks
x 10 programmable GPIO
x Two AGC outputs suitable for delayed AGC applications (sigma-delta outputs)
x Integrated signal quality monitors, plus lock indicator and interrupt function
mapped to GPIO pin
x Improved signal acquisition
x System clock generated on-chip from quartz crystal
x Low frequency crystal operations 4, 16, 25 - 30 MHz
x 4 I2C addresses
x Easy control and monitoring via 2-wire fast I2C bus

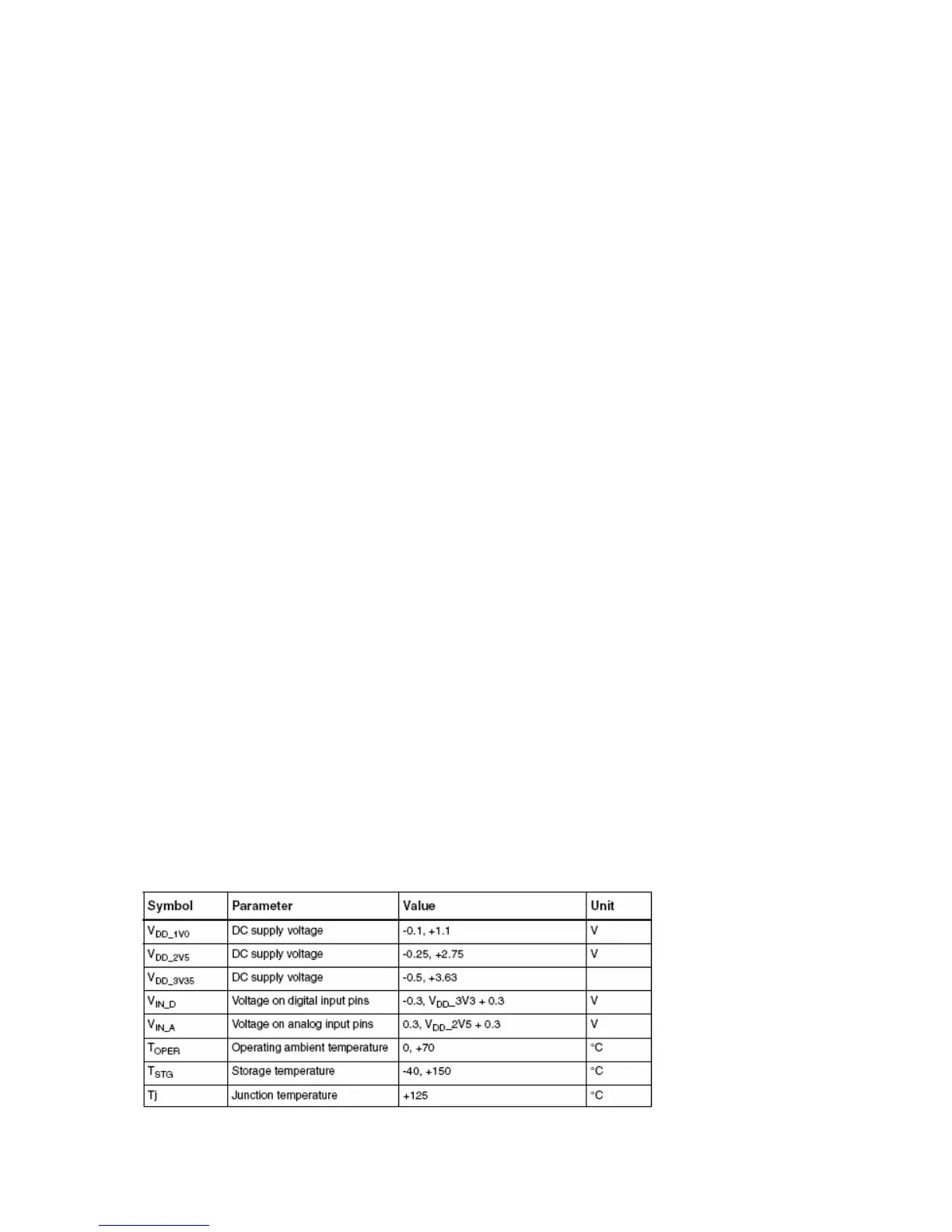

7.3. Absolute Maximum Ratings
