ESD sensitive equipment such as computers, printers, cell phones, medical equipment,
and other applications. Its integrated design provides bi-directional protection for four
separate lines using a single TSOP-5 package. This device is ideal for situations where
board space is a premium.
15.3.2. Features
x Bi-directional Protection for Four Lines in a Single TSOP-5 Package
x Low Leakage Current
x Low Capacitance
x Provides ESD Protection for JEDEC Standards JESD22
x Machine Model = Class C
x Human Body Model = Class 3B
x Provides ESD Protection for IEC 61000-4-2, 15 kV (Air), 8 kV (Contact)
x This is a Pb-Free Device

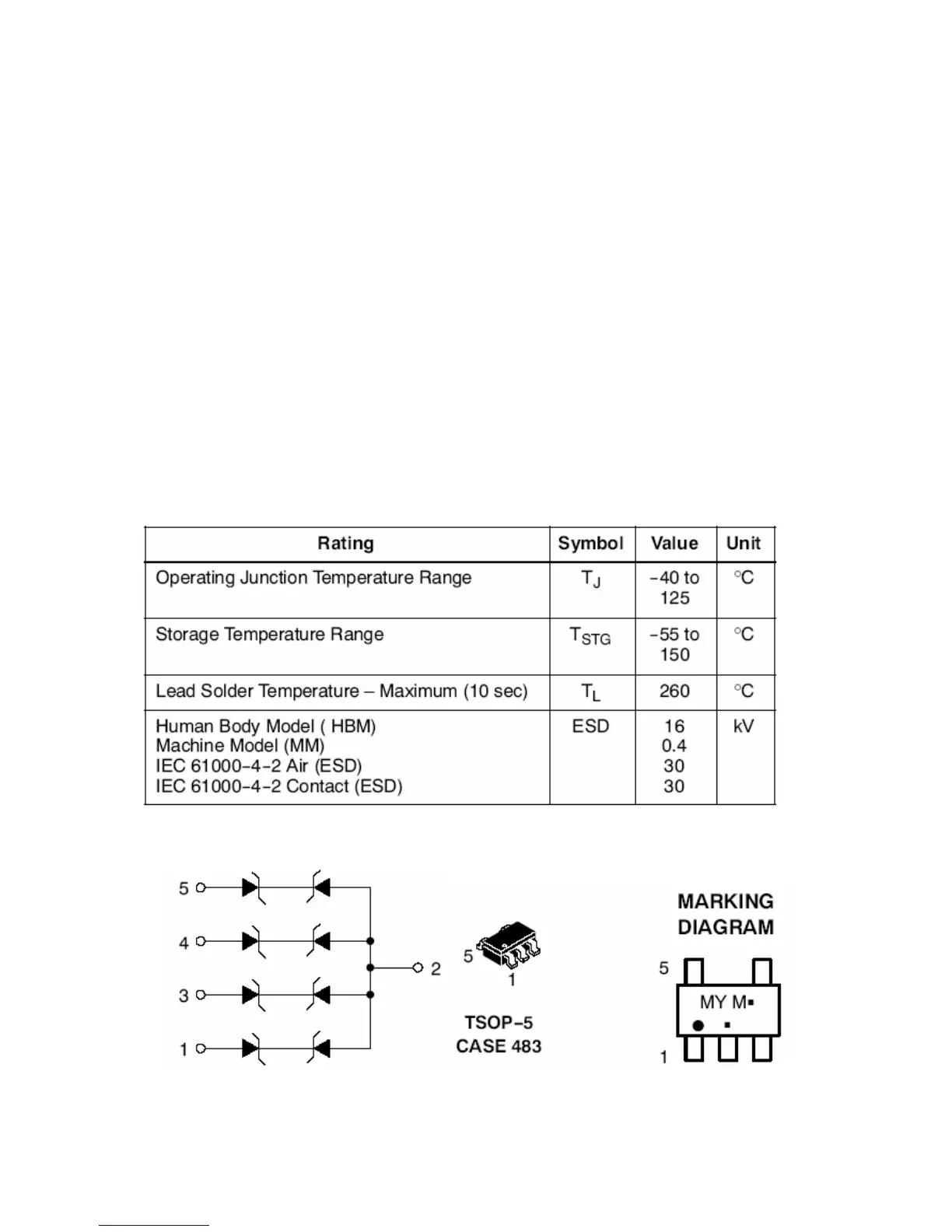

15.3.3. Absolute Maximum Ratings
15.3.4. Pinning
