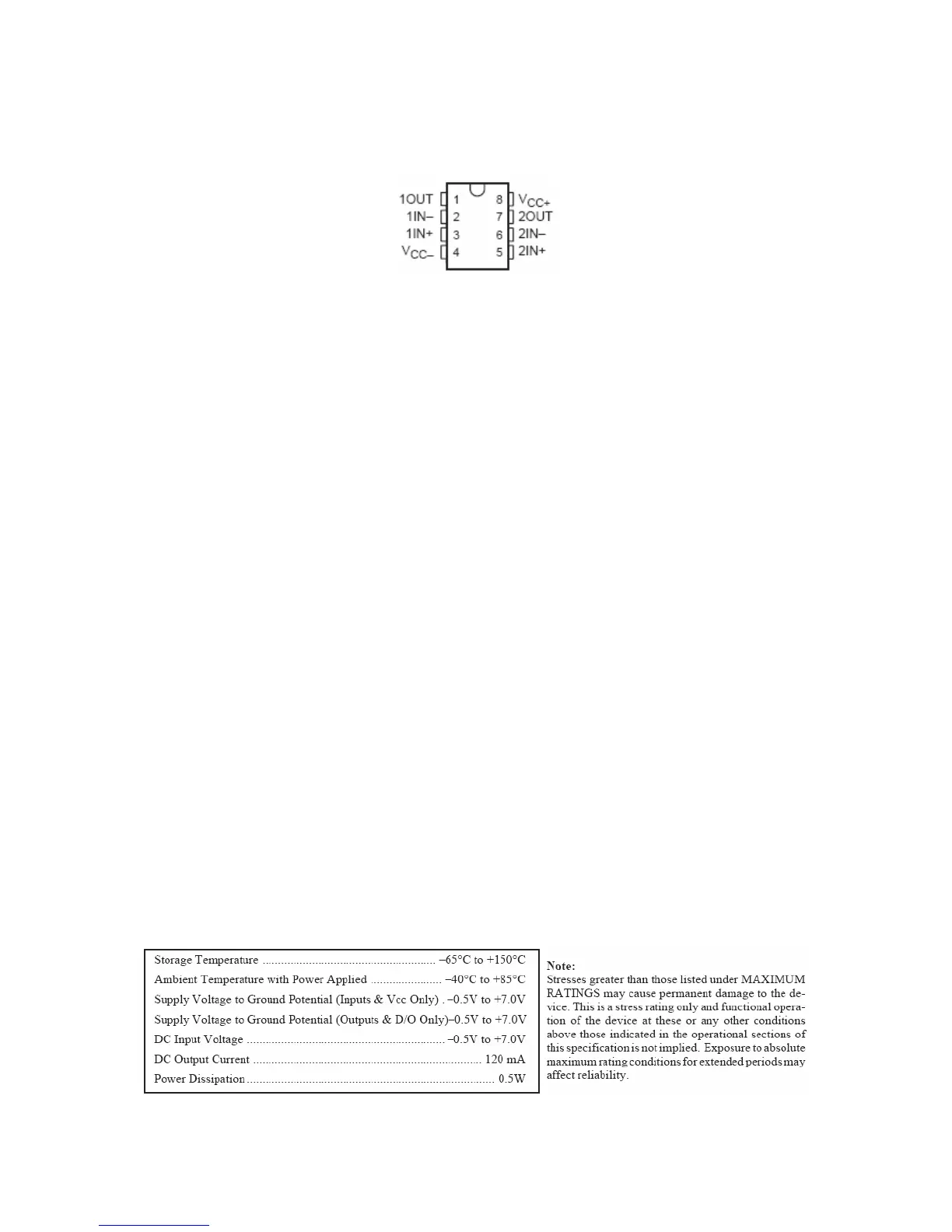

15.5.4. Pinning
15.6. PI5V330
15.6.1. General Description
Pericom Semiconductor.s PI5V series of mixed signal video circuits are produced in the
Company.s advanced CMOS low-power technology, achieving industry leading
performance. The PI5V330 is a true bidirectional Quad 2-channel
multiplexer/demultiplexer that is recommended for both RGB and composite video
switching applications. The VideoSwitch. can be driven from a current output RAMDAC
or voltage output composite video source. Low ON-resistance and wide bandwidth
make it ideal for video and other applications. Also this device has exceptionally high
current capability which is far greater than most analog switches offered today. A single
5V supply is all that is required for operation. The PI5V330 offers a high-performance,
low-cost solution to switch between video sources. The application section describes the
PI5V330 replacing the HC4053 multiplier and buffer/amplifier.
15.6.2. Features
x High-performance, low-cost solution to switch between video sources
x Wide bandwidth: 200 MHz
x Low ON-resistance: 3
x Low crosstalk at 10 MHz: .58 dB
x Ultra-low quiescent power (0.1 μA typical)
x Single supply operation: +5.0V
x Fast switching: 10 ns
x High-current output: 100 mA
x Packages available:
x 16-pin 300-mil wide plastic SOIC (S)
x 16-pin 150-mil wide plastic SOIC (W)
x 16-pin 150-mil wide plastic QSOP (Q)
15.6.3. Absolute Maximum Ratings
