10.2. IF Filter for Video Applications – Epcos K3958M
10.2.1. Standart:
x B/G
x D/K
x I
x L/L’
10.2.2. Features:
x TV IF filter with Nyquist slopes at 33.90 MHz and 38.90 MHz
x Constant group delay

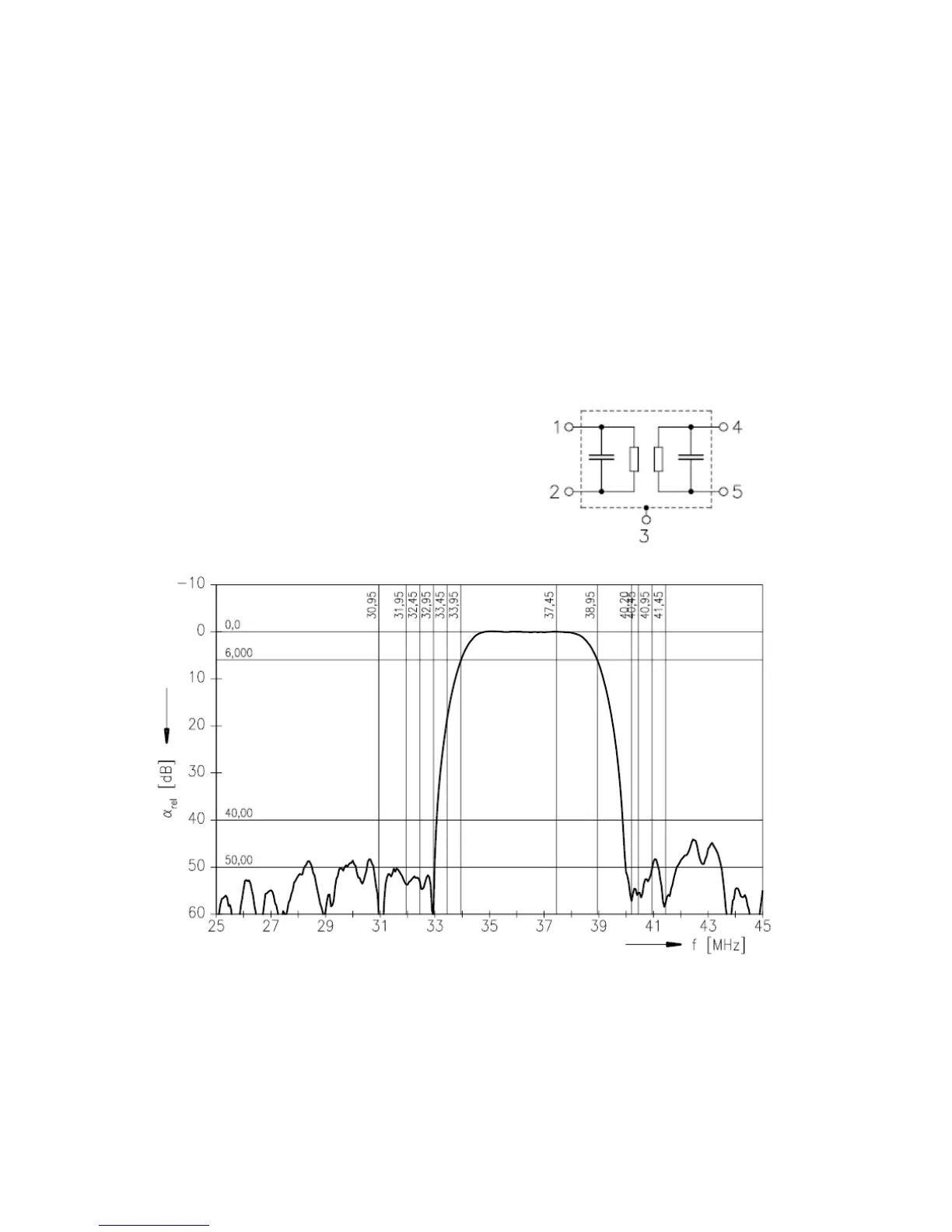

Pin configuration:
1 Input
2 Input - ground
3 Chip - carrier ground
4 Output
5 Output
10.2.3. Frequency response:
