15.17. MP2112
15.17.1. General Description
The MP2112 is a 1MHz constant frequency, current mode, PWM step-down converter.
The device integrates a main switch and a synchronous rectifier for high efficiency
without an external Schottky diode. It is ideal for powering portable equipment that
powered by a single cell Lithium-Ion (Li+) battery. The MP2112 can supply 1A of load
current from a 2.5V to 6V input voltage. The output voltage can be regulated as low as
0.6V. The MP2112 can also run at 100% duty cycle for low dropout applications.
The MP2112 is available in a space-saving 6-pin QFN package.
15.17.2. Features
x High Efficiency: Up to 95%
x 1MHz Constant Switching Frequency
x 1A Available Load Current
x 2.5V to 6V Input Voltage Range
x Output Voltage as Low as 0.6V
x 100% Duty Cycle in Dropout
x Current Mode Control
x Short Circuit Protection
x Thermal Fault Protection
x <0.1μA Shutdown Current
x Space Saving 3mm x 3mm QFN6 Package

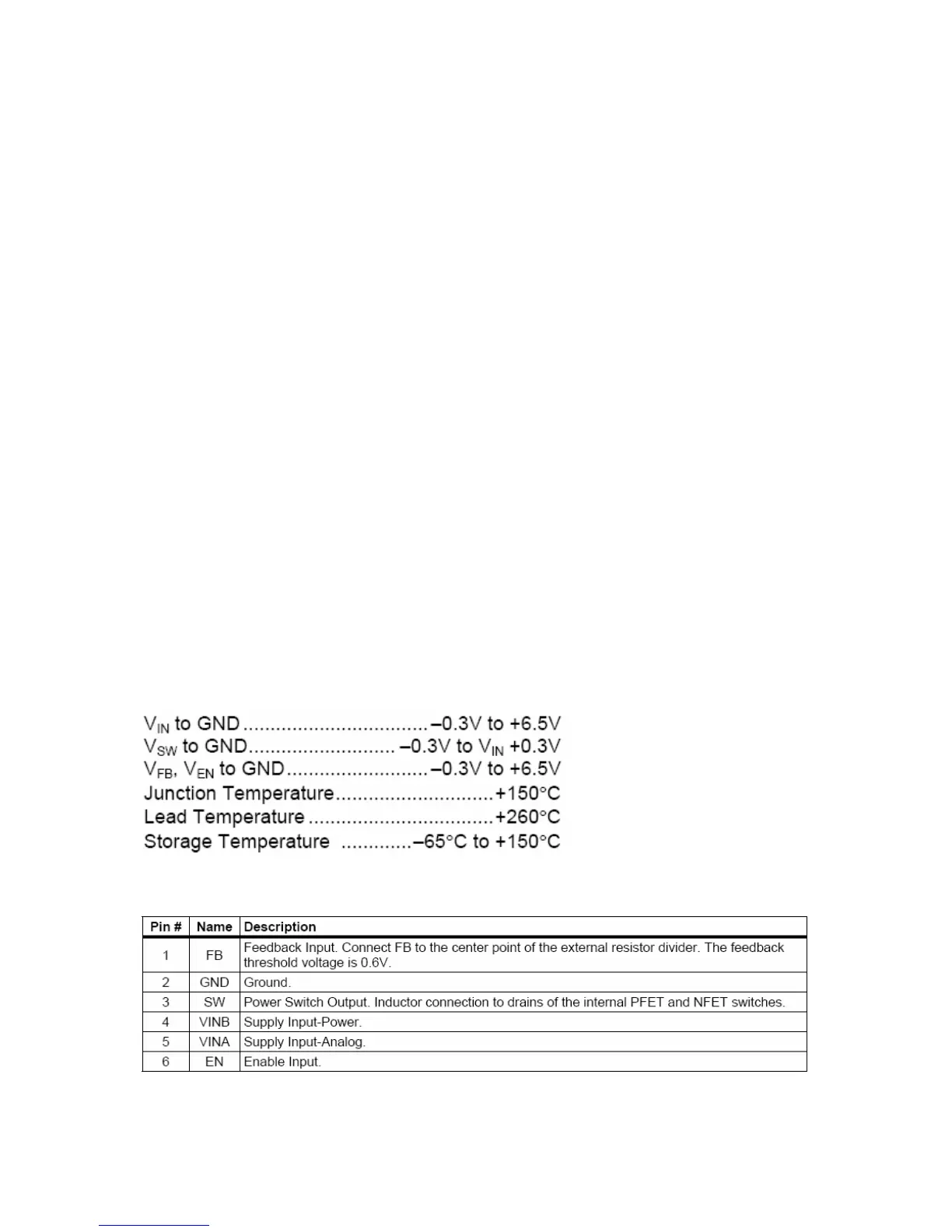

15.17.3. Absolute Maximum Ratings
15.17.4. Pinning
