x Dual internal bank controlled by A11 (bank select)
x Single 3.3V power supply
x LVTTL interface
x Programmable burst length (1, 2, 4, 8, full page)
x Programmable burst sequence:Sequential/Interleave
x 4096 refresh cycles every 64 ms
x Random column address every clock cycle
x Programmable CAS latency (2, 3 clocks)
x Burst read/write and burst read/single write operations capability
x Burst termination by burst stop and precharge command
x Byte controlled by LDQM and UDQM
x Industrial temperature up to 143 MHz
x Packages 400-mil 50-pin TSOP-II, 60-ball fBGA
x Lead-free package option

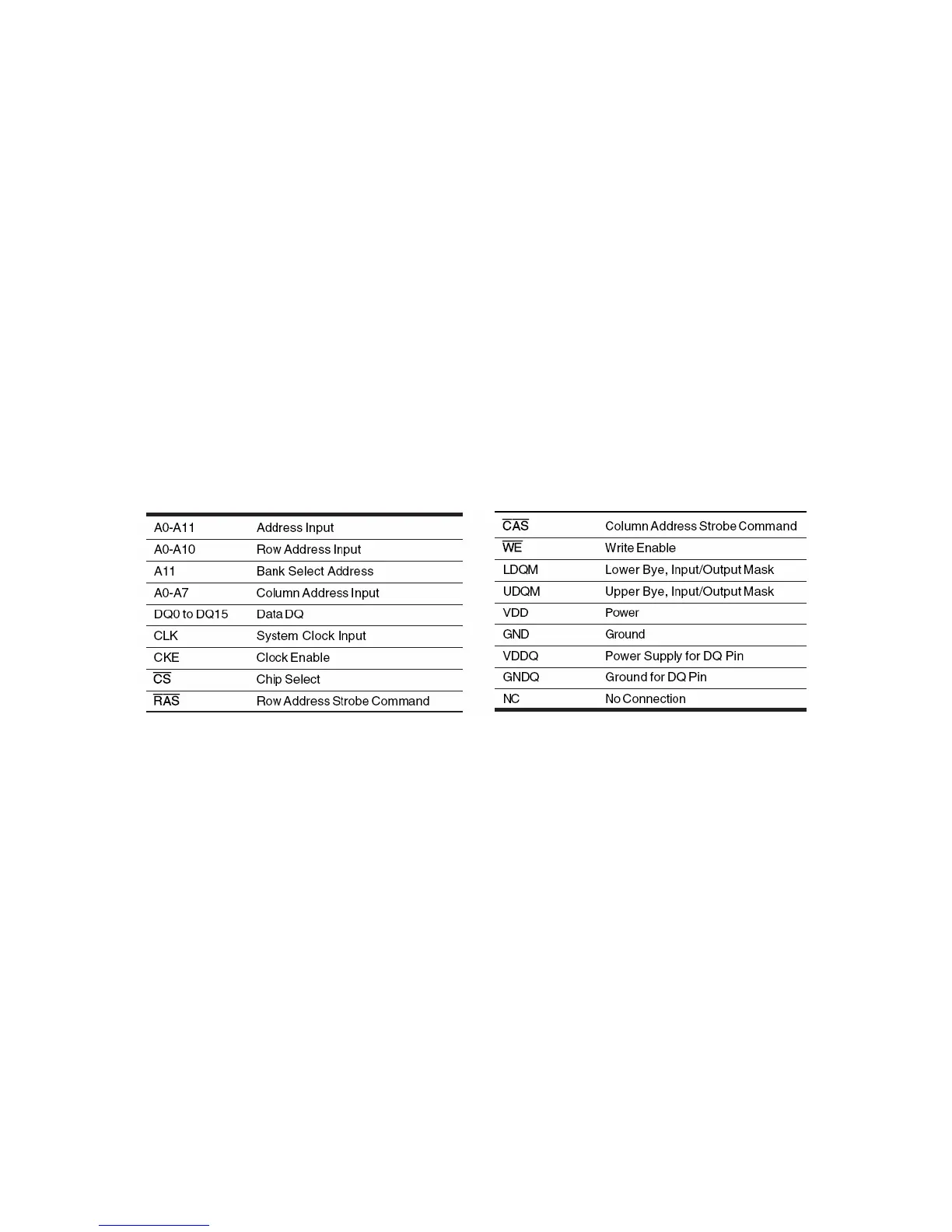

9.3. Pinning
10. SAW FILTER
10.1. IF Filter for Audio Applications – Epcos K9656M
10.1.1. Standart:
x B/G
x D/K
x I
x L/L’
10.1.2. Features:
x TV IF audio filter with two channels
x Channel 1 (L’) with one pass band for sound carriers at 40,40 MHz (L’) and 39,75
MHz (L’- NICAM)
x Channel 2 (B/G,D/K,L,I) with one pass band for sound carriers between 32,35
MHz and 33,40 MHz
