150
PMML0140A rev.1 - 07/2009
ELENCO DEI
COMPONENTI e DISEGNI
QUOTATI
PARTE II INSTALLAZIONE

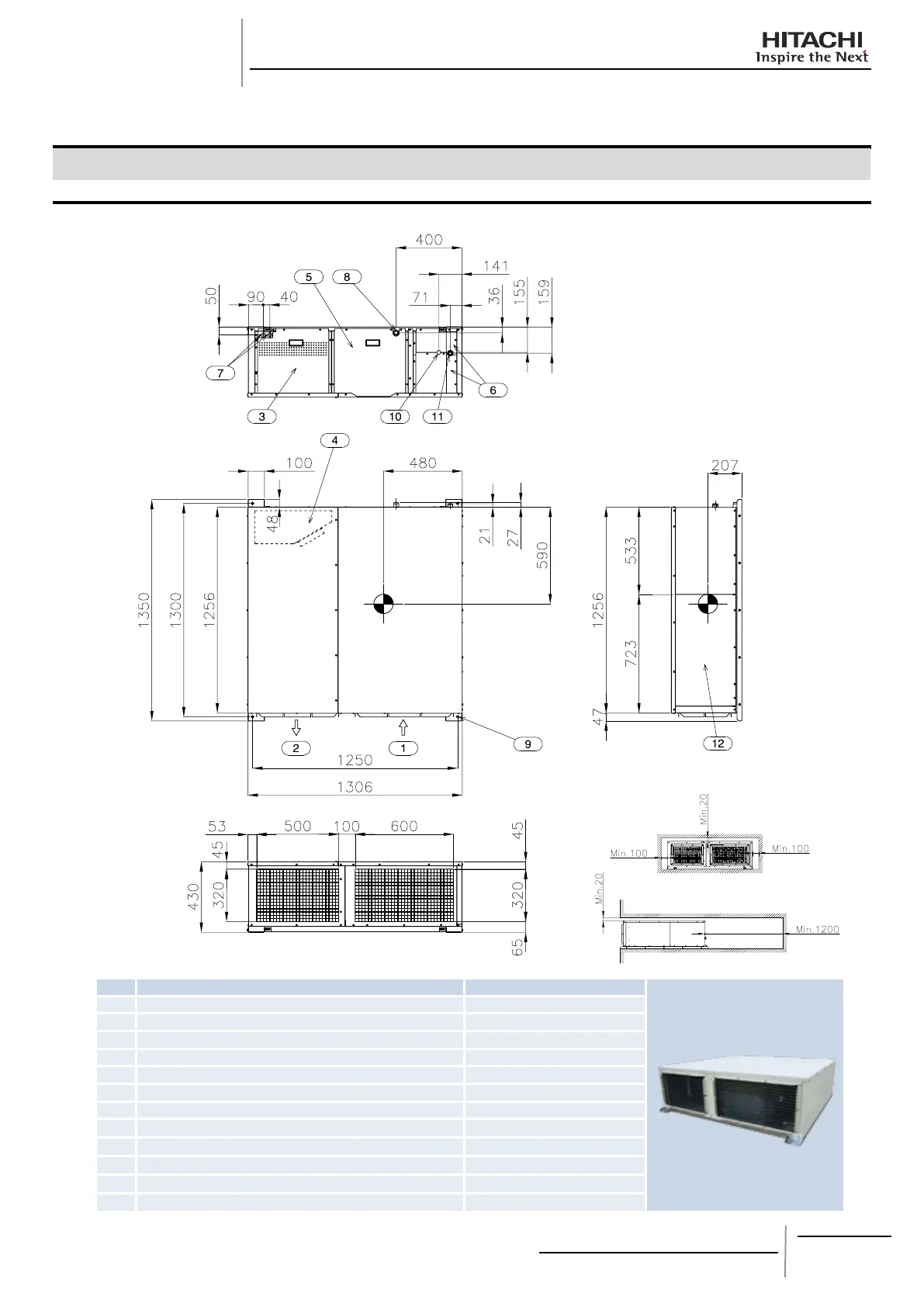

8. NOMENCLATURA DEI COMPONENTI E DISEGNI QUOTATI
8.1. RASC-3/5HVRNE
Spazio d’installazione
N. Descrizione Note
1 Ingresso aria
2 Uscita aria
3 Coperchio del quadro elettrico
4 Quadro elettrico
5 Coperchio servizio ventola
6
Coperchio valvole di arresto
7 Fori per collegamenti elettrici 2-Ø32
8 Linea di drenaggio Ø26
9 Fori per il ssaggio dell’unità 4-Ø14x16
10 Linea liquido refrigerante Attacco a cartella: Ø9.53 (3/8”)
11 Linea gas refrigerante Attacco a cartella: Ø15.88 (5/8”)
12 Ingresso aria opzionale
