278
PMML0140A rev.1 - 07/2009
DELAR OCH MÅTT
DEL II INSTALLATION

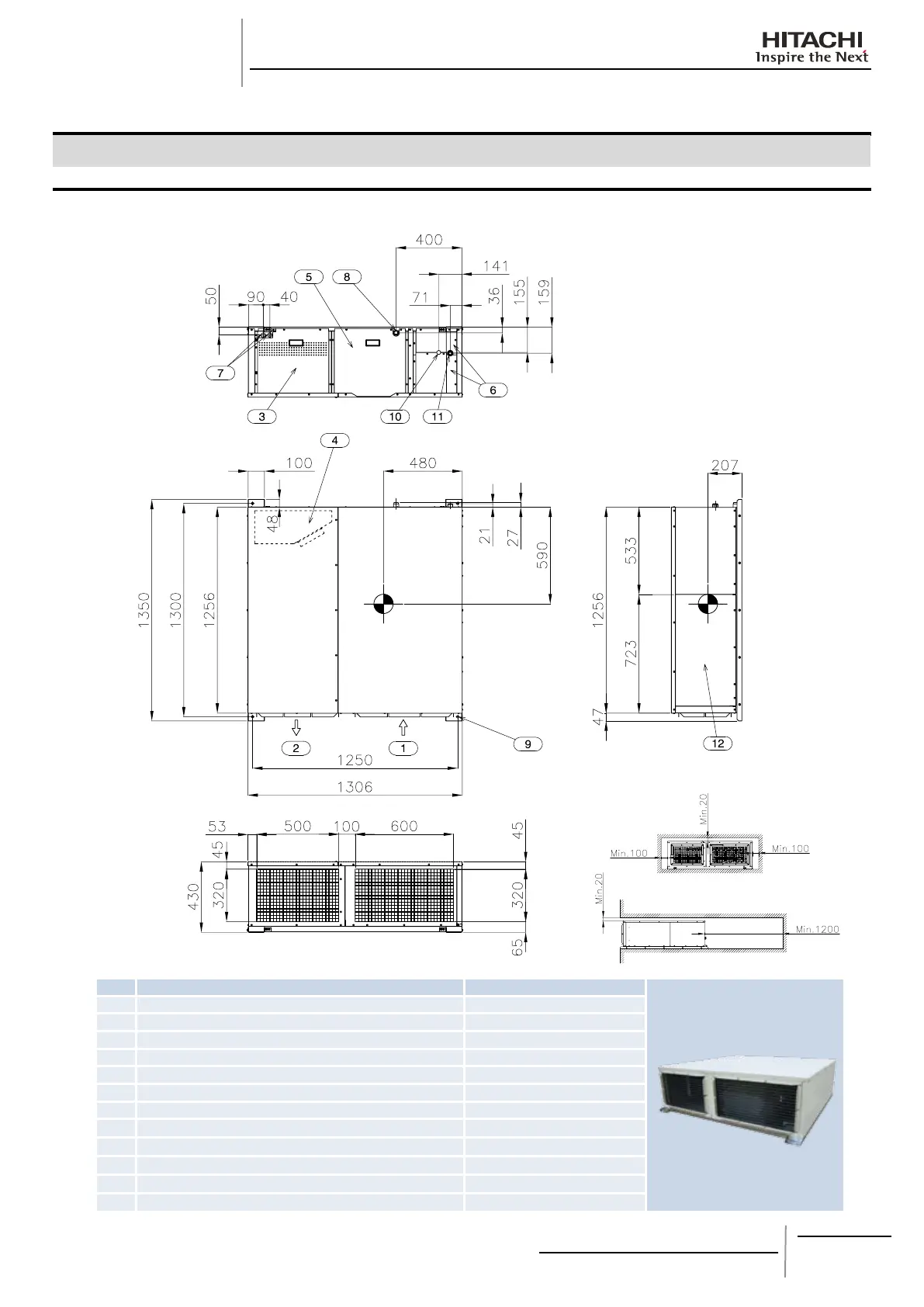

8. DELAR OCH MÅTT
8.1. RASC-3/5HVRNE
Installationsplats
Nr Beskrivning Kommentarer
1 Luftintag
2 Luftutlopp
3 Kopplingslådans hölje
4 Kopplingslåda
5 Fläktens servicelucka
6
Skydd för stoppventiler
7 Hål för kabelanslutningar 2-Ø32
8 Dräneringsrör Ø26
9 Hål för att fästa enheten 4-Ø14x16
10 Kylvätskerör Flänsmutter: Ø9.53 (3/8”)
11 Kylgasrör Flänsmutter: Ø15.88 (5/8”)
12 Möjligt luftintag
