Hitachi UTOPIA RASC Series User Manual

22
PMML0140A rev.1 - 07/2009
NAME OF PARTS &
DIMENSIONAL DATA
PART II INSTALLATION

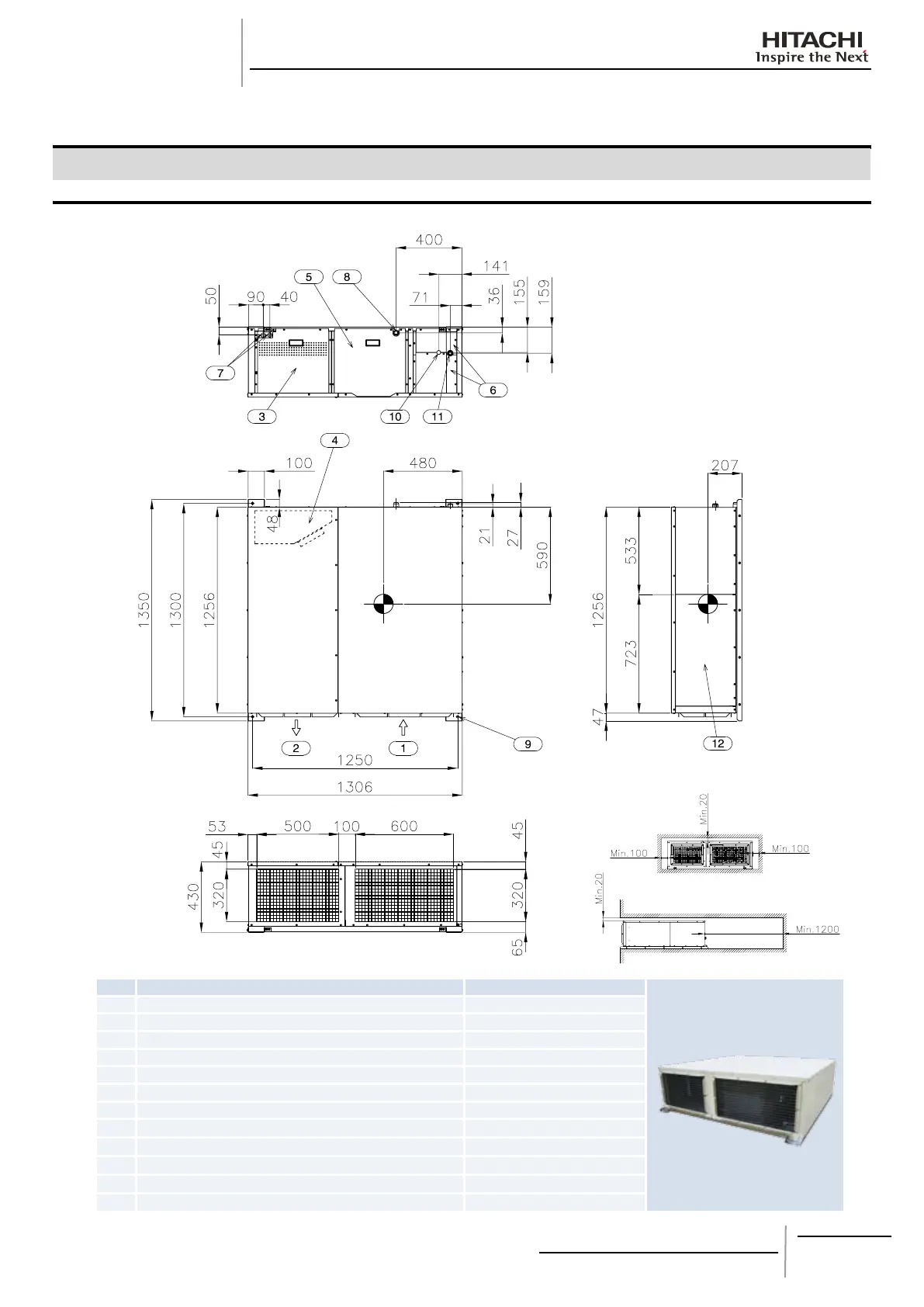

8. NAME OF PARTS & DIMENSIONAL DATA
8.1. RASC-3/5HVRNE
Installation space
No. Description Remarks
1 Air inlet
2 Air outlet
3 Electrical box cover
4 Electrical box
5 Fan service cover
6
Stop valves cover
7 Holes for wiring connections 2-Ø32
8 Drain pipe Ø26
9 Holes for xing unit 4-Ø14x16
10 Refrigerant liquid pipe Flare nut: Ø9.53 (3/8”)
11 Refrigerant gas pipe Flare nut: Ø15.88 (5/8”)
12 Optional air inlet
