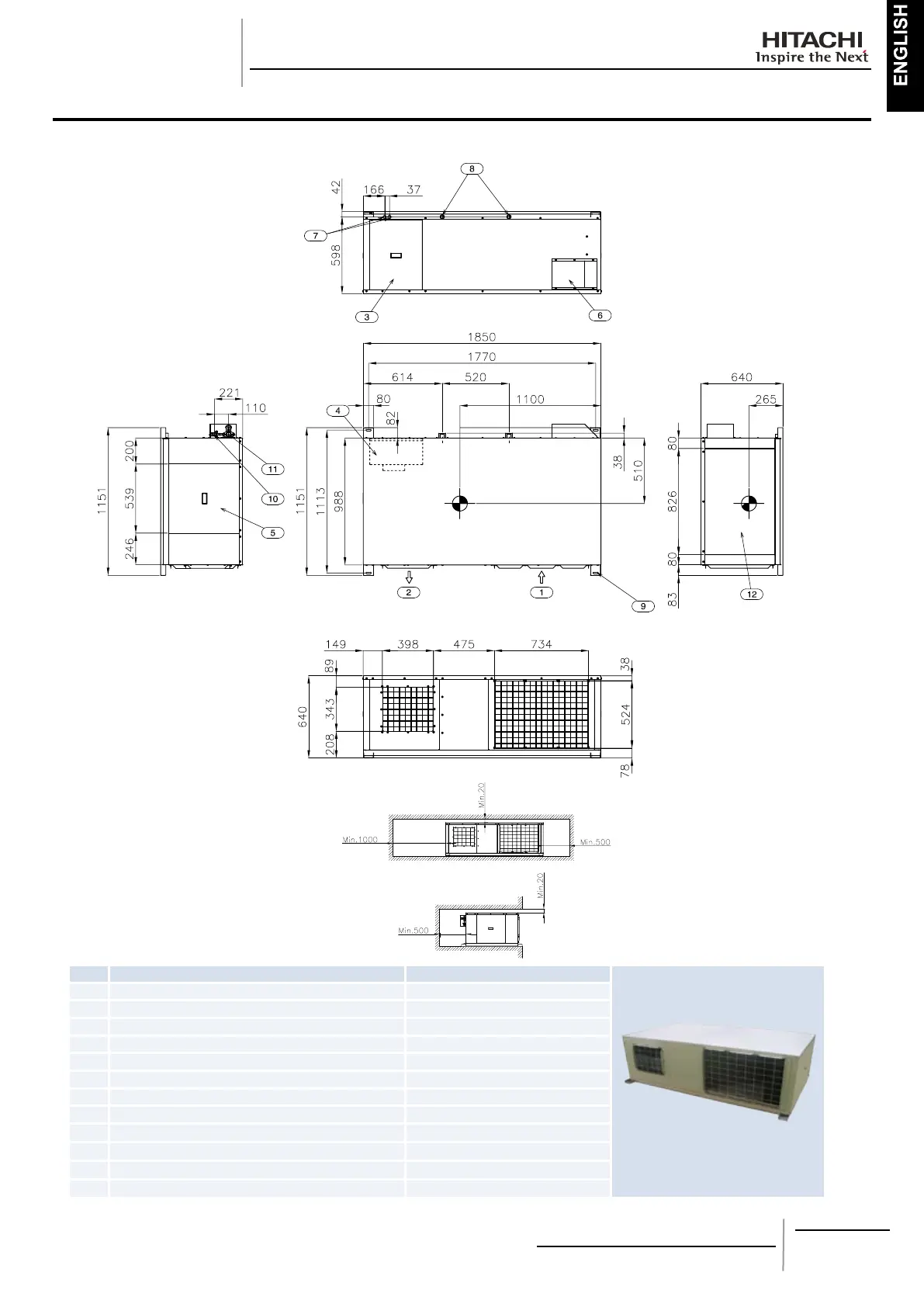

NAME OF PARTS &
DIMENSIONAL DATA
8.2. RASC-10HRNE
No. Description Remarks
1 Air inlet
2 Air outlet
3 Electrical box cover
4 Electrical box
5 Fan service cover / Optional air outlet
6
Stop valves protection
7 Holes for wiring connections 2-Ø25
8 Drain pipe 2-Ø30
9 Holes for xing unit 4-Ø12x28
10 Refrigerant liquid pipe Flare nut: Ø12,7 (1/2”)
11 Refrigerant gas pipe Flare nut: Ø25,4 (1”)
12 Optional air inlet
