24
PMML0140A rev.1 - 07/2009
REFRIGERANT CYCLE

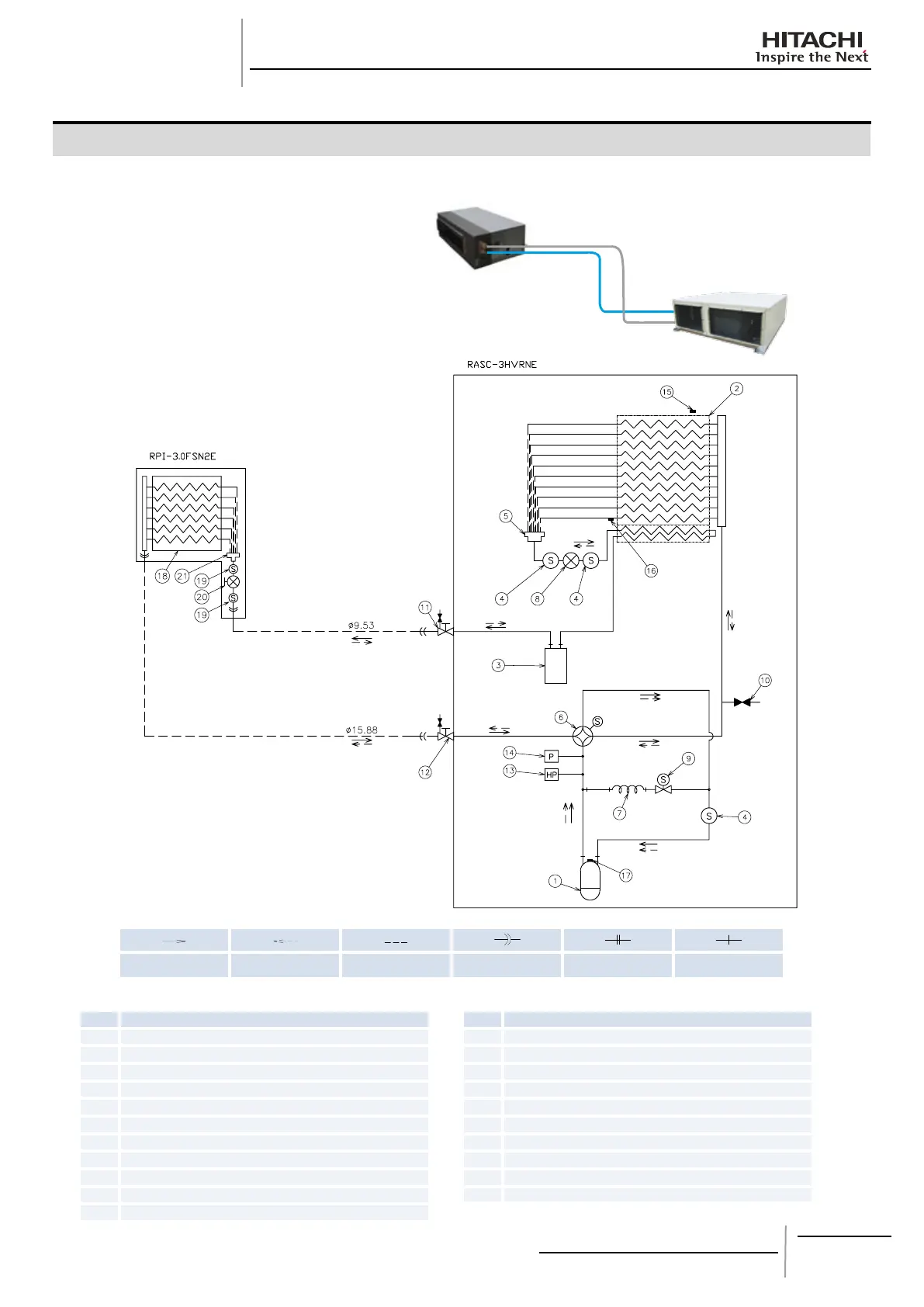

9. REFRIGERANT CYCLE
RASC-3HVRNE
Cooling Refrigerant
Flow
Heating Refrigerant
Flow
Installation Refrigerant
Piping Line
Flare Nut Connectiion Flange Connection Brazing Connection
Nº Name of Item
1 Compressor
2 Heat exchanger
3 Liquid tank
4 Strainer
5 Distributor
6 Revercing valve
7 Capilary tube
8 Electronic expansion valve
9 Solenoid valve
10 Check joint
11 Stop valve for liquid line
Nº Name of Item
12 Stop valve for gas line
13 High pressure switch for protection
14 Pressure switch for control
15 Ambient thermistor
16 Condenser pipe thermistor
17 Discharge gas thermistor
18 Indoor exchanger
19 Strainer
20 Electronic expansion valve
21 Distributor
To Next Page
