Hitachi UX2 - On-Line／Off-Line Transmission; Current Time Output Transmission

57
Time T2 when there is a data matrix, QR code, Micro QR, GS1 Data Bar and Dotcode setting
When multiple barcodes are set, add T2 minimum time for each of them.

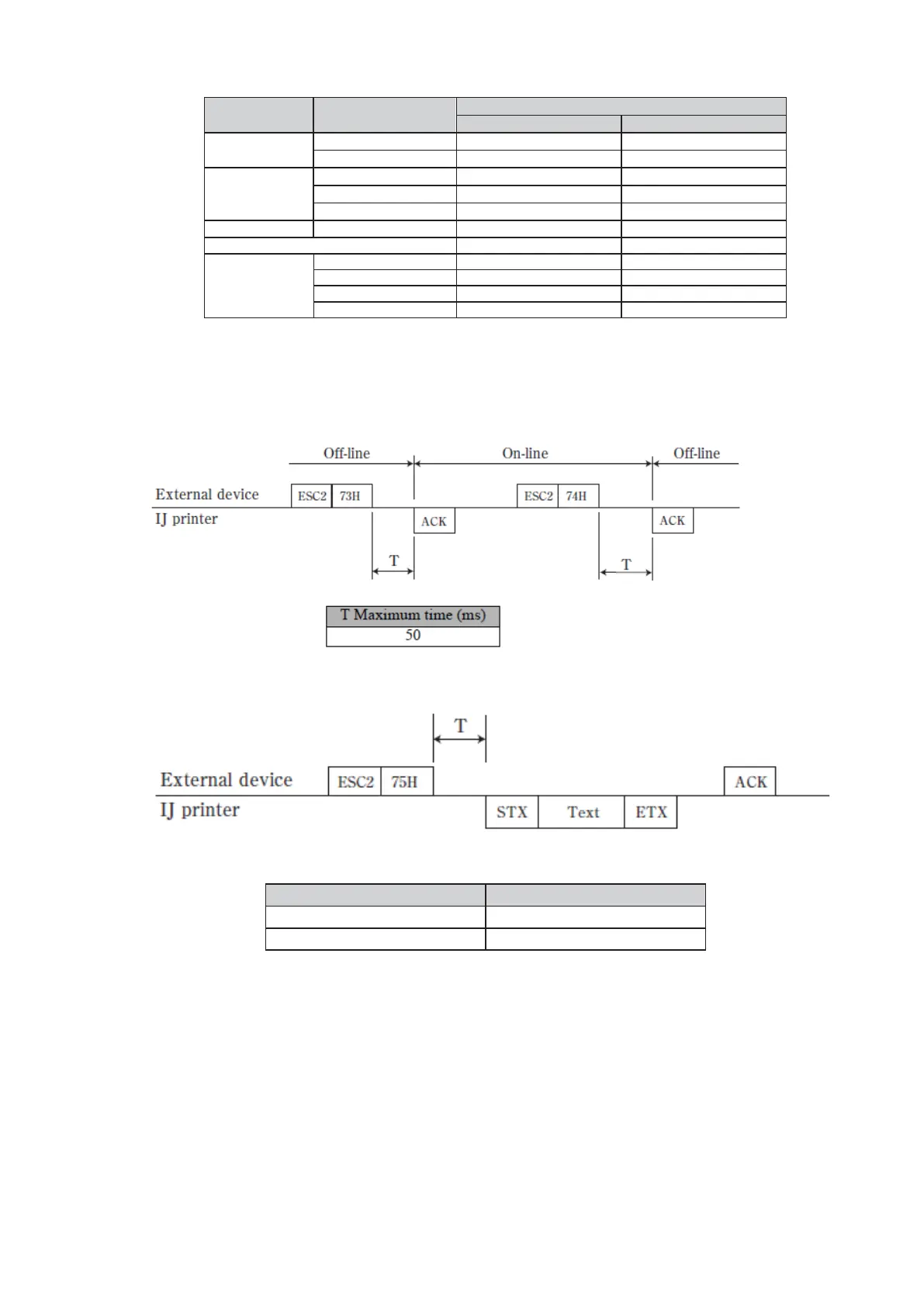

1.5.2-3 On-line／Off-line Transmission
1.5.2-4 Current Time Output Transmission
Baud Rate（bps）
T Maximum Time（ms）
150 to 1200
15
2400 to 115200
5
Bar code type
Character size
T2 Minimum Time
(
ms
)
Within 24 items
25 items or more
Data matrix
5×8, 10×12
300
600
12×16,18×24
300
600
QR code
QR（21×21）
300
600
QR（25×25）
400
600
QR（29×29）
500
700
Micro QR
（15×15）
300
600
GS1 data bar
300
600
Dotcode
Vert. 7/8/10 dots
400
600
Vert. 12 dots
500
700
Vert. 14 dots
700
800
Vert. 16 dots
800
900
