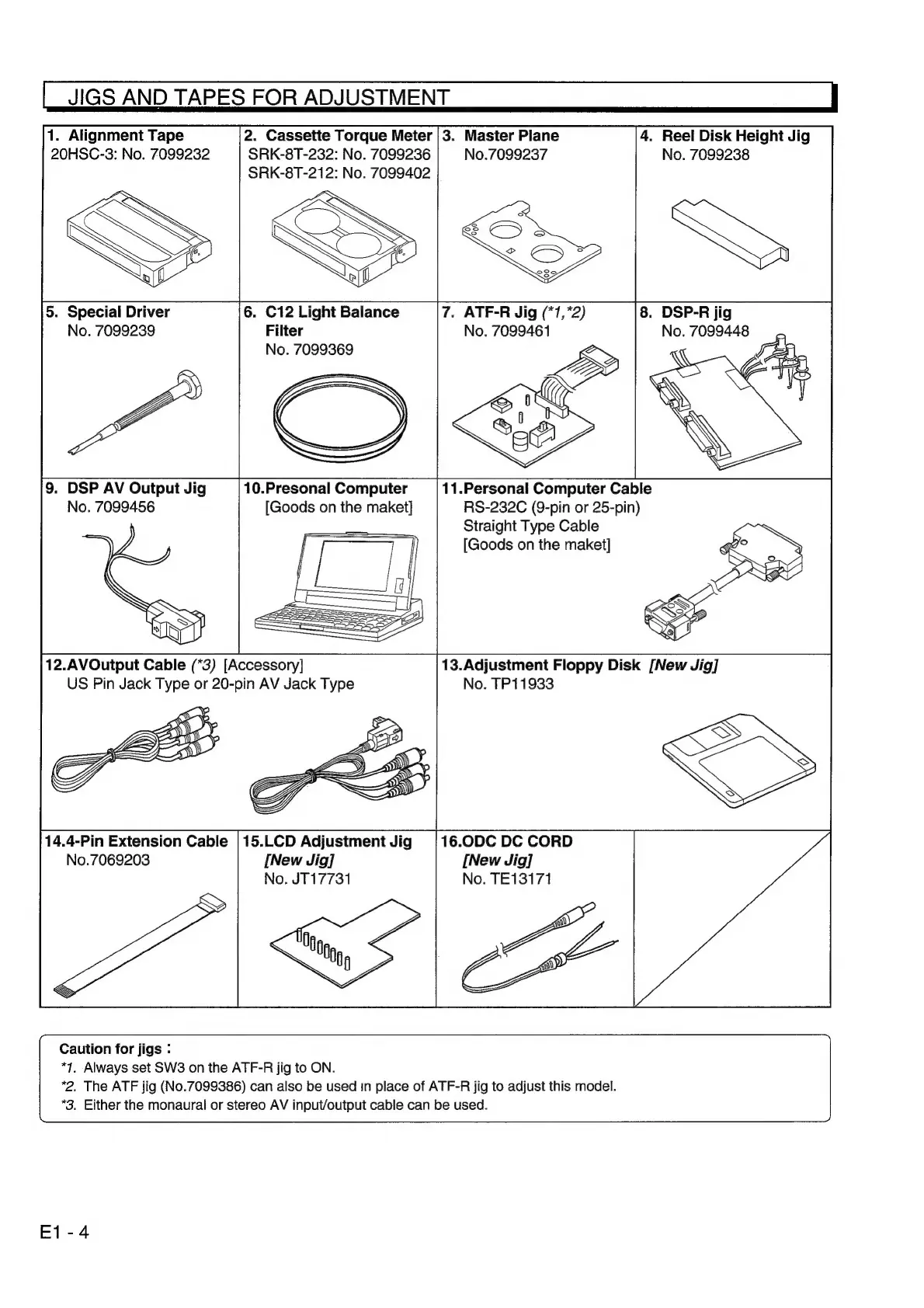

JIGS AND TAPES FOR ADJUSTMENT
1. Alignment Tape 2. Cassette Torque Meter |3. Master Plane 4.
20HSC-3: No. 7099232 SRK-8T-232: No. 7099236
SRK-8T-212: No. 7099402
5. Special Driver 6. C12 Light Balance
No. 7099239 Filter
No. 7099369
No.7099237
7. ATF-R Jig (*1,*2) 8.
No. 7099461
9. DSP AV Output Jig 10.Presonal Computer
No. 7099456 [Goods on the maket]
12.AVOutput Cable (*3) [Accessory]
US Pin Jack Type or 20-pin AV Jack Type
a
——_ >
14.4-Pin Extension Cable | 15.LCD Adjustment Jig
No.7069203 [New Jig]
No. JT17731
wine Pa
Neve
11.Personal Computer Cable
RS-232C (9-pin or 25-pin)
Straight Type Cable
[Goods on the maket]
Reel Disk Height Jig
No. 7099238
DSP-R jig
No. 7099448
13.Adjustment Floppy Disk [New Jig]
No. TP11933
16.0DC DC CORD
[New Jig]
No. TE13171
gy
Ce
Caution for jigs :
*7. Always set SW3 on the ATF-R jig to ON.
*2. The ATF jig (No.7099386) can also be used in place of ATF-R jig to adjust this model.
*3. Either the monaural or stereo AV input/output cable can be used.
E1-4
