HOW TO USE THE EXTENSION CABLES AND JIGS
[NameofJig [Parts No. |
4-Pin Extension Cable 7069203
ODC DC Cord TE13171
Installed between the VCA circuit board and mode switch (mechanism state switch).
Power supply cable for power shut off level (ODC) adjustment.
Positive: Black
Negative: Black & White
LCD
Celine ADJUSTMENT
BOARD JIG
4-PIN EXT.CABLE
AUD
CIRCUIT
BOARD
To
PSW CIRCUIT
BOARD
ODC
DC CORD HTS7343
™* To BOARD
TW SWITCH &
REC SWITCH

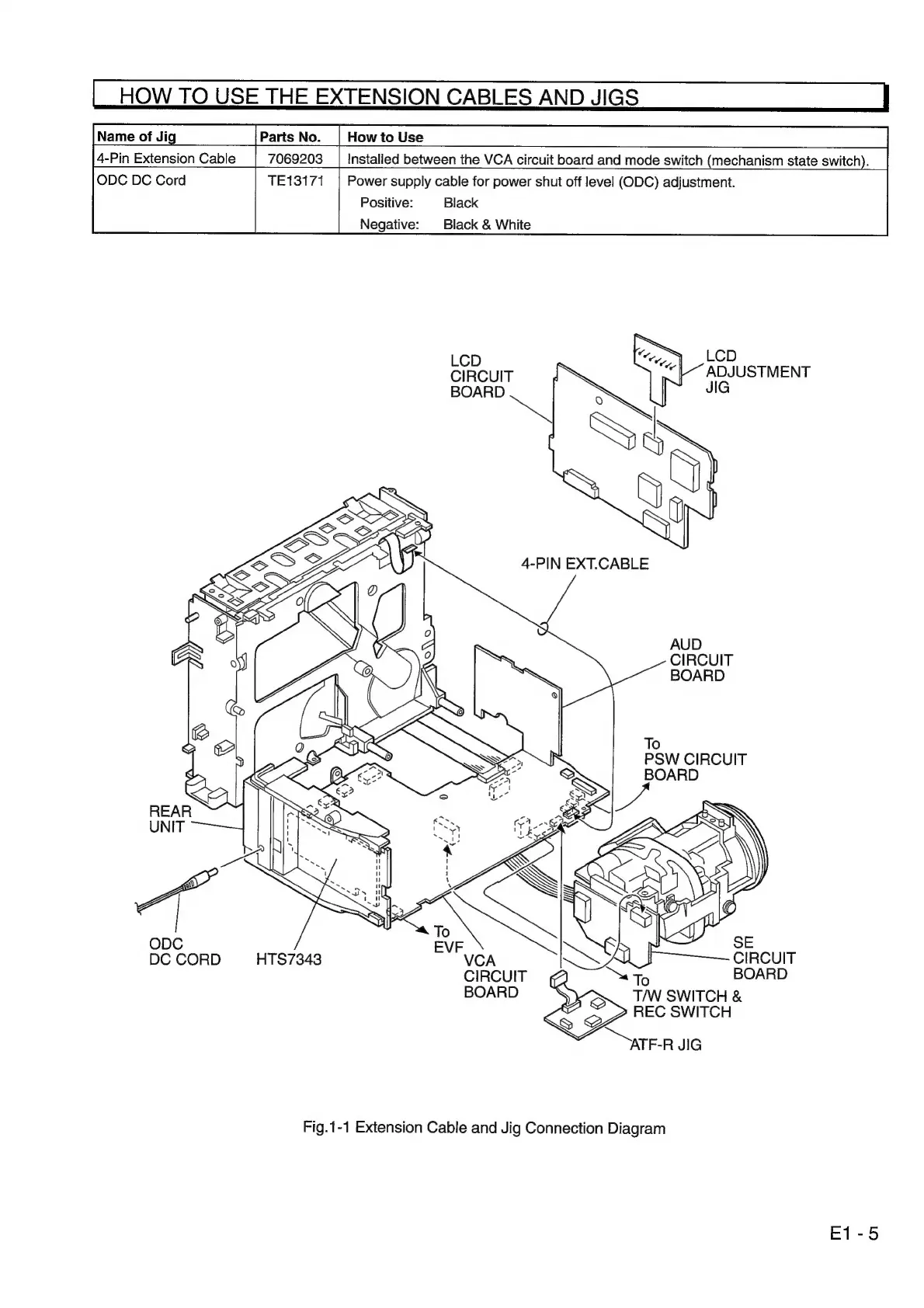

Fig.1-1 Extension Cable and Jig Connection Diagram
F1-5
