OPTIONAL ATTACHMENTS AND DEVICES
13-90
METRIC MEASURE
ZX280LCN-3 Mono block boom, Arm 2.42 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
6.0 6740 * 4990 7.46
4.5 9590 * 9590 * 6870 * 4270 8.11
3.0 12340 * 9550 8950 * 6430 6820 3920 8.44
1.5 10050 * 6110 7990 4510 6660 3790 8.49
0 14720 * 8810 10690 * 5920 7870 4400 6850 3870 8.27
-1.5 10360 * 10360 * 14390 * 8820 10750 * 5870 7850 4390 7510 4220 7.75
-3.0 18020 * 17680 13290 * 8970 10040 * 5960 8470 * 5030 6.86
-4.5 14540 * 14540 * 10790 * 9320 8710 * 7190 5.42
ZX280LCN-3 Mono block boom, Arm 3.11 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
6.0 5960 * 5960 * 5910 * 5070 4730 * 4340 8.19
4.5 8240 * 8240 * 6940 * 6940 * 6330 * 4930 4730 * 3790 8.78
3.0 11000 * 9900 8240 * 6550 6990 * 4730 5560 * 3550 4890 * 3500 9.09
1.5 13310 * 9160 9500 * 6180 7690 * 4520 6090 3460 5220 * 3390 9.14
0 14450 * 8820 10380 * 5920 7850 4370 5800 * 3440 8.93
-1.5 6820 * 6820 * 10250 * 10250 * 14590 * 8730 10730 * 5810 7770 4300 6570 3690 8.45
-3.0 11900 * 11900 * 16480 * 16480 * 13930 * 8810 10410 * 5830 7820 4350 7620 4250 7.65
-4.5 16970 * 16970 * 12190 * 9060 8980 * 6030 8170 * 5560 6.39
NOTE: When the lifting hook is used, the maximum allowable lifting load is 10 tons.

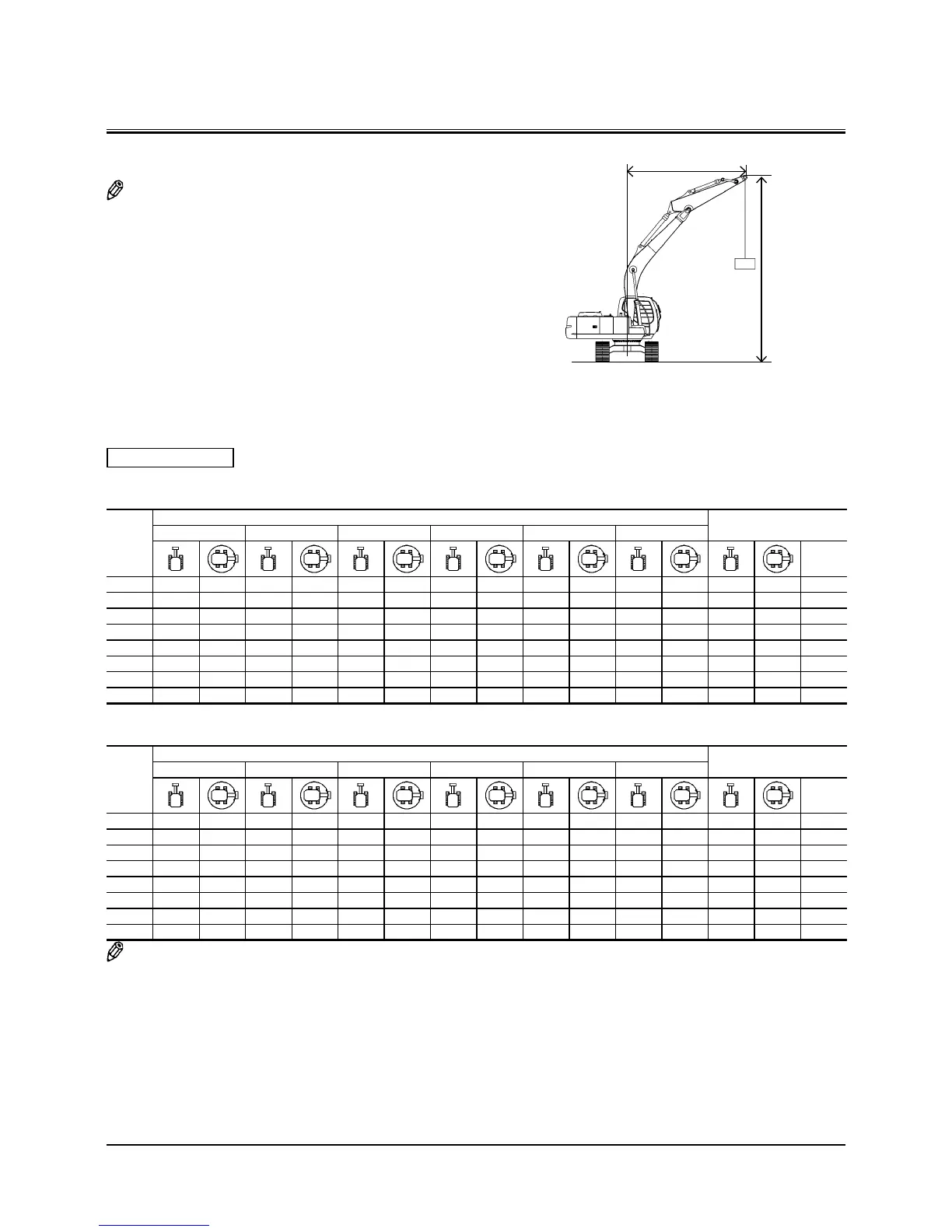

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
A
C
B
M1G6-13-013
