OPTIONAL ATTACHMENTS AND DEVICES
13-91
METRIC MEASURE
ZX280LCN-3 Mono block boom, Arm 3.76 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
7.5 5160 * 5160 * 3950 * 3950 * 7.94
6.0 5250 * 5180 3810 * 3810 * 8.82
4.5 6160 * 6160 * 5750 * 5010 5250 * 3700 3820 * 3440 9.37
3.0 9700 * 9700 * 7520 * 6690 6480 * 4790 5950 * 3590 3950 * 3190 9.66
1.5 12320 * 9830 8910 * 6270 7270 4560 6110 3470 4210 * 3080 9.70
0 6510 * 6510 * 13940 * 8870 9990 * 5950 7850 4370 6000 3370 4640 * 3120 9.51
-1.5 6490 * 6490 * 9930 * 9930 * 14540 * 8680 10570 * 5780 7730 4260 5880 * 3330 5360 * 3300 9.06
-3.0 10280 * 10280 * 14500 * 14500 * 14280 * 8680 10570 * 5740 7710 4250 6650 * 3720 8.32
-4.5 14880 * 14880 * 18780 * 17350 13080 * 8850 9740 * 5850 7700 * 4620 7.18
-6.0 14480 * 14480 * 10220 * 9250 8160 * 7120 5.41
NOTE: When the lifting hook is used, the maximum allowable lifting load is 10 tons.

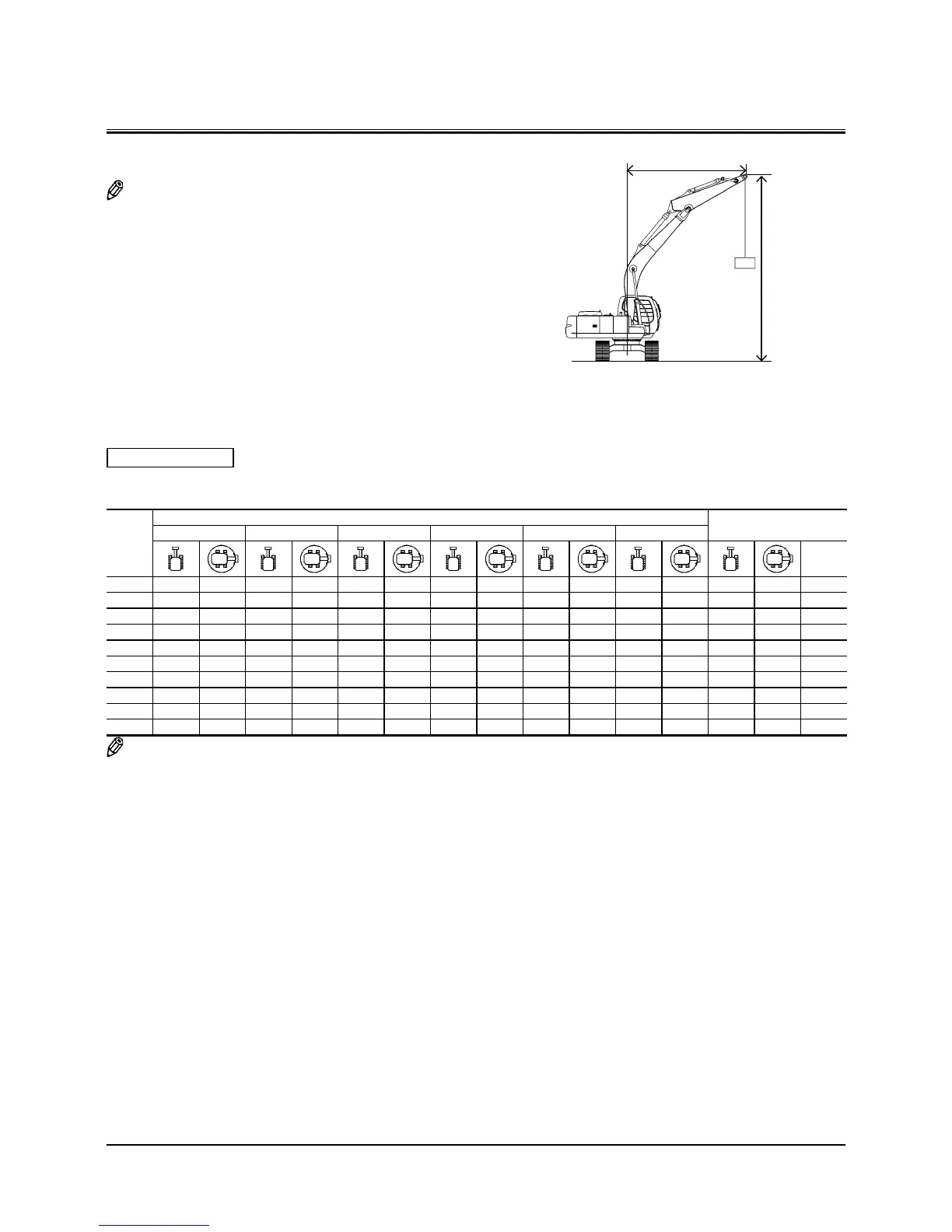

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
A
C
B
M1G6-13-013
