A99UE13-1304
28

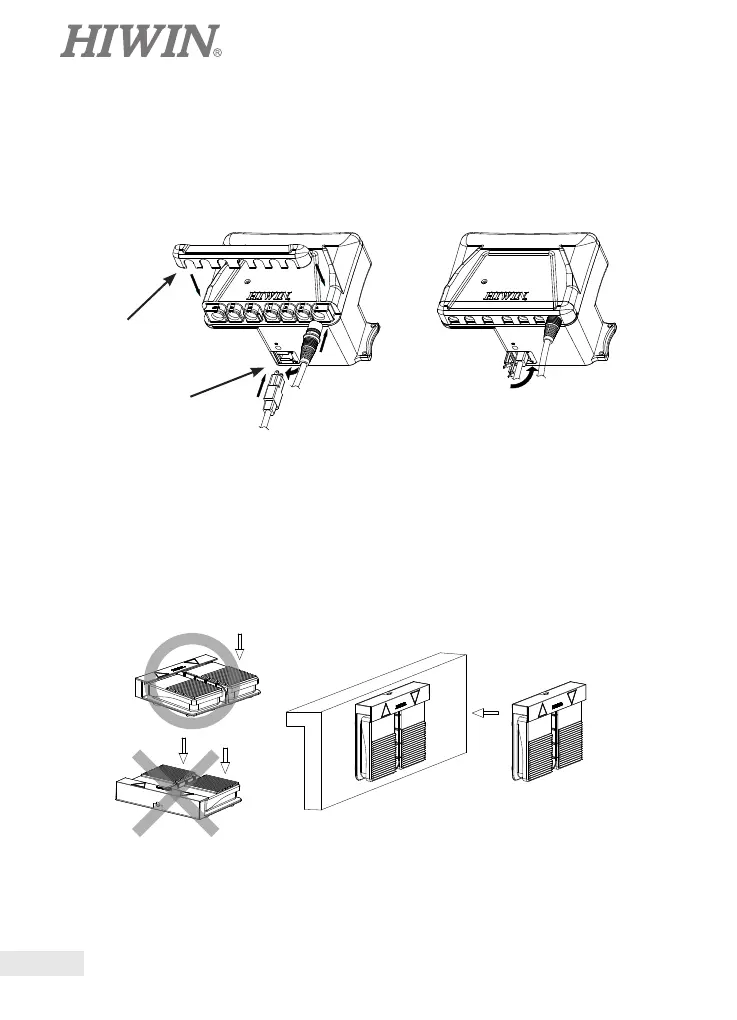

6. Installation of LAK4N Fixer: Vertically and upwardly remove a xer (A) from
LAK4N controller. After inserting connectors of an actuator and key box, vertically
insert back a xer (Fig. 3) along the arrow direction. Before inserting main power
cord, rotate out the locker (B) along the arrow direction to insert power cord (Fig. 1)
and then pull it back (Fig. 4) along the arrow direction.
A
B
Fig. 3
Fig. 4
7. Installation of LAFS Pedal Switch: The pedal switch can directly place on the
ground to use. Dont stamp on two pedals simultaneously. In addition, there is a
powerful magnet attached on the back of pedal switch. Users can use it to attach
on the surface of iron metal for convenient movement.
Don't stamp on two pedals simultaneously.
