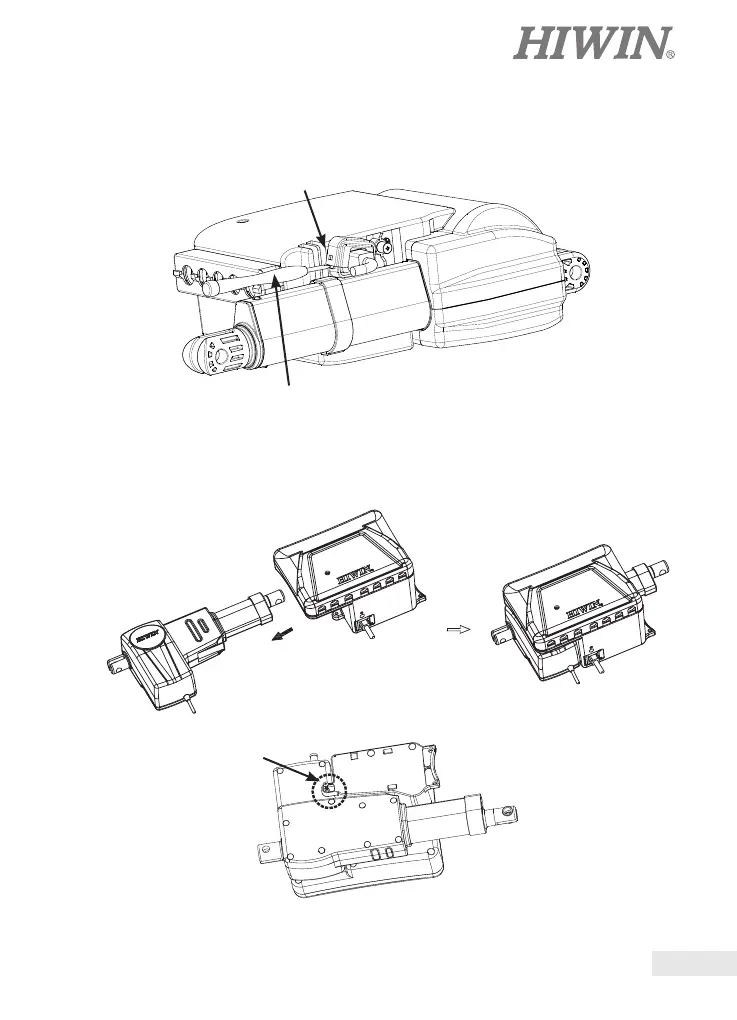

4.3.2 Using a screwdriver to prize the bottom of power cord xer on LAK4D
controller (Fig. 6-D).
5. LAN1 and LAK4N Installation: Align a bolt on LAK4N controller with LAN1 notch
to insert downward(Fig. 1). There is one 3/16”*20 lock screw circled in Fig.2 to x
an actuator and controller.
Fig. 6
D
Key
Fig. 1
Fig. 2
Lock Screw
