128

Scheduled Maintenance

1-877-HOG-ROAD WWW. STRIPEHOGSUPPORT.COM

130

Item Part Number Description

K26488

Deflector

K51737

Plunger Coupling

K53562

#6 Plunger

K53563

#7 Plunger

K53564

#8 Plunger

K54102

Gland Nut

K26465

O-Ring

K27480

#6 Guide Bushing

K27481

#7 Guide Bushing

K27482

#8 Guide Bushing

K54117

#6 Packing

K54118

#7 Packing

K54119

#8 Packing

K54097

#6 Sleeve

K54098

#7 Sleeve

K54099

#8 Sleeve

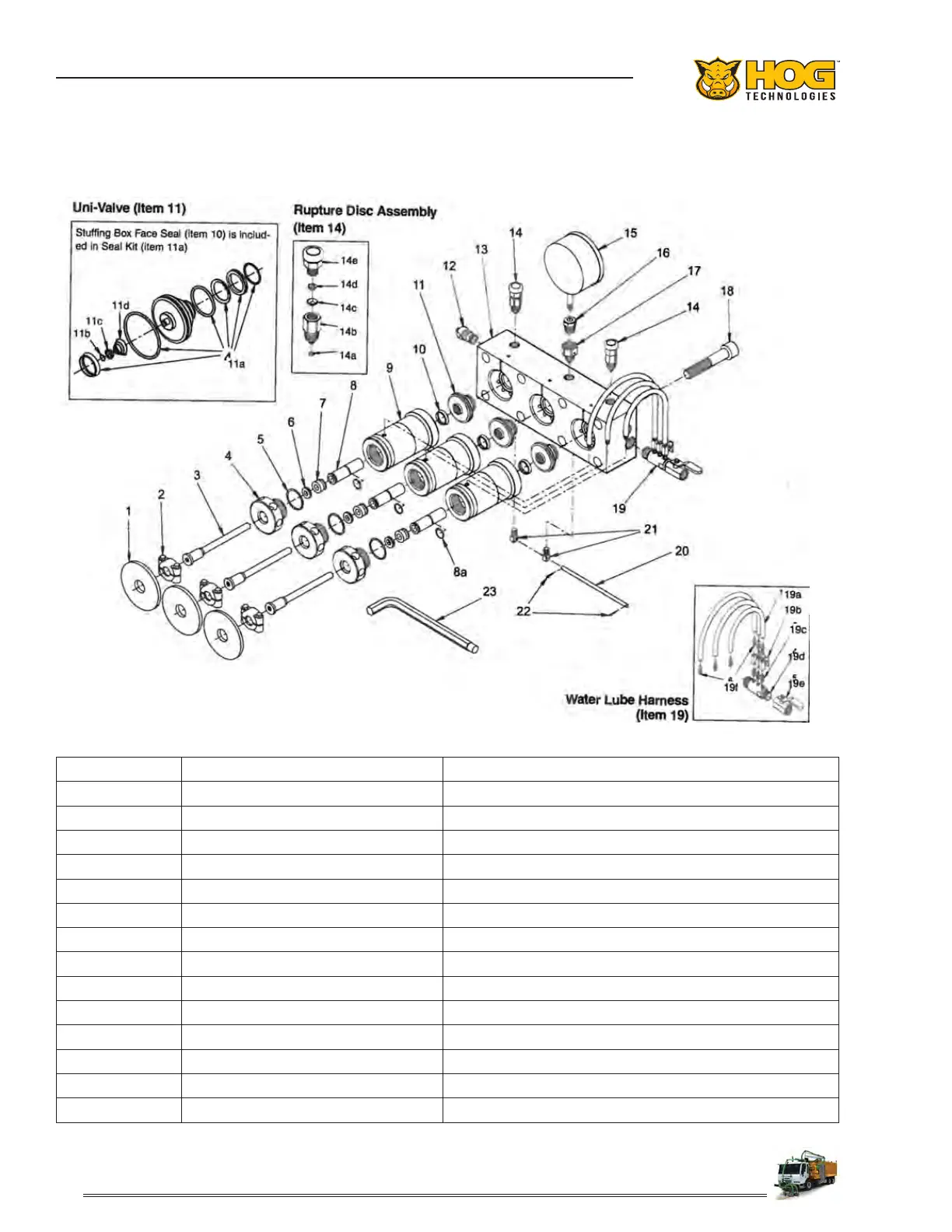

5.8 Ultra High Pressure Pump Assembly

ITEM PART NUMBER DESCRIPTION

1 K26488 Deector

2 K51737 Plunger Coupling

3 K53562 #6 Plunger

K53563 #7 Plunger

K53564 #8 Plunger

4 K54102 Gland Nut

5 K26465 O-ring

6 K27480 #6 Guide Bushing

K27481 #7 Guide Bushing

K27482 #8 Guide Bushing

7 K54117 #6 Packing

K54118 #7 Packing

K54119 #8 Packing

8 K54097 #6 Sleeve

Default Chapter3
- Table of Contents3
- Welcome7
- Hog Technologies Limited Warranty8
- Caution & Warning Labels9
Section 111
Safety Information11
- General Safety11
- Blasting Safety12
- Nozzle Safety14
- Hose Safety14
- High Pressure Fitting Safety15
- Dumping Safety15
Section 217
Stripe Hog Systems17
- Stripe Hog System Introduction17
- Ultra-High Pressure Water System17
- Hog Arm and Hog Heads27
- Hog Head31
- Thru-Shaft, Spray Bars, Protectors and Nozzles35
- High Pressure Hoses, Connections & Fittings43
- Vacuum Recovery System45
- Handheld Pressure Washer55
- Auxiliary Blasting Tool Connection57
- Electrical System59
- Console Switch Panel61
- Joystick Console63
- Programmable Logic Controller65
- Skip Meter, Skip Speed Remote Control & Video System67
- Waterblasting Hydraulic System69
- Hydrostatic Drive Pump & Motor72
- Engine & Drivetrain72
- Truck Drive System and PTO73
- UHP Pump & Blower Drive Belts77
- Inspection Platform, Access Ladders & Air Hose Connection78
Section 381
Waterblasting Operation81
- Start Up/Shutdown Introduction81
- Pre-Start Inspection82
- Operate Mode/Waterblasting System Startup Procedure83
- Waterblasting Operations86
- Skip Speed Remote Control89
- Dumping Debris Procedure90
- Operate Mode/Waterblasting System Shutdown Procedure92
- Emergency Shutdown Procedure94
- Operating in Freezing Conditions95
- Operation Routine Maintenance96
Section 497
Lubrication & General Maintenance97
- Lubrication & General Maintenance Introduction97
- Lubrication & Grease Point Locations98
- Standoff Adjustment Procedure100
- Clean Water Filter Replacement102
- Bleeding Air from Charge Water Pump104
- Wear Brush Assembly Adjustment105
- Dirt Shield Replacement106
- Nozzle Installation107
- Rupture Disc Replacement109
- Swivel Seal Replacement110
- Vacuum Canister & Filter112
Section 5113
Scheduled Maintenance113
- Scheduled Maintenance Introduction113
- Periodic Maintenance Items113
- High Pressure Hose Installation115
- Ultra High Pressure Pump Scheduled Maintenance116
- Checking UHP Pump Oil Level & Changing Crankcase Oil118
- High Pressure Pump UNI-VALVE Service121
- High Pressure Pump Stuffing Box Packing Replacement125
- Ultra High Pressure Pump Assembly128
- Diverter Valve Assembly130
- Manual Bypass Valve131
- Vacuum Blower Scheduled Maintenance132
- Checking & Changing Blower Gear Case Oil133
- Blower & UHP Pump Drive Belt Adjustment Procedure135
- Vacuum Hose Replacement & Rotation Procedure138
- Shroud Installation139
- Hydraulic System Scheduled Maintenance141
- Changing Hydraulic Fluid & Flushing Tank141
- Replacing Hydraulic Filters142
- OMSI Drive144
- Winterization & Storage Procedures145
- Thru-Shaft Motor Bearing Pre-Load150
- SH8000 Maintenance Matrix165
Appendix 1: Troubleshooting167
- Waterblasting System Troubleshooting167
Appendix 1167
Appendix 2173
- Mobile Spare Parts System174
Tools & Spare Parts173
Appendix 3: Daily Report & Pre-Op Checklist175
- Daily Report175
- Pre-Op Checklist176
Appendix 4177
Nozzle & Spray Bar Configuration177
- Nozzle Configuration Chart177
- Spray Bar Configuration Charts178
- Nozzle Calculation Sheet183
Glossary of Terms185
- Waterblasting Terms185
Appendix 5185
Appendix 6: Customer Support & Support Web Site189
- Customer Support189
