5.10 Manual Bypass Valve
The manual bypass valve should be inspected and lubricated every 200 hours to keep it operating
properly. Replace components as required.
1-877-HOG-ROAD WWW. STRIPEHOGSUPPORT.COM
132
Item Part # Description
1
K52145
Adjustment Knob
2
K53714
Body
3
K53726
Cartridge
4
K53727
Diffuser
5
K26453
O-Ring
6
K27642
O-Ring
7
K53725
Backup Ring
9
K50796
Latching Arm
10
K25594
CapScrew
11
K53720
Outlet Adapter
12
K27645
Nipple
Not Shown
K25933
Outlet Hose (Order in Feet)

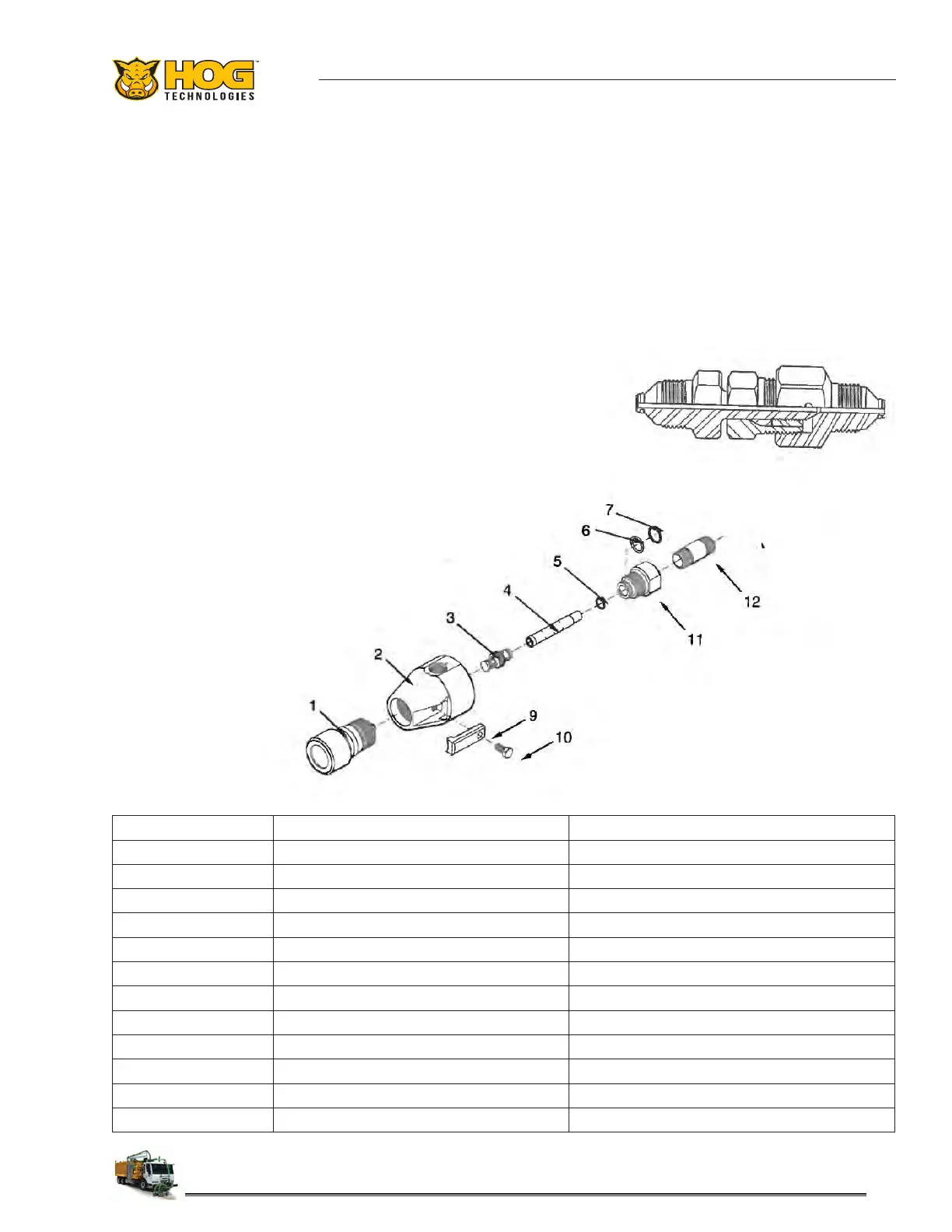

STRIPE HOG MANUAL BYPASS VALVE ASSEMBLY REPAIR
Manual Bypass Valve Repair
1. Remove outlet adapter (11). Pull cartridge (3) out. If
cartridge (3) is stuck together and not releasing pull the
pin and cartridge body apart to inspect the seats for cuts
and other damage. Replace the cartridge as necessary.
2. Check diuser (4) for damage or wear from bypass water.
3. Check all O-rings, replace any that are damaged. Lubri-
cate all O-rings with silicone lubricant.
4. Replace cartridge (3) and reassemble to the bypass valve
body (2) making sure to anti-seize all stainless steel
threads.
ITEM PART NUMBER DESCRIPTION
1 K52145 Adjustment Knob
2 K53714 Body
3 K53726 Cartridge
4 K53727 Diuser
5 K26453 O-ring
6 K27642 O-ring
7 K53725 Backup Ring
9 K50796 Latching Arm
10 K25594 CapScrew
11 K53720 Outlet Adapter
12 K27645 Nipple
Not Shown K25933 Outlet Hose (Order in Feet)
