Faults Screen
The Faults screen displays any fault condition that
exists in the system. When a fault exists, red LED
lights will ash on the screen to alert the operator
that a fault has occurred.
Use the following procedure to navigate to
the Faults screen when a red LED light is
ashing:
1. Press the NEXT button to navigate to the faults
screen where a description of the fault or faults
will be displayed.
2. Press the DOOR button to return to the Main
screen.
For additional information on the PLC System
refer to the manufacturer’s User Guide included
with this manual.
2.14 Skip Meter, Skip Speed
Remote Control & Video System
Skip Meter
Most trucks are equipped with a “Skip Meter” that
records the distance traveled while in Operate
Mode. When the meter is activated, an inductive
sensor records the revolutions of the truck drive
shaft and converts the readings into linear feet or
meters. The data is recorded and saved until the
operator deletes it.
There are two toggle switches on the front of the
meter. One toggle switch turns the meter ON or
OFF, the other toggle switch is used to start the
meter when blasting operations begin and stop
the meter when operations stop or are paused.
Menu buttons select the meter to read in feet or
meters and various recording and data modes.
An operating manual for the Skip Meter has been
included with your Stripe Hog that provides de-
tailed information on its operation and available
data modes.
Skip Speed Remote Control
The skip speed remote control is a handheld con-
trol connected to the joystick console. The control
allows the operator to temporarily override the
Truck Speed setting on the joystick console and
increase truck speed between dashed painted
lines to increase productivity while in Operate
Mode. The control is equipped with a Skip Speed

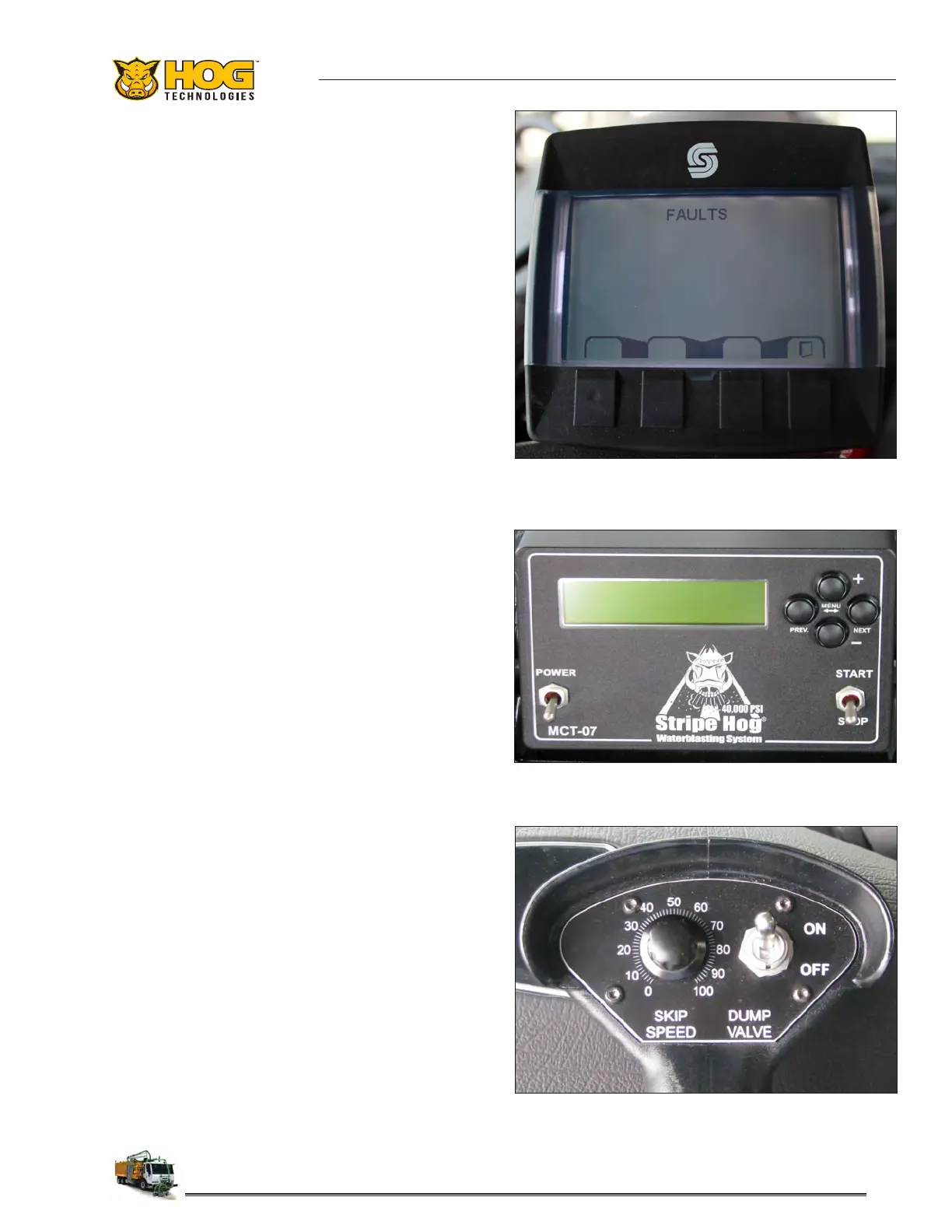

Faults Screen - No Faults Displayed
Skip Meter
Skip Speed Remote Control
Skip Speed Dial & Dump Valve Switch
