Stripe Hog Systems
3. To change to Potentiometer Mode (Manual
Mode), press the POT button at the bottom
of the screen. The selected mode is now dis-
played on the screen.
4. Press the DOOR (Exit) button to return to the
Main screen.
5. With the Main screen displayed, press the ON/
OFF button to turn spray bar rotation ON or
OFF.
Maximum Spray Bar Rotation Speed
The operator can set the maximum RPM for each
spray bar independently using the Motor 1 and
Motor 2 Set RPM Screens.
Use the following procedure to navigate to
“Motor Set RPM” screens and set max RPM:
1. Press the NEXT button at the bottom of the
screen until the Motor 1 or Motor 2 screen is
displayed.
2. Use the UP/Down arrows to raise or lower the
motor speed to the desired RPM. The RPM
will increase or decrease 25 RPM each time
an arrow button is pressed.
3. Press the DOOR (Exit) button to return to the
Main screen.
Once the maximum RPM has been set, spray
bar speed is controlled simultaneously using the
control UP/DOWN buttons on the PLC or the Head
Rotation speed dial on the joystick console. Spray
bar RPM will increase until each spray bar reaches
the preset maximum RPM. For example; if the
left spray bar maximum RPM is set to 1000 and
the right spray bar RPM is set to 2000, the speed
of both spray heads will increase simultaneously
until the left spray head reaches 1000 RPM. As the
speed is increased, the left spray bar will stabilize
at 1000 RPM and the right spray bar RPM will
continue to increase until it reaches 2000 RPM.
When spray bar speed is lowered, only the right
spray bar with the highest limit will slow down until
the limit of the slower limit for the left spray bar
(1000 RPM) is reached, then both will continue
slow down at the same rate.

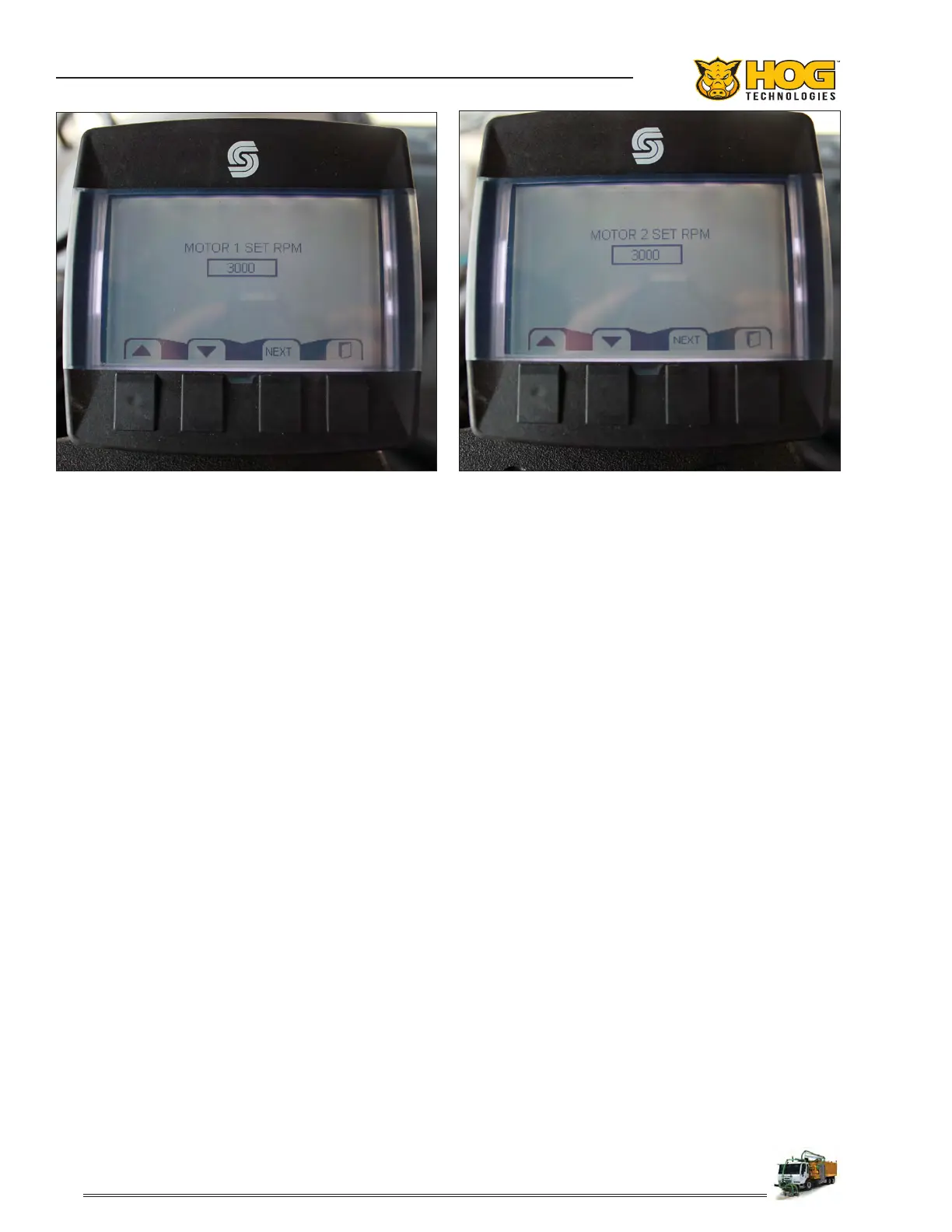

Motor 1 Set RPM Screen Motor 2 Set RPM Screen
