Stripe Hog Systems

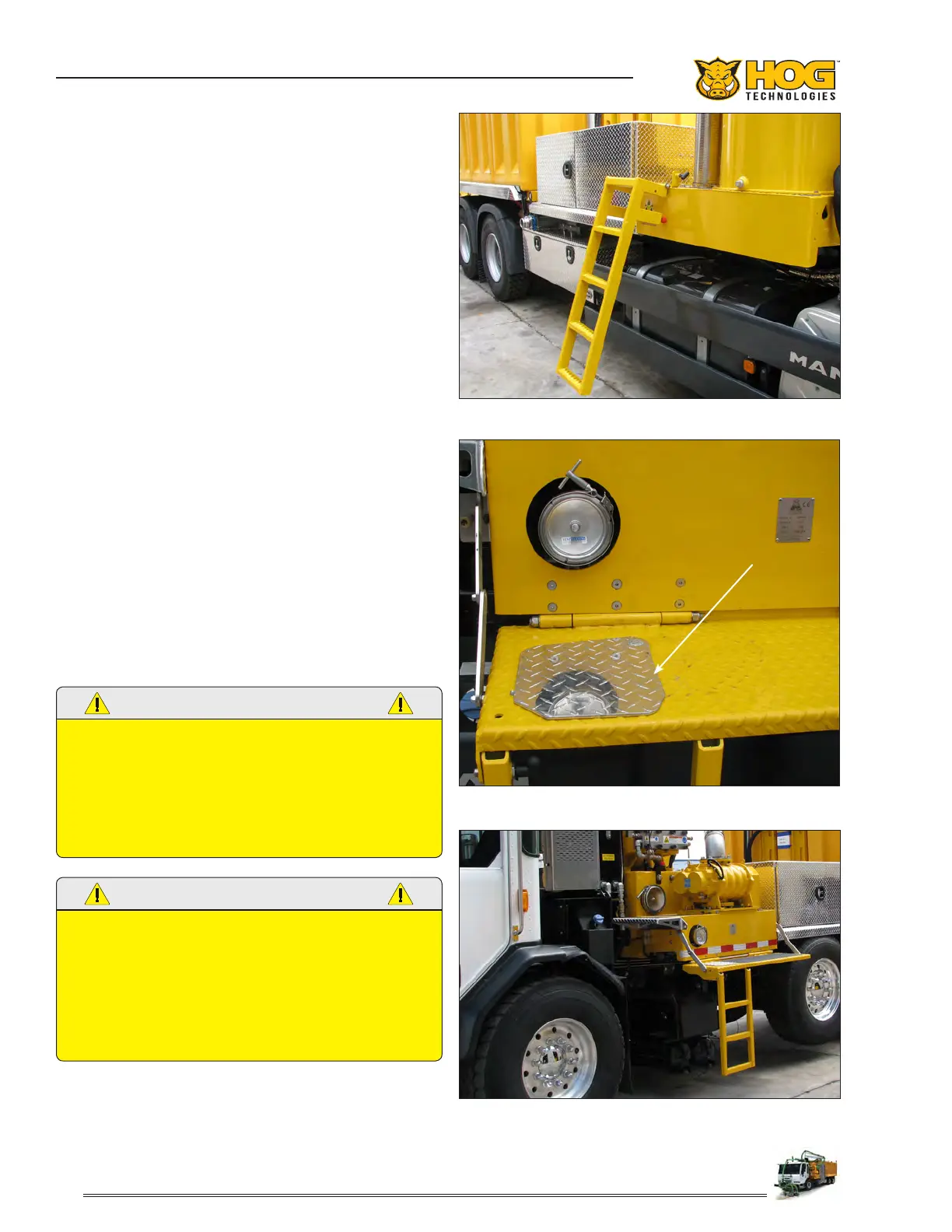

2.20 Inspection Platform, Access
Ladders & Air Hose Connection
Ladder
A ladder on the right side of the unit provides ac-
cess to the waterblasting components located on
the chassis between the water tank and the truck
cab. The ladder is hinged and has a spring loaded
safety pin that locks the ladder in the stored posi-
tion. To use the ladder, release the safety pin and
rotate the ladder to the down position. Return the
ladder to the stored position and secure it with
the safety pin when service or inspections are
complete.
Inspection Platform and Ladder
A folding inspection platform with an integrated
ladder provides access to the waterblasting equip-
ment on the left side of the unit. The inspection
platform is equipped with a hinged lter access
plate that opens to provide access to the one
micron water lter when the platform is folded.
Always make sure the access plate is open when
the platform and ladder are folded and closed
when the platform and ladder are down.
Return the ladder and platform to the stored
position with the access plate open and secure it
with the safety pin when service or inspections
are complete.
TO AVOID POSSIBLE INJURY TO PERSONNEL, ALWAYS
MAKE SURE THE FILTER ACCESS PLATE IS CLOSED
WHEN THE INSPECTION PLATFORM AND LADDER ARE
DOWN. A PERSON WORKING ON THE PLATFORM COULD
ACCIDENTALLY PUT A FOOT INTO THE OPEN ACCESS PORT
INJURING A FOOT OR ANKLE OR CAUSING A FALL IF THE
PLATE IS NOT CLOSED.
ALWAYS RETURN THE LADDERS AND PLATFORM TO THE
STORED POSITION AND LOCK THEM WITH THE SAFETY
PIN BEFORE OPERATING THE TRUCK. THE LADDER AND
INSPECTION PLATFORM STICK OUT FROM THE SIDE OF
THE VEHICLE AND CAN CAUSE DAMAGE TO THE LADDER,
PLATFORM, TRUCK OR OTHER VEHICLES IF THE TRUCK
IS OPERATED WITH INSPECTION PLATFORM OR ACCESS
LADDER DOWN.
Inspection Platform Access Plate Closed
Right Side Access Ladder
Inspection Platform & Ladder Folded Down
