162
45
46
36
27
40
30
44
56
3
32
31
33
35
50
34
47
38
37
59
28
49
48
54
53
52
51
39
43
42
57
29
61
27
USE ONLY ACCORDING TO ENGINEERING RECOMMENDATIONS
60
62
41
55
58
67
68
65
66
63
64
69
70
73

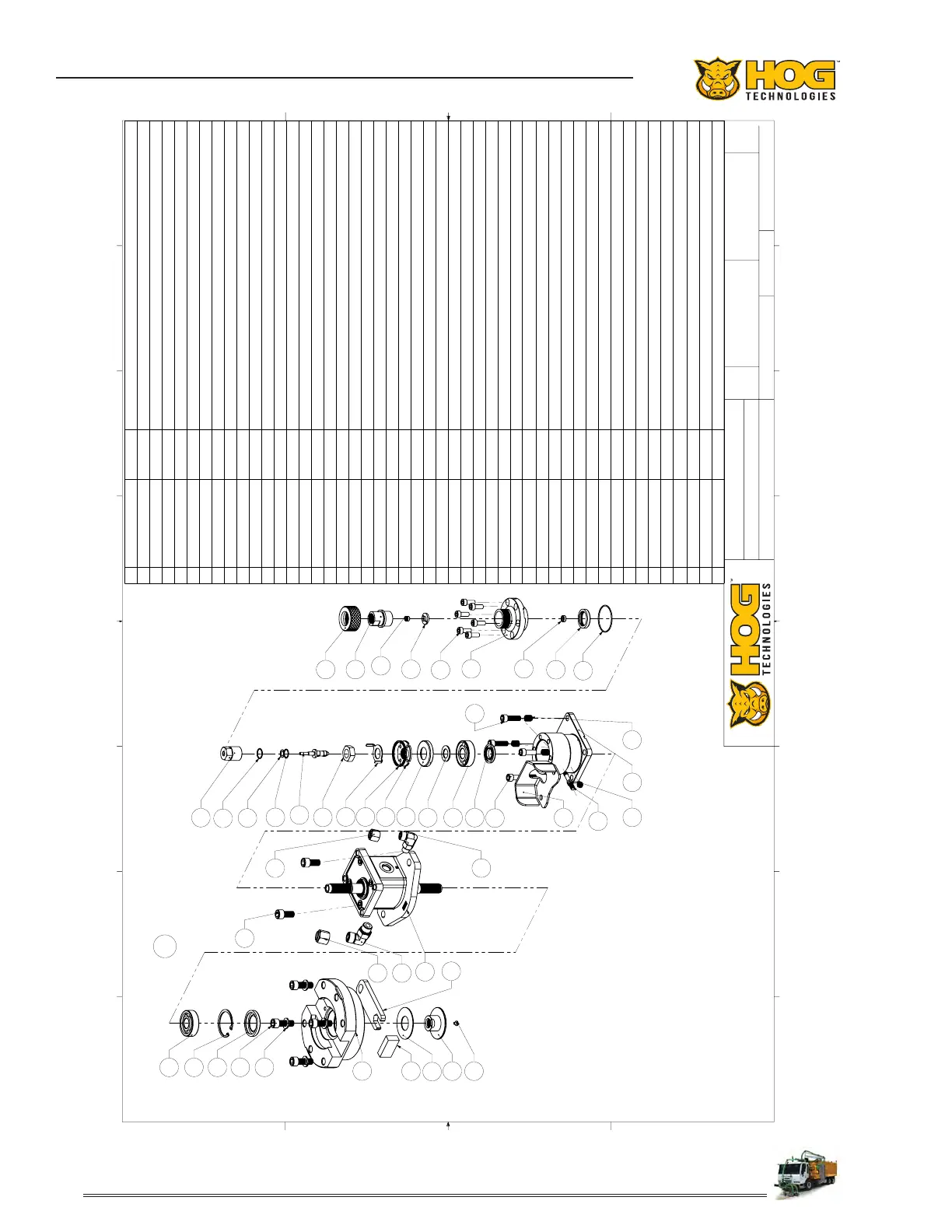

ITEM
NO.
20025-001C/QTY.
PART NUMBER
DESCRIPTION
1
1
20026-001
MOTOR, THRU SHAFT, HOG HEAD, ROTATION, CASAPPA
2
1
37037
ADAPT, 90, 8X8, MORB/MORS
3
1
37057
ADAPT, 90, 6X6, MORB/MORS
4
1
37507
CAP, 6, FORS
5
1
37508
CAP, 8, FORS
6
1
50097
SEAL, FELT, GASKET, DIRT .063 THICKNESS
7
1
50098-001
DETAIL, NUT, SWIVEL
8
1
50099-001
DETAIL, ADAPTER, SWIVEL, SEAL
9
1
50100-001
DETAIL, ADAPTER, FLANGE, THRU SHAFT, HOG HEAD
10
1
50101-001
DETAIL, HOUSING, THRUST ASSEMBLY, THRU SHAFT, HOG HEAD
11
1
50102-001
DETAIL, COVER, THRUST ASSEMBLY, THRU SHAFT, HOG HEAD
12
1
50103
DETAIL, SHIELD, DIRT, THRU SHAFT, HOG HEAD
13
1
50105-001
DETAIL, TIT, SWIVEL, HOG HEAD 0.0860 BORE
14
1
50106-001
DETAIL, NUT, GLAND, THRU SHAFT, HOG HEAD
15
1
50107-001
DETAIL, NUT, SEAL, GREASE, THRU SHAFT, HOG HEAD
16
1
52052-001
SEAL, SWIVEL
17
1
52100
RING, BACKUP, BRASS
18
2
52101-001
FILTER, DEBRIS, WRECH SLOT, THRU-SHAFT
19
1
52102-001
SEAL, BRASS BUTTON
20
6
60135
SCREW, SHCS, M8 x 1.0 x 20mm, 316 SS
21
1
60146
FITTING, ZERK, GREASE, M8 X 1 MALE, 14.9MM METRIC SS
22
1
60153
SEAL, UPPER, SWIVEL SHAFT
23
1
60158
SEAL 20 X 38 X 5MM
24
1
60159
SEAL 28 X 38 X 7MM
25
1
60160
SEAL 31 X 52 X 7MM
26
1
60161
SEAL 25 X 52 X 8MM
27
1
60266-001
WASHER, BRASS, COMPRESSION, SWIVEL TIT .375in ID x .625in OD. x .025in Thick Rockwell B77
28
1
60950
BEARING, ANGULAR CONTACT BALL, 20x52x15 MED 7300WN SERIES
29
1
60951
BEARING, RADIAL, 20 X 52 X 15, TWO SEALS
30
1
60952
RING, INTERNAL RETAINING, STEEL, 52MM
31
4
67048
HELICAL INSERT, 3/8-16 X 9/16 LONG,18-8 STAINLESS
32
1
68290
PROXIMITY, SWITCH, METALIC - OBJECT W/ MALE PLUG 3 WIRE, 8MM DIA. SS, 1.5MM Range
33
1
70153-001
FABRICATION, WASHER, COUNTER, THRU SHAFT, HOG HEAD
34
1
70837
NUT, JAM, 3/4-16 SS
35
1
71155-001
WRENCH, 3/4 SIZE, THRU SHAFT ASSEMBLY
36
1
72317-001
FABRICATION, GUARD, PROXIMITY SENSOR, THRU-SHAFT
37
1
80044-001
WELMENT, TOOL HOGHEAD, ASSEMBLY, THRU SHAFT
38
2
90000-1333
SCREW, SHCS, 3/8"-16 X 1", SS
39
2
90000-1360
SHCS, 3/8-16 X 1-1/4, SS
40
2
90001-0711
SCREW, SHCS, M12-1.75 X 25MM, SS
41
4
90001-0713
SHCS, M12-1.75 X 35MM, 18-8 SS
42
4
90075-0010
SPLIT LOCK WASHER, M12, 18-8 SS
43
1
90080-0220
SHIM, ROUND, 3/4 X 1-1/4 X .075
44
1
90092-1005
O-Ring AS568A Dash Number 015 (Viton) 9/16" x 11/16" x 1/16 Width
45
1
90092-1007
O-RING, SILICONE, 11/16" ID X 13/16" OD X 1/16"Ø, AS568A DASH NUMBER 017
46
1
90092-1023
O-RING, 2 X 2-1/8 X 1/16 WIDTH, SILICONE (AS568A)
47
1
90095-0281
O-RING, SEAL, DOUBLE, 1-3/4 X 2 X 1/8 WIDTH VITON (AS568A)
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
2
1
SIZE
B
ENGINEERING PART NUMBER:
REV
20025-001C
H
DRAWN
DG
DG
CHECKED
DG
ENG APPR.
WGT: 20.42 LBS
SCALE: 1:5
SHEET 2 OF 4
DESCRIPTION
ASSEMBLY, HEAD, THRU,
SHAFT, HOG HEAD
