Stripe Hog Systems
NOTICE:
THE HYDRAULIC SYSTEM MUST BE ENGAGED AND THE
HOG ARM RAISED TO RELIEVE THE STRAIN ON THE LOCK
PIN BEFORE THE ARM OR BLASTING HEAD LOCKS CAN
BE RELEASED. ADDITIONALLY, THE LOCK PIN HANDLES
SHOULD BE SECURED IN THE LOCKED POSITION WITH
A PLASTIC TIE WRAP OR OTHER TYPE OF FASTENER TO
ENSURE IT CANNOT ACCIDENTALLY RELEASE WHILE
DRIVING. MAKE SURE THE PINS ARE PLACED IN THE
STORAGE PORTS FOR SAFE KEEPING WHEN THEY ARE
REMOVED TO OPERATE THE ARM AND BLASTING HEADS.
Hog Arm Slide Track (Optional)
An optional slide track Hog Arm mounting system
is an available option that enables the operator to
manually move the arm to either side of the truck
or any place in between. The Hog Arm is mounted
to a special chassis plate that rides on heavy duty
rollers and slide tracks on the front of the chassis.
A quick release T-handle lock pin secures the arm
in the selected position.
To slide the arm to a dierent position, lower the
arm to the full down position with the blasting
head wheels on the surface. Activate Float Mode
to eliminate hydraulic up or down pressure, then
remove the pin and slide the arm and blasting
head to the desired position. Secure the assembly
with the lock pin.
Refer to the Operation section for additional in-
structions on operating the Hog Arm slide track
system.

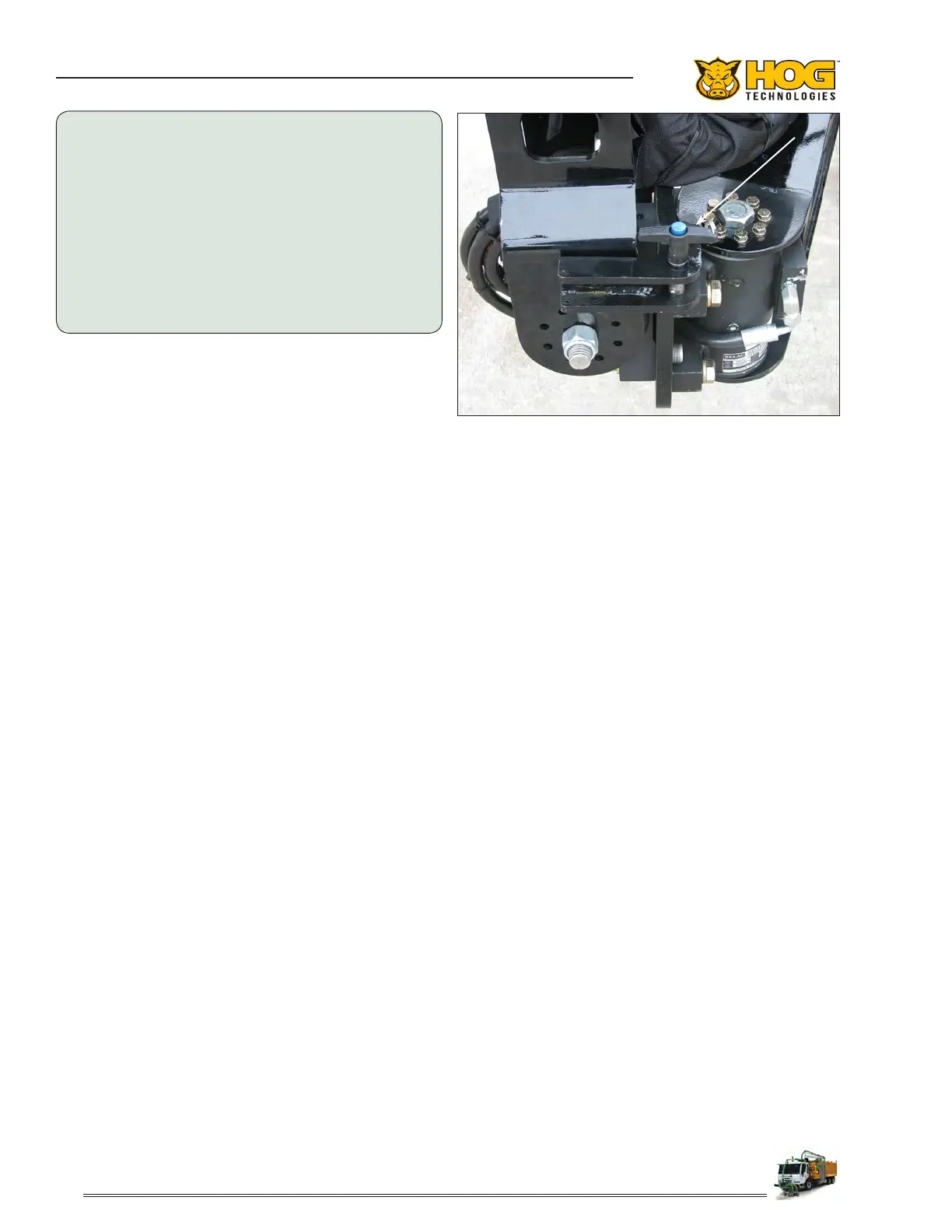

Arm T-Handle Pin Stored In Storage Port
To Next Page
