Stripe Hog Systems
Truck Speed Dial
Controls the speed of the truck while in Operate
Mode. Rotating the dial clockwise increases speed
and rotating it counterclockwise reduces speed.
Setting the Truck Speed dial to 0 will stop the
truck motion.
Forward/Reverse Rocker Switch
A momentary rocker switch that selects the truck
direction of travel by shifting the hydrostatic drive
system while the unit is in Operate Mode. (Hy-
drostatic drive engaged.) Travel direction can be
changed without hesitation at speeds of up to 30
feet per minute.
NEVER SELECT A DIRECTION OF TRAVEL WHILE THE
TRUCK IS STOPPED UNLESS THE SPEED DIAL IS
SET TO ZERO. SELECTING A DIRECTION WITH THE
SPEED DIAL SET ABOVE 0 COULD CAUSE THE TRUCK
TO SURGE UNEXPECTEDLY RESULTING IN DAMAGE
TO EQUIPMENT, PROPERTY DAMAGE OR INJURY AND
EVEN DEATH TO PERSONNEL.
Float Mode Switch
Activates and deactivates the oat mode feature
that enables the Hog Head to oat freely over
uneven road surfaces. A green LED light in the
switch indicates that Float Mode is engaged.
Water and Gearbox Reset Switch
A momentary switch that resets the safety cutout
system that disengages the 40K clutch and the
waterblasting system when a low charge water
pressure, low OMSI lubrication pump pressure,
low gearbox uid or high uid temperature condi-
tion is detected. Once the reset button is pressed,
waterblasting and hydrostatic drive systems can
be reactivated and normal operations can resume.
If the fault that caused the cutout system to acti-
vate persists, the unit will operate for 10 seconds
before the cutout system disengages the system
again. The fault must be found and corrected
before operations can resume.
Gearbox Temp/Level/Charge Water Lights
Red LED lights indicating the condition that caused
the safety cutout system to activate and disengage
the 40K clutch and waterblasting system.
• Gearbox Temp/Level light illuminates when
a low uid level or high temperature uid
condition caused the waterblasting and
hydrostatic drive system to be disengaged.
• Charge Water light illuminates when a low
water level in the clean water tank, clogged
lters or a charge pump problem caused
the waterblasting and hydrostatic drive
system to be disengaged.
High Pressure Gauge
A digital gauge that monitors the ultra high water
pressure to the blasting heads.
Charge Pressure Gauge
A digital gauge that monitors the charge water
pressure at the ultra high pressure pump intake.

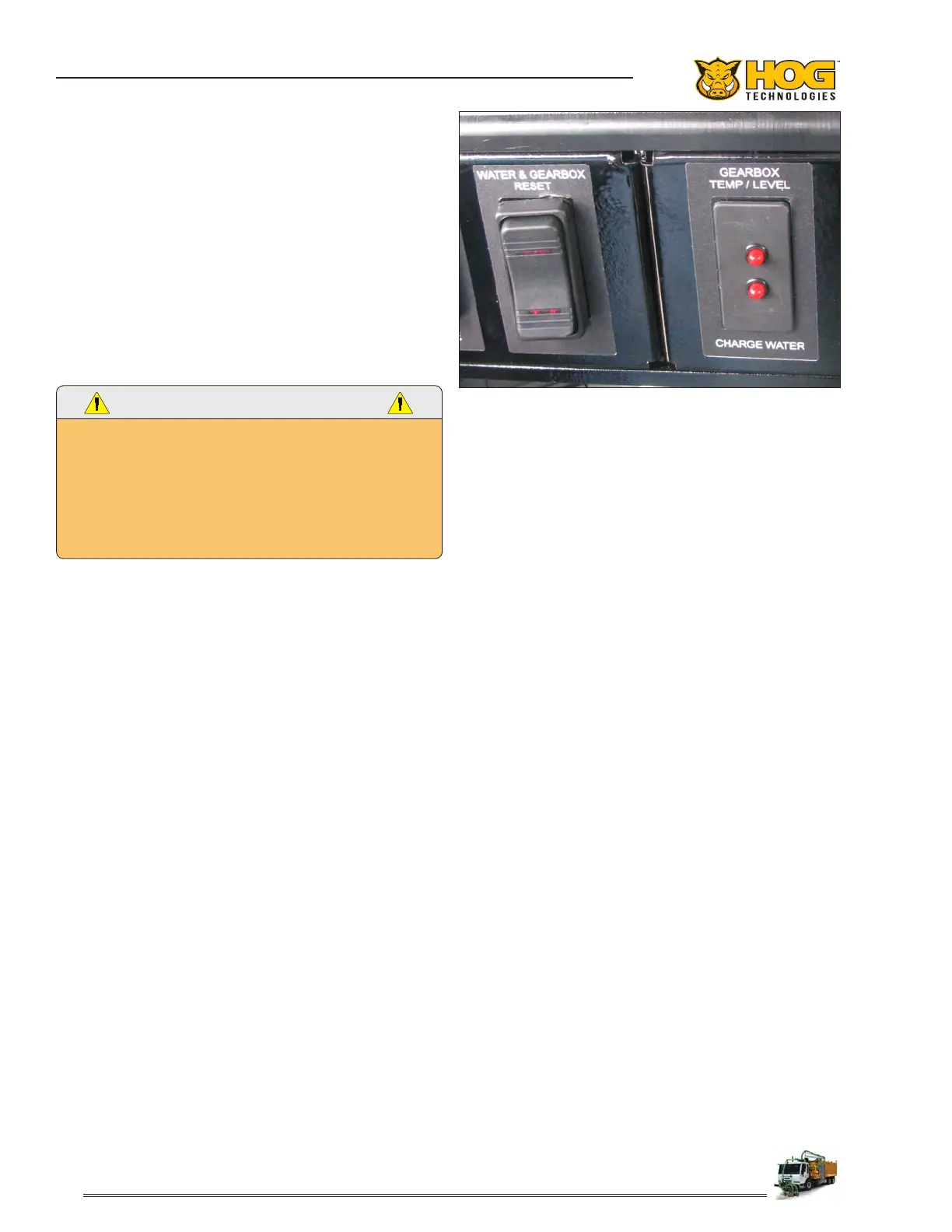

Water & Gearbox Reset Switch
Gearbox Temp/Level & Charge Water Warning Lights
