HT66F0175/HT66F0185
A/D Flash MCU with EEPROM
HT66F0175/HT66F0185
A/D Flash MCU with EEPROM

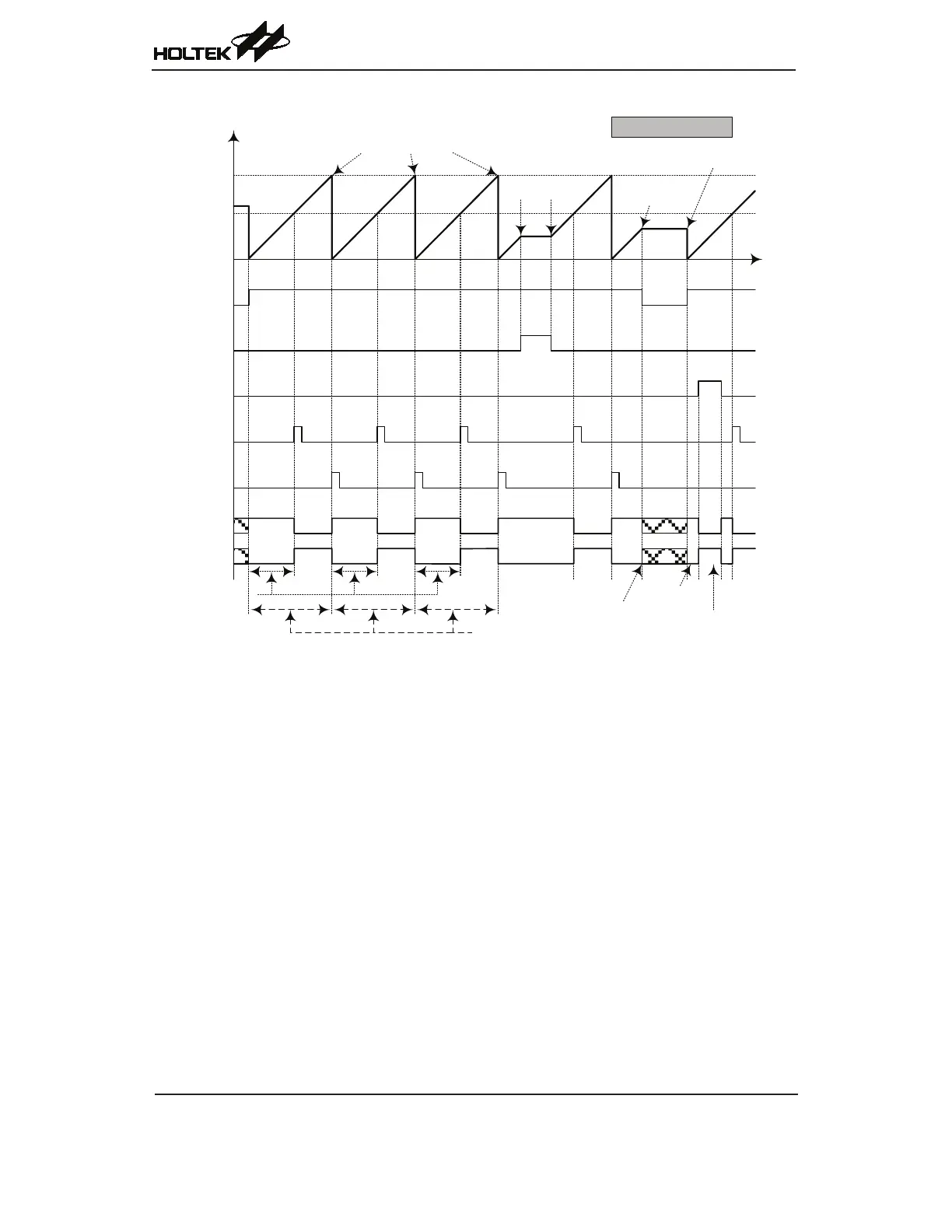

Counter Value
CCRP
CCRA
TnON
TnPAU
TnPOL
CCRP Int. Flag
TnPF
CCRA Int. Flag
TnAF
TMn O/P Pin
(TnOC=1)
Time
Counter cleared
by CCRP
Pause
Resume
Counter Stop if
TnON bit low
Counter Reset when
TnON returns high
TnM [1:0] = 10
PWM Duty Cycle
set by CCRA
PWM resumes
operation
Output controlled by
other pin-shared function
Output Inverts
When TnPOL = 1
PWM Period
set by CCRP
TMn O/P Pin
(TnOC=0)
PWM Mode
Note:1.ThecounterisclearedbyCCRP.
2.AcounterclearsetsthePWMPeriod
3.TheinternalPWMfunctioncontinuesrunningevenwhenTnIO[1:0]=00or01
4.TheTnCCLRbithasnoinuenceonPWMoperation
5.n=0or1forHT66F0175whilen=1forHT66F0185
