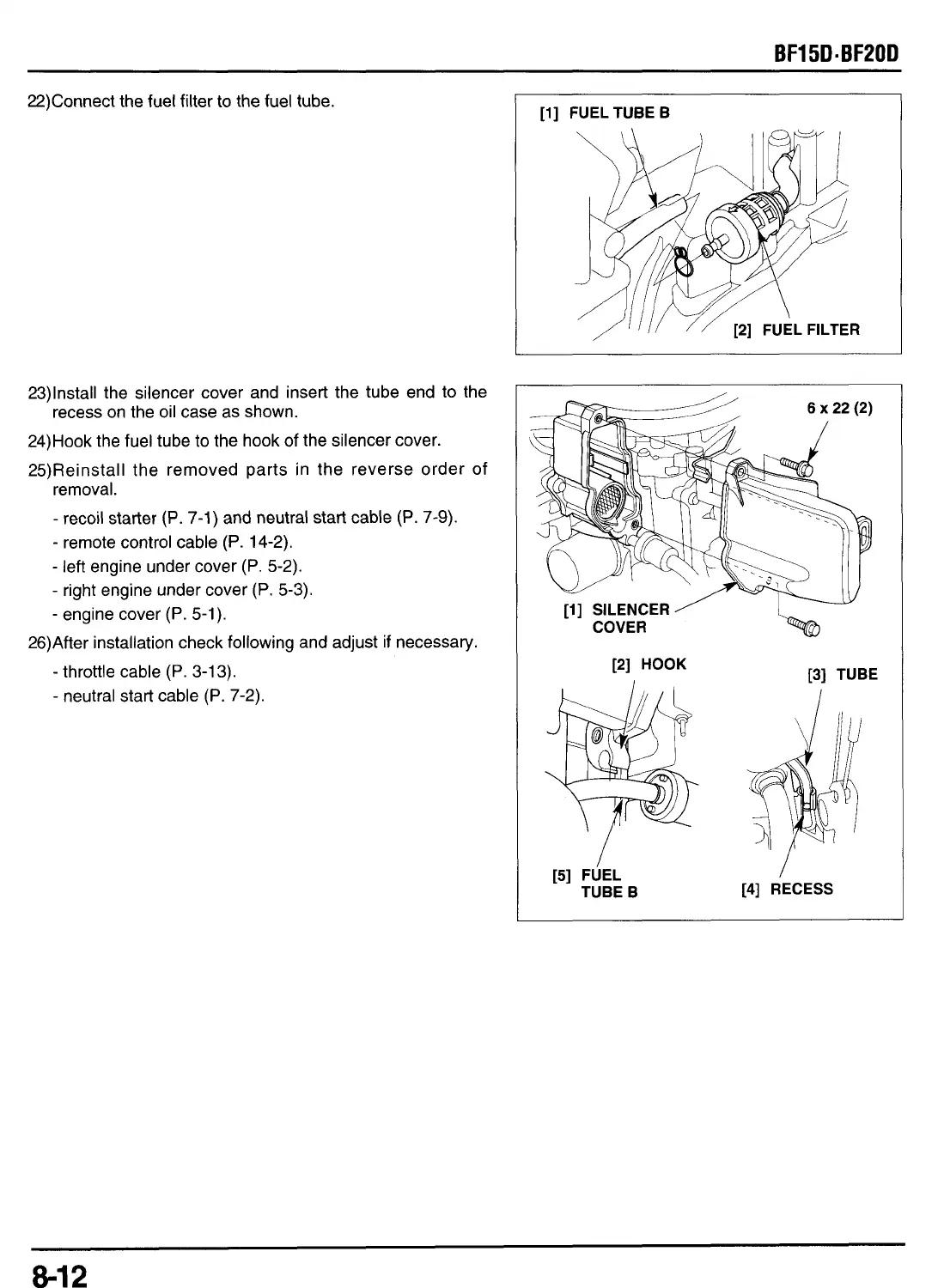

22)Connect the fuel filter to the fuel tube.
23)lnstall the silencer cover and insert the tube end
to
the
24)Hook the fuel tube
to
the hook
of
the silencer cover.
25)Reinstall the removed parts in the reverse order of
removal.
-
recoil starter
(P.
7-1) and neutral start cable
(P.
7-9).
-
remote control cable
(P.
14-2).
-
left engine under cover
(P.
5-2).
-
right engine under cover
(P.
5-3).
-
engine cover
(P.
5-1).
-
throttle cable
(P.
3-13).
-
neutral start cable
(P.
7-2).
recess on the oil case as shown.
26)After installation check following and adjust if necessary.
[l]
FUEL TUBE B
[3]
TUBE
[2]
HOOK
151
FUEL
TUBE B
I
[4]
RECESS
8-12
