BF15D-BF20D

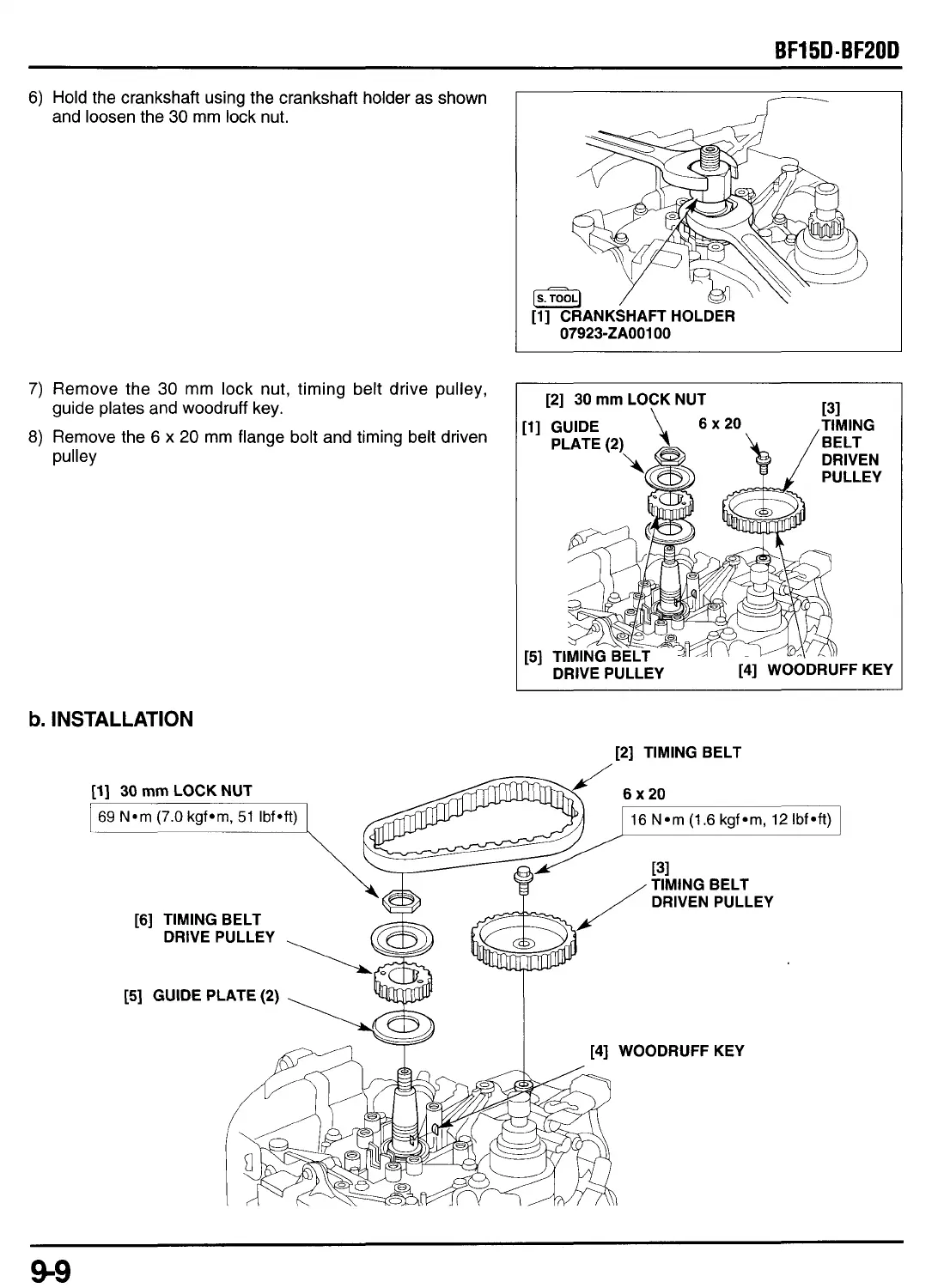

6) Hold the crankshaft using the crankshaft holder as shown
and loosen the
30 mm lock nut.
7) Remove the 30 mm lock nut, timing belt drive pulley,
8) Remove the 6 x 20 mm flange bolt and timing belt driven
guide plates and woodruff key.
pulley
\
[2] 30 mm LOCK NUT
b. INSTALLATION
[2] TIMING BELT
[6] TIMING BELT
DRIVE PULLEY
[5] GUIDE PLATE
(2) ,
16 N*m (1.6 kgf*m, 12
/ TIMING BELT
7 / DRIVEN PULLEY
WOODRUFF KEY
